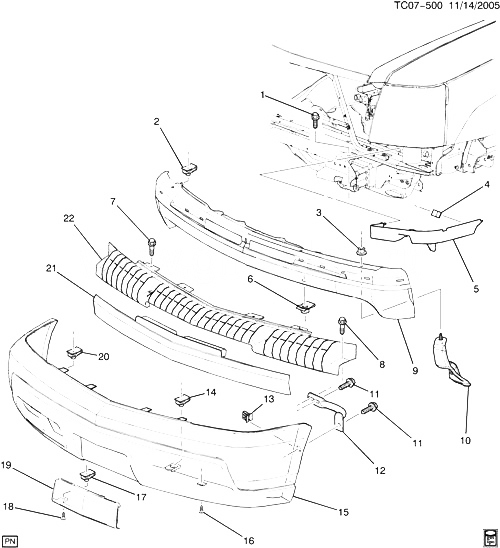

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11518298 |
БОЛТ, HFH, M12X1.75X42.5, 24.37 THD, 28 OD, 10.9, 7114, MACH, MAT-PT (FRT BPR IMP BAR) |
|
2002-2006 |
02 |
| 002 |
25605716 |
ГАЙКА, FRT BPR FASCIA (13.8 X 14.9, 15.3) (U-SHAPED) (8.133) |
CK1 (06-36) (VT4, Y91, Z75) |
2002-2006 |
03 |
| 003 |
11516781 |
ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (PART OF 9) (8.917)
|
2002-2006 |
02 |
|
| 004 |
15037290 |
RETAINER, FRT BPR FIL (PUSH IN) (PART OF 5) (BLACK) (STEEL) (S-CLIP) (USED W/15035437, 8, 15049381) |
CK1 (06-36) (Y91, Z75) |
2002-2006 |
02 |
| 005 |
15743539 |
FILLER, FRT BPR (INCLS 4)
| CK1 (06-36) (Y91, Z75) |
2002-2006 |
01 |
|
| 005 |
15743540 |
FILLER, FRT BPR (INCLS 4) |
CK1 (06-36) (Y91, Z75) |
2002-2006 |
01 |
| 006 |
11516781 |
ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (PART OF 9) (8.917)
|
2002-2006 |
02 |
|
| 007 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (FRT BPR IMP BAR) (ACDelco #11570082)
|
2002-2006 |
04 |
|
| 008 |
11517517 |
БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (FRT BPR FASCIA) |
|
2002-2006 |
04 |
| 009 |
15793917 |
BAR, FRT BPR IMP (INCLS 3, 6, 10) (CTR BRKT REMOVED, NOT USED FOR SERVICE) |
CK1 (06-36) (VT4, Y91, Z75) |
2002-2006 |
01 |
| 010 |
|
BRACE, FRT BPR IMP BAR (PART OF 9) |
|
2002-2006 |
|
| 011 |
11516845 |
БОЛТ, HFH, W/FL WA, 10X1.5X35, 22THD, 22.3 O.D., P PT, 9.8, 7114M (FRT BPR IMP BAR BR)
|
2002-2006 |
06 |
|
| 012 |
15184116 |
BRACE, FRT BPR IMP BAR (W/ PLATE) (PENCIL BRACE) |
CK159 (36) (Y91) |
2005-2006 |
01 |
| 012 |
15184117 |
BRACE, FRT BPR IMP BAR (W/ PLATE) (PENCIL BRACE) |
CK159 (36) (Y91) |
2005-2006 |
01 |
| 012 |
15705657 |
BRACE, FRT BPR IMP BAR (PENCIL BRACE)
| CK157 (06) |
2004-2006 |
01 |
|
| 012 |
15705657 |
BRACE, FRT BPR IMP BAR (PENCIL BRACE)
| CK159 (06) (EXC P96) |
2004-2006 |
01 |
|
| 012 |
15705657 |
BRACE, FRT BPR IMP BAR (PENCIL BRACE)
| K1 (36-43) (Y91) |
2005-2006 |
01 |
|
| 012 |
15705658 |
BRACE, FRT BPR IMP BAR (PENCIL BRACE)
| CK157 (06) |
2004-2006 |
01 |
|
| 012 |
15705658 |
BRACE, FRT BPR IMP BAR (PENCIL BRACE)
| CK159 (06) (EXC P96) |
2004-2006 |
01 |
|
| 012 |
15705658 |
BRACE, FRT BPR IMP BAR (PENCIL BRACE)
| K1 (36-43) (Y91) |
2005-2006 |
01 |
|
| 012 |
88944245 |
BRACE, FRT BPR IMP BAR (INNER-BRACES BEHIND BPR BAR)
| CK1 (06-36) (VT4, Y91, Z75) |
2005-2006 |
01 |
|
| 012 |
88944246 |
BRACE, FRT BPR IMP BAR (INNER-BRACES BEHIND BPR BAR)
| CK1 (06-36) (VT4, Y91, Z75) |
2005-2006 |
01 |
|
| 013 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (FRT BPR FASCIA)
|
2002-2006 |
05 |
|
| 014 |
11509005 |
ГАЙКА, M6X1 (FRT FOG LP) |
|
2002-2006 |
04 |
| 015 |
88937206 |
FASCIA, FRT BPR (PAINT TO MATCH) |
CK1 (06-36) (VT4, Y91, Z75) |
2002-2006 |
01 |
| 016 |
11570498 |
БОЛТ, HWH W/FL WA, M4.2X1.41X20, 11.4 THD, 17 OD, ISO 2702 STL , GMW4205, T (FRT BPR FASCIA) |
|
2002-2006 |
11 |
| 017 |
11516835 |
NUT ASSEMBLY METRIC HX FLG AND RETAINER, M12X1.75 (FRT BPR IMP BAR) (8.921)
|
2002-2006 |
02 |
|
| 018 |
11516845 |
БОЛТ, HFH, W/FL WA, 10X1.5X35, 22THD, 22.3 O.D., P PT, 9.8, 7114M (FRT BPR IMP BAR)
|
2002-2006 |
04 |
|
| 019 |
19122316 |
COVER, FRT LIC PLT MT TR (PAINT TO MATCH) |
CK1 (06-36) (VT4, Y91, Z75) |
2002-2006 |
01 |
| 020 |
11513599 |
ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (FRT BPR FASCIA) (ACDelco #11513599) |
|
2002-2006 |
12 |
| 021 |
15047412 |
INSERT, FRT BPR FASCIA |
CK1 (06-36) (VT4, Y91, Z75) |
2002-2006 |
01 |
| 022 |
15750636 |
SUPPORT, FRT BPR FASCIA |
CK1 (06-36) (VT4, Y91, Z75) |
2002-2006 |
01 |
