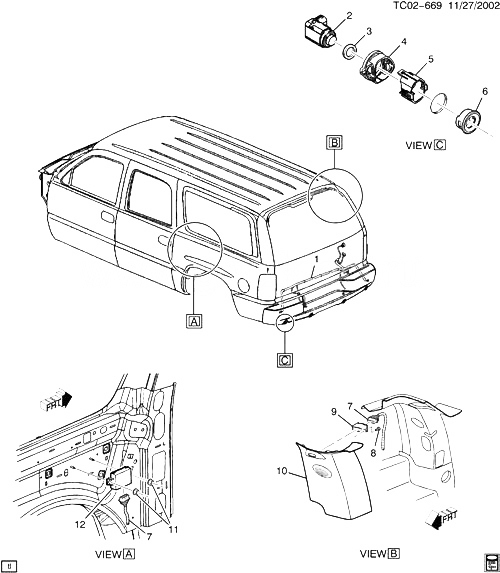

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, RR LIC PLT LP WRG (СМ. ГРУППУ 07.000 БАМПЕР ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2003-2006 |
|
| 002 |
|
SENSOR, RR OBJECT (*KIT1) |
|
2003-2006 |
|
| 003 |
|
RING, RR OBJECT SEN (*KIT1) |
|
2003-2006 |
|
| 004 |
|
RETAINER, RR OBJECT SEN (DECOUPLING) (*KIT1) |
|
2003-2006 |
|
| 005 |
|
ШЛАНГИ, RR OBJECT SEN (*KIT1) |
|
2003-2006 |
|
| 006 |
|
RETAINER, RR OBJECT SEN (ПРУЖИНА) (*KIT1) |
|
2003-2006 |
|
| 007 |
|
HARNESS, BODY WRG (СМ. ГРУППУ 12.000 HARNESS/BODY WIRING ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2003-2006 |
|
| 008 |
|
БОЛТ, TELLTALE HSG (PART OF 10) |
|
2003-2006 |
|
| 009 |
15766504 |
TELLTALE, INFO CTR (PART OF 10) (ACDelco #15766504) |
K159 (06) (Z75) |
2003-2006 |
01 |
| 010 |
15145239 |
MOLDING, BODY RR COR UPR GARN (INCLS 8, 9) (SHALE) |
K1 (06) (ULT, 15I) |
2004-2006 |
01 |
| 010 |
93440595 |
MOLDING, BODY RR COR UPR GARN (INCLS 8, 9) (SHALE) |
K159 (06) (Z75, 15I) (EXC ULT) |
2004-2005 |
01 |
| 010 |
93440596 |
MOLDING, BODY RR COR UPR GARN (INCLS 8, 9) (PEWTER) |
K159 (06) (Z75, 92I) |
2003-2005 |
01 |
| 011 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR OBJECT ALARM MDL)
|
2003-2006 |
02 |
|
| 012 |
15187264 |
MODULE, RR OBJECT ALARM |
K1 (06-36) |
2003-2006 |
01 |
| K01 |
88891836 |
SENSOR KIT, RR OBJECT (INCLS 2-6) (CONSIST OF RETAINERS, ШЛАНГИ, RING SENSOR) (PAINT TO MATCH) (7.831)
| K1 (06-36) (Z75) |
2003-2006 |
04 |
|
| K01 |
88891836 |
SENSOR KIT, RR OBJECT (INCLS 2-6) (CONSIST OF RETAINERS, ШЛАНГИ, RING SENSOR) (PAINT TO MATCH)
| K1 (06-36) (Z75) |
2003-2006 |
04 |
|
