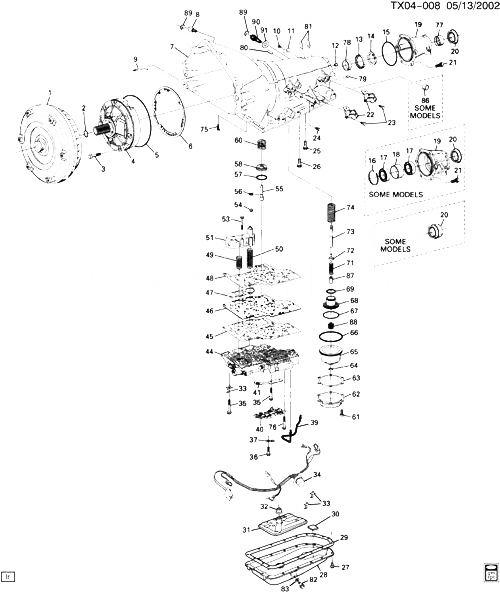

(TX04-008) - 2002-2006 CK2 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MN8) ЧАСТЬ 2 (4L85-E) CASE СОПРЯЖЕННЫЕ ДЕТАЛИ CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12491335 CONVERTER, TORQ (REMAN) CK2 (L18, MN8) 2005-2006 01
002 08661760 RING, TURB SHF FRT FLUID SEAL (ACDelco #8661760) CK2 (MN8) 2002-2006 01
003 24206031 БОЛТ, A/TRNS ГИДРОНАСОС (W/SEAL) (*KIT1, KIT2) (ACDelco #24206031) CK2 (MN8) 2002-2006 07
004 МАСЛОНАСОС, TRANS (СМ. ГРУППУ 04.000 МАСЛОНАСОС ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2002-2006
005 24210605 SEAL, A/TRNS ГИДРОНАСОС (O RING) (*KIT1, KIT2, KIT3) (ACDelco #24210605) CK2 (MN8) 2002-2006 01
006 08677782 GASKET, A/TRNS ГИДРОНАСОС (*KIT1, KIT2) (ACDelco #8677782) CK2 (MN8) 2002-2006 01
007 CASE, A/TRNS 2002-2006
008 24233366 FITTING, TRANS FLUID CLR PIPE (INCLS 89) (INCLS O-RING) (1/4-18 NPS THD) (QUICK CONN, NON BALL CK INCLS RETAINER, TRANS END) (STL BODY) (ACDelco #24233366) CK1, 2, 3 2002-2005 01
009 24200374 PIPE, A/TRNS VENT (ACDelco #24200374) CK2 (MN8) 2002-2006 01
010 08622361 PIN, A/TRNS N/PLT DRV (ACDelco #8622361) CK2 (MN8) 2002-2006 01
011 PLATE, A/TRNS NA 2002-2006
012 08675516 ORIFICE, LUB FLUID (4.105) (ACDelco #8675516) CK2 (MN8) 2002-2006 01
013 08675517 SEAL, OUTPUT SHF (*KIT1) (ACDelco #8675517) CK2 (MN8) 2002-2006 01
014 08675524 RING, OUTPUT SHF SEAL RET (4.133) (ACDelco #8675524) CK2 (MN8) 2002-2006 01
016 RING, PROP SHF FRT SLIP YOKE BRG RET (PART OF 19) 2002-2006
017 BEARING, PROP SHF FRT SLIP YOKE (PART OF 19) 2002-2006
018 SPACER, PROP SHF FRT SLIP YOKE BRG (PART OF 19) 2002-2006
021 11500830 БОЛТ, HEX M10PX1.5X30 9.8 PHOS (A/TRNS CASE EXTN) 2002-2006 06
022 24203876 SENSOR, A/TRNS INPUT SPD (INCLS SEAL) (4.337) (ACDelco #24203876) CK2 (MN8) 2002-2006 01
022 24203876 SENSOR, A/TRNS OUTPUT SPD (INCLS SEAL) (4.337) (ACDelco #24203876) CK2 (MN8) 2002-2006 01
022 24203876 SENSOR, A/TRNS INPUT SPD (INCLS SEAL) (4.337) (ACDelco #24203876) CK2 (MN8) 2002-2006 01
022 24203876 SENSOR, A/TRNS OUTPUT SPD (INCLS SEAL) (ACDelco #24203876) CK2 (MN8) 2002-2006 01
023 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (A/TRNS INPUT SPD SEN) 2002-2006 02
024 00444613 PLUG, HEX HD, 1/8-27 NPTF, STL (OIL PRESS TEST HOLE) (ACDelco #444613) 2002-2006 01
025 08661762 БОЛТ, CTR SUPT (3/8-16 X 1.07) (ACDelco #8661762) CK2 2002-2006 01
026 08686124 БОЛТ, 4TH CLU HSG (5/16-18X.96) (*KIT1) (ACDelco #8686124) CK2 (MN8) 2002-2006 01
027 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (A/TRNS FLUID PAN) 2002-2006 17
028 PAN, A/TRNS FLUID (*KIT5) 2002-2006
029 08677743 GASKET, A/TRNS FLUID PAN (ACDelco #8677743) CK2 (MN8) 2002-2006 01
030 08665830 MAGNET, A/TRNS FLUID PAN (4.105) (ACDelco #8665830) CK2 (MN8) 2002-2006 01
031 ФИЛЬТР, A/TRNS FLUID (*KIT4) 2002-2006
032 08656613 SEAL, A/TRNS FLUID FLTR (*KIT4) (ACDelco #8656613) CK2 (MN8) 2002-2006 01
033 08675539 CLIP, A/TRNS WRG HARN (4.265) (ACDelco #8675539) CK2 (MN8) 2002-2006 02
034 SENSOR, A/TRNS FLUID TEMP (PART OF HARNESS) 2004-2006
034 24229664 HARNESS, A/TRNS WRG (ACDelco #24229664) CK2 (L18, MN8) 2004-2006 01
034 24229664 HARNESS, A/TRNS WRG (2.480) (ACDelco #24229664) CK2 (L18, MN8) 2004-2006 01
035 11515262 БОЛТ, HFH, M6X1X55, 18THD, 14.2 O.D., 9.8, PC (MAN SHFT DTNT) 2002-2006 02
036 11503870 БОЛТ, HEX M6X1X35 10.9 PC (LUB FLUID PIPE RET) (ACDelco #11503870) 2002-2006 01
037 24204276 RETAINER, LUB FLUID PIPE (ACDelco #24204276) CK2 (MN8) 2002-2006 01
039 24204275 PIPE, FLUID (ACDelco #24204275) CK2 (MN8) 2002-2006 01
040 24222077 SWITCH, A/TRNS FLUID PRESS MAN VLV POSN (ACDelco #24222077) CK2 (MN8) 2002-2006 01
041 08684063 DETENT, MAN SHFT CK2 (MN8) 2002-2006 01
044 24224908 VALVE, CONT (W/BODY VLV) (ACDelco #24224908) CK2 (L18, MN8) 2004-2006 01
045 24204253 GASKET, C/VLV BODY SPCR PLT (*KIT1, KIT2) (ACDelco #24204253) CK2 (MN8) 2002-2006 01
046 24226217 PLATE, C/VLV BODY SPCR (ACDelco #24226217) CK2 (L18, MN8) 2004-2006 01
047 08661829 GASKET, 3RD 4TH CLU ACCUM HSG (*KIT1, KIT2) (ACDelco #8661829) CK2 (MN8) 2002-2006 01
048 24204268 GASKET, C/VLV BODY (*KIT1, KIT2) (ACDelco #24204268) CK2 (MN8) 2002-2006 01
049 08675634 ПРУЖИНА, 4TH CLU ACCUM PSTN (ACDelco #8675634) CK2 (MN8) 2002-2006 01
050 24200436 ПРУЖИНА, 3RD CLU ACCUM PSTN (ACDelco #24200436) CK2 (MN8) 2002-2006 01
051 08684220 ШЛАНГИ, 3RD 4TH CLU ACCUM (ACDelco #8684220) CK2 (MN8) 2002-2006 01
053 08675533 БОЛТ, 3RD 4TH CLU ACCUM HSG (SHORT) (ACDelco #8675533) CK2 (MN8) 2002-2006 06
054 00104918 BALL, 1/4 DIA, CHROME STL (SHFT DTNT) (ACDelco #104918) 2002-2006 01
055 PIN, INTER BAND PSTN (*KIT6) 2002-2006
056 RING, SERVO PSTN SPR RET RET (*KIT6) 2002-2006
057 08626423 SEAL, MAN 2-1 BAND SERVO PSTN (*KIT1, KIT6) (ACDelco #8626423) CK2 (MN8) 2002-2006 01
058 PISTON, MAN 2-1 BAND SERVO (*KIT6) 2002-2006
060 08623489 ПРУЖИНА, MAN 2-1 BAND SERVO PSTN CUSH (*KIT6) (ACDelco #8623489) CK2 (MN8) 2002-2006 01
061 08676000 БОЛТ, LOW REV BAND SERVO CVR (M8X1.25X20) (16.437) (ACDelco #8676000) CK2 (MN8) 2002-2006 06
062 24202282 COVER, LOW REV BAND SERVO (ACDelco #24202282) CK2 (MN8) 2002-2006 01
063 08675728 GASKET, LOW REV BAND SERVO CVR (*KIT1, KIT2) (4.109) (ACDelco #8675728) CK2 (MN8) 2002-2006 01
064 18015044 RING, EXT RET, M8 OR 5/16 DIA SHF (RR SERVO) (ACDelco #18015044) 2002-2006 01
065 24202985 PISTON, LOW REV BAND SERVO (ACDelco #24202985) CK2 (MN8) 2002-2006 01
066 08623430 SEAL, LOW REV BAND SERVO PSTN (*KIT1, KIT2) (ACDelco #8623430) CK2 (MN8) 2002-2006 01
067 RING, LOW REV ACCUM PSTN OTR FLUID SEAL (PART OF 68) 2002-2006
068 24205250 PISTON, LOW REV ACCUM (INCLS 67, 69) (W/RINGS) (ACDelco #24205250) CK2 (MN8) 2002-2006 01
069 RING, LOW REV ACCUM PSTN INR FLUID SEAL (PART OF 68) 2002-2006
071 08623666 ПРУЖИНА, LOW REV BAND SERVO PSTN (ACDelco #8623666) CK2 (MN8) 2002-2006 01
072 08623664 RETAINER, LOW REV BAND SERVO PSTN SPR (4.246) (ACDelco #8623664) CK2 (MN8) 2002-2006 01
073 24202577 PIN, LOW REV BAND SERVO PSTN (3.303 IN) (ACDelco #24202577) CK2 (MN8) 2002-2006 01
073 24202578 PIN, LOW REV BAND SERVO PSTN (3.359 IN) (ACDelco #24202578) CK2 (MN8) 2002-2006 01
073 24202579 PIN, LOW REV BAND SERVO PSTN (3.415 IN) (ACDelco #24202579) CK2 (MN8) 2002-2006 01
073 24202580 PIN, LOW REV BAND SERVO PSTN (3.331 IN) (ACDelco #24202580) CK2 (MN8) 2002-2006 01
073 24202581 PIN, LOW REV BAND SERVO PSTN (3.387 IN) (ACDelco #24202581) CK2 (MN8) 2002-2006 01
073 24202582 PIN, LOW REV BAND SERVO PSTN (3.443 IN) (ACDelco #24202582) CK2 (MN8) 2002-2006 01
073 24202583 PIN, LOW REV BAND SERVO PSTN (3.471 IN) (ACDelco #24202583) CK2 (MN8) 2002-2006 01
074 08655843 ПРУЖИНА, LOW REV ACCUM PSTN (ORANGE) (4.246) (ACDelco #8655843) CK2 (MN8) 2002-2006 01
075 08661834 SCREEN, TCC SOL VLV (4.122) (ACDelco #8661834) CK2 (MN8) 2002-2006 01
076 08676222 БОЛТ, VLV BODY (M6X1X55, 11.1 O.D.) (ACDelco #8676222) CK2 (MN8) 2002-2006 06
077 BUSHING, CASE EXTN (PART OF 19) 2002-2006
078 BUSHING, OUTPUT SHF 2002-2006
079 08661701 PLUG, A/TRNS ГИДРОНАСОС CVR (.263 O.D.) (ACDelco #8661701) CK2 (MN8) 2002-2006 01
080 PIN, MAN 2-1 BAND ANC 2002-2006
081 PIN, LOW-REV BAND ANC 2002-2006
082 PLUG, A/TRNS FLUID PAN DRN (*KIT5) 2002-2006
083 SEAL, A/TRNS FLUID PAN DRN PLUG (O RING) (*KIT5) 2002-2006
086 24237586 PLUG, A/TRNS OUTPUT SPD SEN HOLE (INCLSBRACKET O-RING) K2 (06-36) (MN8) 2005-2006 01
087 24202986 SPACER, LOW REV BAND SERVO PSTN PIN (ACDelco #24202986) CK2 (MN8) 2002-2006 01
088 24202987 ПРУЖИНА, 1-2 ACCUM (ACDelco #24202987) CK2 (MN8) 2002-2006 01
089 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 8) (EXPANDING ПРУЖИНА WIRE) (ACDelco #24205103) CK1, 2, 3 2002-2006 02
090 24233367 FITTING, TRANS FLUID CLR PIPE (INCLS 91) (1/4-18 NPS THD) (INCLS O-RING) (QUICK CONNECT) (STL BODY) (ACDelco #24233367) CK1, 2, 3 2002-2005 01
091 SEAL, TRANSMISSION REAR OIL COOLER PIPE (O-RING) (PART OF 90) 2002-2006
K01 24210954 TRANSMISSION KIT, AUTO (SERV OVERHAUL W/PLT, GSKT, SEAL) (INCLS 3, 5, 6, 13, 15, 26, 45, 47, 48, 57, 63, 66) (ACDelco #24210954) CK2 (MN8) 2002-2006 01
K02 24210955 GASKET KIT, A/TRNS SERV (INCLS 3, 5, 6, 15, 45, 47, 48, 63, 66) (ACDelco #24210955) CK2 (MN8) 2002-2006 01
K03 24211287 PUMP KIT, A/TRNS FLUID (INCLS 5) (ACDelco #24211287) CK2 (MN8) 2002-2006 01
K04 24210956 FILTER KIT, A/TRNS FLUID (INCLS 31, 32) (INLCS FILTER SEAL) (ACDelco #24210956) CK2 (MN8) 2002-2006 01
K04 25325574 FILTER KIT, A/TRNS FLUID (4L60-E TRANS, 4 SPEED, 16 HOLES, SHALLOW PAN) (INCLS 31, 32) (ACDelco #TF333) (ALL MAKES) K157 (06) (LM7) 2005-2005 01
K04 25325574 FILTER KIT, A/TRNS FLUID (4L65-E TRANS, 4 SPEED, 16 HOLES, SHALLOW PAN) (INCLS 31, 32) (ACDelco #TF333) (ALL MAKES) K259 (36) (LQ9) 2004-2005 01
K04 25325574 FILTER KIT, A/TRNS FLUID (4L65-E TRANS, 4 SPEED, 16 HOLES, SHALLOW PAN) (INCLS 31, 32) (ACDelco #TF333) (ALL MAKES) K159 (36) (LQ9) 2004-2006 01
K04 25325574 FILTER KIT, A/TRNS FLUID (4L65-E TRANS, 4 SPEED, 16 HOLES, SHALLOW PAN) (INCLS 31, 32) (ACDelco #TF333) (ALL MAKES) K259 (06) (LQ9) 2005-2005 01
K04 25325574 FILTER KIT, A/TRNS FLUID (4L65-E TRANS, 4 SPEED, 16 HOLES, SHALLOW PAN) (INCLS 31, 32) (ACDelco #TF333) (ALL MAKES) K157 (06) (LQ9) 2005-2006 01
K04 25325574 FILTER KIT, A/TRNS FLUID (4L65-E TRANS, 4 SPEED, 16 HOLES, SHALLOW PAN) (INCLS 31, 32) (ACDelco #TF333) (ALL MAKES) K159 (06) (LQ9) 2005-2006 01
K05 24204278 PAN, A/TRNS FLUID (INCLS 28, 82, 83) (INCLS PAN, NUT, SEAL PLUG) (ACDelco #24204278) CK2 (MN8) 2002-2005 01
K06 24200418 PISTON, MAN 2-1 SERVO (INCLS 55-60) (W/RING, SEAL, PIN ПРУЖИНА) (ACDelco #24200418) CK2 (MN8) 2003-2006 01
