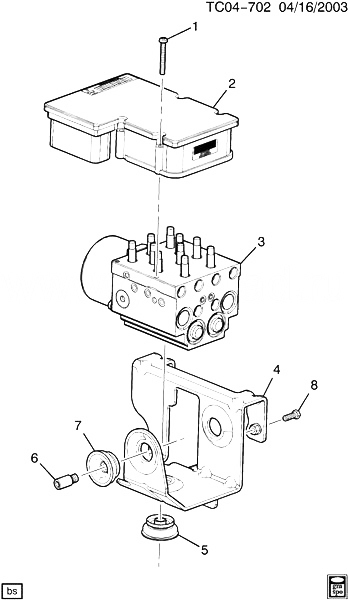

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12475229 |
БОЛТ, ELEK BRK CONT MDL CVR (M4X0.7X25 PAN HD) |
CK1, 2, 3 |
2003-2006 |
AR |
| 002 |
10391251 |
MODULE, CHAS CONT (ACDelco #10391251) |
K1 (06) (NR3, JL4, QSS) |
2005-2006 |
01 |
| 002 |
15234605 |
MODULE, CHAS CONT (ACDelco #15234605)
| K1 (06-36) (JL4, NR3, QAN, QAQ, QAS) |
2005-2005 |
01 |
|
| 002 |
15234605 |
MODULE, CHAS CONT (ACDelco #15234605)
| K1 (06-36) (LM7, L59, JL4, NR4) |
2005-2005 |
01 |
|
| 002 |
15234605 |
MODULE, CHAS CONT (ACDelco #15234605)
| K1 (06-36) (LQ4, LQ9, JL4, NR3) (EXC QSS, ULT) |
2005-2005 |
01 |
|
| 002 |
15234605 |
MODULE, CHAS CONT (ACDelco #15234605)
| K1 (06-36) (NP8, JL4) |
2005-2005 |
01 |
|
| 003 |
19122463 |
VALVE, BRK PRESS MOD (ACDelco #19122463) |
K1 (06-36) (JL4, NP8, NR3) |
2005-2005 |
01 |
| 003 |
19122463 |
VALVE, BRK PRESS MOD (ACDelco #19122463) |
K1 (06-36) (LM7, L59, JL4, NR4) |
2005-2005 |
01 |
| 003 |
19122463 |
VALVE, BRK PRESS MOD (ACDelco #19122463) |
K1 (06-36) (LQ4, LQ9, JL4, NR3) (EXC QSS, ULT) |
2005-2006 |
01 |
| 003 |
19122463 |
VALVE, BRK PRESS MOD (ACDelco #19122463) |
K159 (06) (LQ4, JL4, NR3, QSS) |
2005-2006 |
01 |
| 004 |
88982910 |
BRACKET, BRK PRESS MOD VLV (INCLS 5, 7) |
K1 (06-36) (JL4, NP8, NR3) |
2005-2005 |
01 |
| 005 |
88982913 |
BUSHING, ELEK BRK CONT MDL BRKT (PART OF 4) |
CK1 (06-36) (JL4) |
2003-2006 |
01 |
| 006 |
89040146 |
БОЛТ, BRK PRESS MOD VLV BRKT |
CK1 (06-36) |
2004-2006 |
02 |
| 007 |
88982912 |
BUSHING, ELEK BRK CONT MDL BRKT (PART OF 4) |
CK1 (06-36) (JL4) |
2003-2006 |
02 |
| 008 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (ELEK BRK CONT MDL BRKT) (ACDelco #11570082)
|
2003-2006 |
03 |
|
