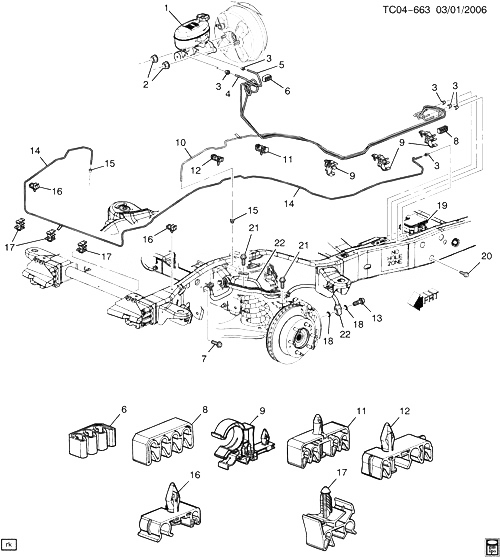

(TC04-663) - 2003-2006 CK2(06-36) ТОРМОЗНЫЕ МАГИСТРАЛИ-ПЕРЕДНИЕ CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 CYLINDER, BRK MAS (СМ. ГРУППУ 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2006
002 11517996 ГАЙКА, BRK M/CYL (M10X1.5, 11.2 THK) (8.917) CK1, 2, 3 2003-2006 02
003 11588803 ГАЙКА, FRT BRK FRT PIPE (1/2-20X.40, .32 THD) (INVERTED FLARED TUBE) (.62 LONG, 1/4 TUBE) CK1, 2, 3 2003-2006 06
004 12548430 TUBING, BRK, 1/4 X 16 FT ROLL, STL (2151MM LENGTH) 2003-2006 AR
005 12548430 TUBING, BRK, 1/4 X 16 FT ROLL, STL (2178MM LENGTH) 2003-2006 AR
006 15148643 CLIP, FRT BRK PIPE (BLACK) (6.35) (HOLDS THREE ПРОВОДА DIA 6.15, NYLON 6/6) CK259 (06-36) 2003-2006 02
007 11516885 SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (FRT BRK HOSE BRKT) 2003-2006 01
008 11562394 CLIP, FRT BRK PIPE CK2, 3 2003-2006 01
009 15765049 CLIP, FRT BRK PIPE (4-6.35, 5.0, 17.0, 33.0MM, PUSH PIN) CK259 (06) (EXC JL4) 2003-2005 03
009 15765049 CLIP, FRT BRK PIPE (4-6.35, 5.0, 17.0, 33.0MM, PUSH PIN) CK259 (36) 2003-2005 03
010 12548430 TUBING, BRK, 1/4 X 16 FT ROLL, STL (2052MM LENGTH) 2003-2006 AR
011 11561432 CLIP, FRT BRK PIPE (64.68X25.86X17.0) (HOLDS 4 TUBES) CK2, 3 2003-2006 01
012 15010669 CLIP, FRT BRK PIPE (GRAY) (1-15.0MM, 2-6.35MM) (PUSH PIN W/3 HOLES) CK259 (06) (EXC JL4) 2003-2005 01
012 15010669 CLIP, FRT BRK PIPE (GRAY) (1-15.0MM, 2-6.35MM) (PUSH PIN W/3 HOLES) CK259 (36) 2003-2005 01
013 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (PART OF 22) 2003-2006 02
014 12548430 TUBING, BRK, 1/4 X 16 FT ROLL, STL (3617MM LENGTH) 2003-2006 AR
015 11588804 NUT-TUBE, 7/16-24X0.36, 0.30 THD, 0.56 LONG, 1/4 TUBE, SAE 1008 STL, GMW (FRT BRK FRT PIPE) 2003-2006 02
016 11561421 CLIP, FRT BRK FRT PIPE (FITS INTO DIA 6 HOLE) CK2 (EXC JL4) 2003-2005 02
017 15010672 CLIP, FRT BRK FRT PIPE (GRAY) (1-6.35MM, 1-15.0MM) (PUSH PIN W/2 HOLES) (SERRATED) CK2 (06-36) (EXC JL4) 2003-2005 03
018 WASHER, FRT BRK HOSE (PART OF 22) 2005-2006
019 MODULE, ELEK BRK CONT (СМ. ГРУППУ 04.000 BRAKE MODULE ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2006
020 12475229 БОЛТ, ELEK BRK CONT MDL CVR (M4X0.7X25 PAN HD) CK1, 2, 3 2003-2006 AR
021 11517342 БОЛТ, HEX HD, W/FL WA, M6X1X20, 9.53 THD, 17 O.D., P-PT, 9.8, 6280M (FRT BRK HOSE) 2003-2006 04
022 15852641 HOSE, FRT BRK (INCLS 13, 18, 24, 25) (INCLS BANJO BOLT) (ACDelco #176-1205) CK2, 3 (JH6, JH7) 2005-2005 01
022 15852642 HOSE, FRT BRK (INCLS 13, 18, 24, 25) (INCLS BANJO BOLT) (ACDelco #176-1206) CK2, 3 (JH6, JH7) 2005-2005 01
