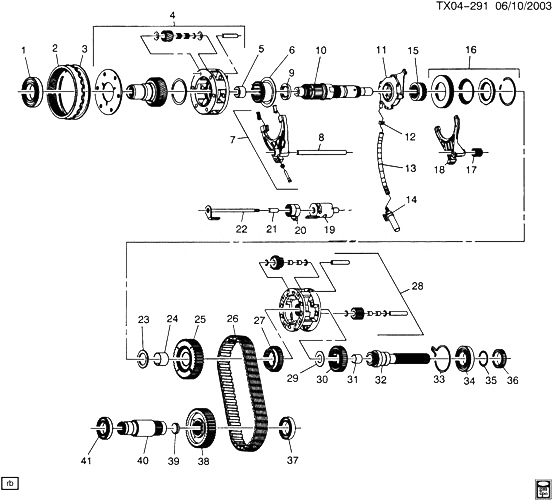

(TX04-291) - 2003-2005 K1 КОРПУС КП (NR4) ЧАСТЬ 2 INTERNAL COMPONENTS (BORG WARNER 4482) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88984507 BEARING, TRFER CASE INPUT SHF K1 (M30, NR4) 2003-2005 01
002 88984534 GEAR, TRFER CASE PLNT CARR INTL K1 (M30, NR4) 2003-2005 01
003 15580249 RING, TRFER CASE HIGH/LOW INT GR RET K1 (M30, NR4) 2003-2005 01
004 89060055 CARRIER, TRFER CASE HIGH/LOW PLNT K1 (M30, NR4) 2003-2005 01
005 12334624 BEARING, TRFER CASE MAIN SHF FRT (ACDelco #12334624) K1 (M30, NR4) 2003-2005 01
006 88996561 HUB, TRFER CASE HIGH/LOW CLU GR K1 (M30, NR4) 2003-2005 01
007 FORK, TRFER CASE RANGE (COMPL) 2003-2005
008 88984531 SHAFT, TRFER CASE SHFT FORK K1 (M30, NR4) 2003-2005 01
009 89058756 WASHER, TRFER CASE INPUT SHF THR K1 (M30, NR4) 2003-2005 01
010 89048542 SHAFT, TRFER CASE INPUT K1 (M30, NR4) 2005-2005 01
011 89059682 PUMP, TRFER CASE OIL K1 (M30, NR4) 2003-2005 01
012 88984502 CLAMP, TRFER CASE O/PMP SUC HOSE K1 (M30, NR4) 2003-2005 01
013 88984498 HOSE, TRFER CASE O/PMP SUC (4.510) K1 (M30, NR4) 2003-2005 01
014 88984525 SCREEN, TRFER CASE O/PMP K1 (M30, NR4) 2003-2005 01
015 88996672 HUB, TRFER CASE TWO/FOUR WHL DRV CLU GR K1 (M30, NR4) 2003-2005 01
016 89059281 COLLAR, TRFER CASE TWO/FOUR WHL DRV SYN K1 (M30, NR4) 2004-2005 01
017 15663532 ПРУЖИНА, TRFER CASE SHFT FORK K1 (M30, NR4) 2003-2005 01
018 19180821 FORK, TRFER CASE TWO/FOUR WHL DRV SHFT K1 (M30, NR4) 2003-2005 01
019 88996628 LEVER, TRFER CASE SHFT DTNT K1 (M30, NR4) 2003-2005 01
020 88984497 ПРУЖИНА, TRFER CASE HIGH/LOW SHFT FORK SHF DTNT K1 (M30, NR4) 2003-2005 01
021 88984496 SPACER, TRFER CASE SHFT DTNT LVR K1 (M30, NR4) 2003-2005 01
022 88984532 SHAFT, TRFER CASE SHFT DTNT LVR (4.555) K1 (M30, NR4) 2003-2005 01
023 88984518 WASHER, TRFER CASE FRT OUTPUT SHF DRVN SPKT THR K1 (M30, NR4) 2003-2005 01
024 19168732 BUSHING, TRFER CASE FRT OUTPUT SHF DRV SPKT (ACDelco #19168732) K1 (NR3, NR4) 2003-2005 01
025 89048541 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV (W/BUSHING) K1 (M30, NR4) 2003-2005 01
026 88996485 CHAIN, TRFER CASE TWO/FOUR WHL DRV K1 (M30, NR4) 2003-2005 01
027 88984523 GEAR, TRFER CASE PLNT CARR SUN (OUTPUT) K1 (M30, NR4) 2003-2005 01
028 89059279 CARRIER, FRT/RR DRV DIFF K1 (M30, NR4) 2003-2005 01
029 88984517 WASHER, TRFER CASE PLNT CARR SUN GR THR (25.8X52.0X2.2) K1 (M30, NR4) 2003-2005 01
030 88984524 GEAR, TRFER CASE PLNT CARR SUN (INPUT) (STAMPED PM/POWDERED METAL) K1 (M30, NR4) 2003-2005 01
031 19168733 BUSHING, TRFER CASE RR OUTPUT SHF (*KIT3) K1 (M30, NR4) 2003-2005 01
032 SHAFT, TRFER CASE RR OUTPUT (*KIT3) 2003-2005
033 88984508 RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET (80MM I.D.) (*KIT3) (4.535) K1 (M30, NR4) 2003-2005 01
034 88984506 BEARING, TRFER CASE RR OUTPUT SHF RR K1 (M30, NR4) 2003-2005 01
035 88984493 RING, TRFER CASE RR OUTPUT SHF RR BRG RET (41MM I.D.) (ACDelco #88984493) K1 (M30, NR4) 2005-2005 01
036 88984522 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (*KIT3) K1 (M30, NR4) 2003-2005 01
037 88984506 BEARING, TRFER CASE RR OUTPUT SHF RR (*KIT3) K1 (M30, NR4) 2003-2005 01
038 88996486 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN (*KIT4) K1 (NR4) 2005-2005 01
039 89059602 PLUG, TRFER CASE FRT OUTPUT SHF HOLE (PART OF 40) K1 (M30, NR4) 2005-2005 01
040 SHAFT, TRFER CASE FRT OUTPUT (INCLS 39) (*KIT4) 2003-2005
041 88996564 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT (*KIT1, KIT2) K1 (M30, NR4) 2003-2005 02
K01 19132936 CASE, TRFER (FRT HALF) (INCLS 41) K1 (M30, NR4) 2003-2005 01
K02 CASE, TRFER (RR HALF) (INCLS 41) 2003-2005
K03 19168725 SHAFT, TRFER CASE RR OUTPUT (INCLS 31-33, 36, 37) K1 (M30, NR4) 2003-2005 01
K04 24232826 CASE, TRFER (W/GEARS) (CODE CR, CL) (INCLS 38, 40) K1 (M30, NR4) 2005-2005 01
