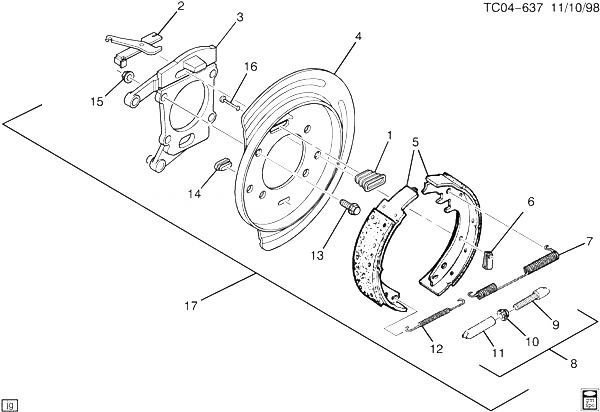

(TC04-637) - 2004-2005 CK2 СТОЯНОЧНЫЙ ТОРМОЗ ASM (JH6, EXC NYS) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 BOOT, PARK BRK LVR (*KIT1) 2004-2005
001 BOOT, PARK BRK LVR (*KIT1) 2005-2005
002 88965732 LEVER, RR PARK BRK CK2 (GT4, JH6) 2004-2005 02
003 PLATE, RR BRK BKG (*KIT1) 2004-2005
003 PLATE, RR BRK BKG (*KIT1) 2005-2005
004 88982585 SHIELD KIT, PARK BRK ACTR SPH (*KIT1) (ANCHOR BRKT SHOE SLOT OPENING 11.4 MM) CK1, 2, 3 (JH6) 2001-2005 02
005 12473088 LINING KIT, PARK BRK SHOE (W/SHOES) (5.018) (ACDelco #171-818) CK2 (JH6) 2003-2007 01
006 CLIP, RR BRK (*KIT2) 2004-2005
006 CLIP, RR BRK (*KIT2) 2005-2005
007 ПРУЖИНА, PARK BRK SHOE RTN (UPR) (*KIT2) 2004-2005
007 ПРУЖИНА, PARK BRK SHOE RTN (UPR) (*KIT2) 2005-2005
008 ADJUSTER KIT, RR PARK BRK (INCLS 9, 10, 11) 1999-2007
008 15817887 ADJUSTER KIT, RR PARK BRK (INCLS 9, 10, 11) CK2 (JH6) 2005-2007 02
009 БОЛТ, PARK BRK SHOE ADJR (PART OF 8) 2004-2005
009 БОЛТ, PARK BRK SHOE ADJR (PART OF 8) 2005-2005
010 ГАЙКА, PARK BRK (PART OF 8) 2004-2005
010 ГАЙКА, PARK BRK (PART OF 8) 2005-2005
011 SOCKET, RR PARK BRK ADJ (PART OF 8) 2004-2005
011 SOCKET, RR PARK BRK ADJ (PART OF 8) 2005-2005
012 ПРУЖИНА, PARK BRK SHOE RTN (LWR) (*KIT2) 2004-2005
012 ПРУЖИНА, PARK BRK SHOE RTN (LWR) (*KIT2) 2005-2005
013 БОЛТ, PARK BRK (*KIT1) 2004-2005
013 БОЛТ, PARK BRK (*KIT1) 2005-2005
014 12473092 COVER, PARK BRK LVR OPG (*KIT1) (5.158) CK2 (JH6) 1999-2005 02
015 11516383 ГАЙКА, HFH LK 16X2X18.9 34.2 OD 10 7111M PREV TORQ (PARK BRK) 1999-2007 08
016 PIN, PARK BRK SHOE (*KIT2) 2004-2005
016 PIN, PARK BRK SHOE (*KIT2) 2005-2005
017 15831700 BRAKE, PARK (INCLS 1-16) CK2, 3 (JH6) 2004-2005 02
K01 88965717 PLATE KIT, RR BRK SHOE GDE (INCLS 1, 3, 4, 13, 14) CK2 (JH6) 2004-2005 02
K02 15817888 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #179-2228) CK2 (JH6) 1999-2007 01
K02 19138397 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (205 X 42MM BRKS) (INCLS 6, 7, 12, 16) (ACDelco #18K1618) (DURASTOP) CK259 (06) (LQ4) 2000-2006 01
K02 19138397 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (205 X 42MM BRKS) (INCLS 6, 7, 12, 16) (ACDelco #18K1618) (DURASTOP) CK259 (06) (L18) 2001-2006 01
K02 19138397 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (205 X 42MM BRKS) (INCLS 6, 7, 12, 16) (ACDelco #18K1618) (DURASTOP) K259 (36) (L18) 2004-2006 01
K02 19138397 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1618) (DURASTOP) CK259 (06) (LQ4) 2002-2005 01
K02 19138397 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1618) (DURASTOP) CK259 (06) (L18) 2002-2006 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (210 X 30MM BRKS) (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) CK159 (06) (LM7) 2001-2005 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (210 X 30MM BRKS) (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) CK159 (06) (L59) 2002-2006 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (210 X 30MM BRKS) (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) K159 (06) (L59, LM7) 2005-2005 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) CK157 (06) (LM7, LR4) 2001-2006 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) CK157 (06) (L59) 2002-2006 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) CK159 (06) (LM7) 2003-2005 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) CK159 (06) (L59) 2003-2006 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) K259 (36) (LQ9) 2004-2005 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) K157 (06) (L59) 2005-2005 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) K157 (06) (LM7) 2005-2005 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) K259 (06) (LQ9) 2005-2005 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) K157 (06) (LQ4, LQ9) 2005-2006 01
K02 19138408 ПРУЖИНА KIT, RR PARK BRK SHOE HOLDN (INCLS 6, 7, 12, 16) (ACDelco #18K1629) (DURASTOP) K159 (06) (LQ9) 2005-2006 01
