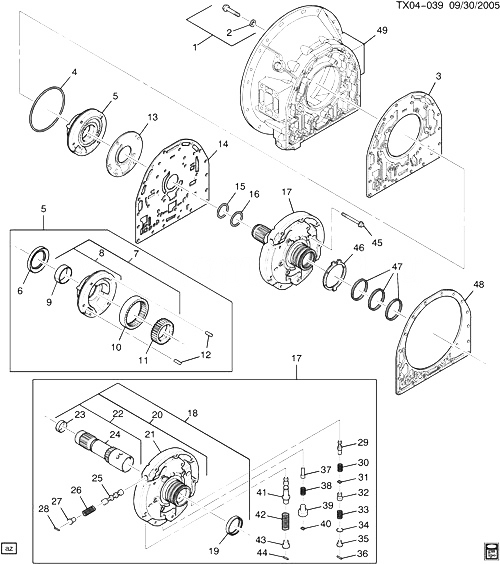

(TX04-039) - 2001-2005 CK2,3 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M74) (ALLISON 1000 SERIES) МАСЛОНАСОС CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 29535520 БОЛТ, T/CV HSG (TO PUMP) (INCLS SEAL) (4.105) CK2, 3 (M74) 2001-2005 10
002 SEAL, T/CV HSG (O RING) 2001-2005
003 29540130 GASKET, T/CV HSG CK2, 3 (M74) 2001-2005 01
004 29537620 SEAL, A/TRNS ГИДРОНАСОС (O RING) CK2, 3 (M74) 2001-2005 01
005 29545809 PUMP KIT, A/TRNS FLUID (INCLS 6-12) (4.115) (ACDelco #29545809) CK2, 3 (M74) 2001-2005 01
006 29546682 SEAL, T/CV FLUID (PART OF 5) (ACDelco #29546682) CK2, 3 (M74) 2001-2005 01
007 BODY, A/TRNS ГИДРОНАСОС (PART OF 5) 2001-2005
008 BODY, A/TRNS ГИДРОНАСОС (PART OF 5) 2001-2005
009 BUSHING, A/TRNS ГИДРОНАСОС ROT (PART OF 5) 2001-2005
010 GEAR, A/TRNS ГИДРОНАСОС DRVN (PART OF 5) 2001-2005
011 GEAR, A/TRNS ГИДРОНАСОС DRV (PART OF 5) 2001-2005
012 PIN, A/TRNS ГИДРОНАСОС SLIDE (PART OF 5) 2001-2005
013 29541149 PLATE, A/TRNS ГИДРОНАСОС WEAR CK2, 3 (M74) 2001-2005 01
014 29541148 PLATE, A/TRNS FLUID PMP CK2, 3 (M74) 2001-2005 01
015 29536405 SEAL KIT, A/TRNS FLUID PMP (W/BUTT-JOINTS) (ACDelco #29536405) CK2, 3 (M74) 2001-2005 01
016 29536406 SEAL KIT, A/TRNS ГИДРОНАСОС SLIDE (ACDelco #29536406) CK2, 3 (M74) 2001-2005 01
017 PUMP, A/TRNS FLUID (SERVICED BY COMPONENTS, SEE 18-44) 2001-2005
018 29542793 ШЛАНГИ, A/TRNS ГИДРОНАСОС (INCLS 19-24) (PART OF 17) CK2, 3 (M74) 2005-2005 01
019 29531013 BEARING, A/TRNS ГИДРОНАСОС DRV SHF (PART OF 17, 18) CK2, 3 (M74) 2001-2005 01
020 SLEEVE, A/TRNS ГИДРОНАСОС DRV SHF (PART OF 17, 18) 2001-2005
021 SUPPORT, A/TRNS ГИДРОНАСОС SLIDE SEAL (PART OF 17, 18) 2001-2005
022 SLEEVE, A/TRNS ГИДРОНАСОС DRV SHF (PART OF 17, 18) 2001-2005
023 BUSHING, A/TRNS ГИДРОНАСОС DRV SHF (PART OF 17, 18) 2001-2005
024 SLEEVE, A/TRNS ГИДРОНАСОС DRV SHF (PART OF 17, 18) 2001-2005
025 29541144 VALVE, TCC (PART OF 17) CK2, 3 (M74) 2005-2005 01
026 29531024 ПРУЖИНА, TCC VLV (PART OF 17) (4.226) CK2, 3 (M74) 2001-2005 01
027 29531028 STOP, TCC VLV (PART OF 17) (ACDelco #29531028) CK2, 3 (M74) 2001-2005 01
028 23049372 RETAINER, TCC C/VLV (PART OF 17) (4.226) CK2, 3 (M74) 2001-2005 03
029 29541139 VALVE, TCC RLF (PART OF 17) CK2, 3 (M74) 2005-2005 01
030 29541296 ПРУЖИНА, TCC RLF VLV (PART OF 17) (ACDelco #29541296) CK2, 3 (M74) 2001-2005 01
031 29531022 RETAINER, DTNT REG VLV SPR (PART OF 17) (4.198) CK2, 3 (M74) 2004-2005 07
032 29542711 VALVE, LUBE REG (PART OF 17) CK2, 3 (M74) 2005-2005 01
033 29541228 ПРУЖИНА, LUBE REG VLV (PART OF 17) CK2, 3 (M74) 2005-2005 01
034 29503382 SEAL, SHFT SOL VLV (O RING) (OUTER) (PART OF 17) (14MM I.D.) (INNER SEAL) CK2, 3 (M74) 2004-2005 02
035 29541141 STOP, LUBE REG VLV (PART OF 17) CK2, 3 (M74) 2005-2005 01
036 23049372 RETAINER, TCC C/VLV (PART OF 17) (4.226) CK2, 3 (M74) 2001-2005 03
037 29541142 VALVE, 1-2-3-4 CLU REG (PART OF 17) (4.262) CK2, 3 (M74) 2005-2005 01
038 29542713 ПРУЖИНА, 1-2-3-4 CLU REG VLV (PART OF 17) (4.262) CK2, 3 (M74) 2005-2005 01
039 29541562 STOP, PRESS REG VLV (PART OF 17) (CLU BACKFILL) CK2, 3 (M74) 2001-2005 01
040 29531022 RETAINER, DTNT REG VLV SPR (PART OF 17) (4.198) CK2, 3 (M74) 2001-2005 07
041 29541138 VALVE, PRIM PRESS REG (PART OF 17) CK2, 3 (M74) 2005-2005 01
042 29544465 ПРУЖИНА, PRESS REG VLV (PART OF 17) (ACDelco #29544465) CK2, 3 (M74) 2001-2005 01
043 29531018 STOP, PRESS REG VLV (PART OF 17) (MAIN REG) (4.265) CK2, 3 (M74) 2001-2005 01
044 23049372 RETAINER, TCC C/VLV (PART OF 17) (4.226) CK2, 3 (M74) 2001-2005 03
045 29510680 БОЛТ, A/TRNS ГИДРОНАСОС (M8X1.25X55, FL HD) (ACDelco #29510680) CK2, 3 (M74) 2001-2005 05
046 29531035 WASHER, A/TRNS ГИДРОНАСОС (ACDelco #29531035) CK2, 3 (M74) 2001-2005 01
047 29538940 SEAL, A/TRNS ГИДРОНАСОС CVR (O RING) (4.115) CK2, 3 (M74) 2001-2005 03
048 29536478 GASKET, A/TRNS FRT CASE CK2, 3 (M74) 2001-2005 01
049 29540491 ШЛАНГИ, T/CV (СМ. ГРУППУ 04.000 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M74)/CONVERTOR ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (ACDelco #29540491) (FOR 3/4 THD USE 29540501/CONNFOR 7/8 THD USE 88996640/CONN KIT) CK2, 3 (M74) 2001-2005 01
