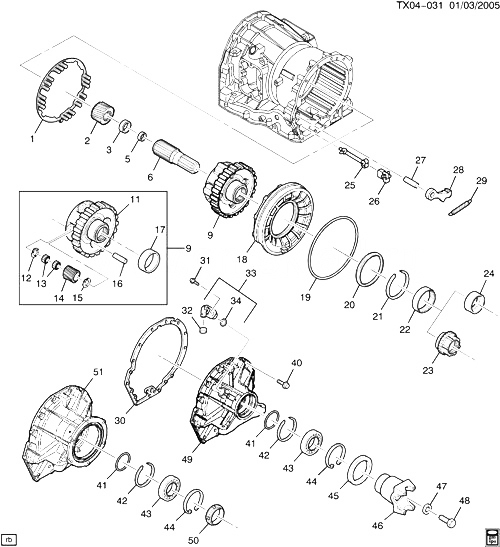

(TX04-031) - 2001-2005 CK2,3 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M74) (ALLISON 1000 SERIES) REAR COVER CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 29531134 ПРУЖИНА, LOW REV CLU CK2, 3 (M74) 2001-2005 01
002 29540499 GEAR, OUTPUT SUN (SERV T/W 29539501 T/W 29540500) CK2, 3 (M74) 2001-2005 01
003 29531089 BEARING, OUTPUT SHF THR (43.75MM) (4.187) CK2, 3 (M74) 2005-2005 01
003 29531089 BEARING, OUTPUT SHF (S/N PRIOR TO 6310220802 AND 6320127996) (43.75MM) (4.187) CK2, 3 (M74) 2001-2005 01
003 29539501 BEARING, OUTPUT SHF THR (53.85MM) (SERV T/W 29540499 T/W 29540500) CK2, 3 (M74) 2005-2005 01
005 BUSHING, OUTPUT SHF (PART OF 6) 2001-2005
006 29531252 SHAFT, OUTPUT (INCLS 5) K2, 3 (M74) 2001-2005 01
009 29540500 CARRIER, OUTPUT (INCLS 11-17) (SERV T/W 29540499 T/W 29539501) CK2, 3 (M74) 2001-2005 01
011 CARRIER, OUTPUT (PART OF 9) 2001-2005
012 WASHER, OUTPUT CARR P/GR THR (PART OF 9) 2001-2005
013 ROLLER, OUTPUT CARR P/GR BRG (PART OF 9) 2001-2005
014 GEAR, OUTPUT CARR PINION (PART OF 9) 2001-2005
015 WASHER, OUTPUT CARR P/GR THR (PART OF 9) 2001-2005
016 PIN, OUTPUT CARR P/GR (PART OF 9) 2001-2005
017 RACE, OUTPUT SHF THR BRG (PART OF 9) 2001-2005
018 29544790 PISTON, LOW REV CLU (ACDelco #29544790) CK2, 3 (M74) 2001-2005 01
019 29534894 SEAL, LOW REV CLU PSTN OTR (4.229) CK2, 3 (M74) 2001-2005 01
020 29536859 SEAL, LOW REV CLU PSTN INR (4.229) CK2, 3 (M74) 2001-2005 01
021 29531152 RING, OUTPUT CARR INTL GR RET (4.164) CK2, 3 (M74) 2001-2005 01
022 29531151 BEARING, OUTPUT CARR CK2, 3 (M74) 2001-2005 01
023 29536591 WHEEL, A/TRNS OUTPUT SHF SPD SEN RELUCTOR CK2, 3 (M74) 2001-2005 01
024 29541013 SPACER, OUTPUT GR BRG (4.175) K2, 3 (M74) 2001-2005 01
025 29544103 PAWL, FWD CLU CK2, 3 (M74) 2001-2005 01
026 29536980 GUIDE, PARK PAWL CAM CK2, 3 (M74) 2001-2005 01
027 29531146 PIN, PARK PAWL SPR CK2, 3 (M74) 2001-2005 01
028 29540312 PAWL, PARK (ACDelco #29540312) CK2, 3 (M74) 2001-2005 01
029 29531147 ПРУЖИНА, PARK PAWL (ACDelco #29531147) CK2, 3 (M74) 2001-2005 01
030 29536941 GASKET, LOW REV CLU PSTN HSG (4.109) (ACDelco #29536941) CK2, 3 (M74) 2001-2005 01
031 29537511 БОЛТ, VEH SPD SEN (4.329) (ACDelco #29537511) CK2, 3 (M74) 2001-2005 01
031 29537511 БОЛТ, VEH SPD SEN (ACDelco #29537511) CK2, 3 (M74) 2001-2005 01
032 COVER, VEH SPD SEN HSG (SHIPPING) 2001-2005
033 29536408 SENSOR, A/TRNS OUTPUT SPD (BOLT ON W/BRACKET) (INCLS 34) (4.329) (ACDelco #213-958) CK2, 3 (LLY, L18, M74) 2005-2005 01
034 29534145 SEAL, VEH SPD SEN (O RING) (PART OF 33) (ORANGE) (I.D. 18MM) (ACDelco #29534145) CK2, 3 (M74) 2001-2005 01
040 11515467 БОЛТ, HFH, M10X1.5X40, 22.3 O.D., 10.9, GM4345M (LOW REV CLU PSTN HSG) 2001-2005 16
041 29536850 SHIM, OUTPUT SHF BRG (0.245-0.295MM) CK2, 3 (M74) 2001-2005 01
041 29536851 SHIM, OUTPUT SHF BRG (0.475-0.525MM) CK2, 3 (M74) 2001-2005 01
041 29536852 SHIM, OUTPUT SHF BRG (0.705-0.755MM) CK2, 3 (M74) 2001-2005 01
041 29536853 SHIM, OUTPUT SHF BRG (0.935-0.985MM) CK2, 3 (M74) 2001-2005 01
041 29536854 SHIM, OUTPUT SHF BRG (1.185-1.215MM) CK2, 3 (M74) 2001-2005 01
041 29536855 SHIM, OUTPUT SHF BRG (1.395-1.445MM) CK2, 3 (M74) 2001-2005 01
041 29536856 SHIM, OUTPUT SHF BRG (1.625-1.675MM) CK2, 3 (M74) 2001-2005 01
042 29541534 RING, OUTPUT SHF BRG RET (FRT SUPT) (4.319) (ACDelco #29541534) CK2, 3 (M74) 2001-2005 01
043 23047970 BEARING, OUTPUT SHF (SUPT) (4.187) CK2, 3 (M74) 2001-2005 01
044 29536981 RING, OUTPUT SHF BRG RET (SUPT) (4.172) CK2, 3 (M74) 2001-2005 01
045 29536379 SEAL, PROP SHF TRANS FLG FLUID (DOUBLE LIP) CK2, 3 (LB7, LLY, L18, M74) 2004-2005 01
047 29536848 SEAL, FRT PROP SHF (YOKE) (8.927) CK2, 3 (M74) 2004-2005 01
050 29531231 ГАЙКА, OUTPUT SHF RET (4WD) (0.679) K2, 3 (M74) 2001-2005 01
051 29544804 ШЛАНГИ, LOW REV CLU (4.083) (ACDelco #29544804) K2, 3 (M74) 2001-2005 01
