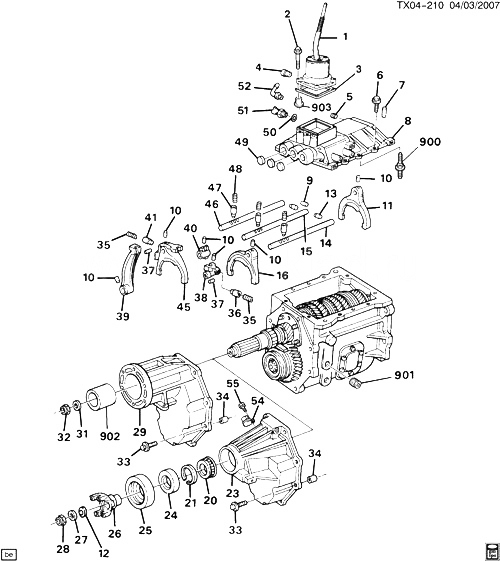

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12478063 |
LEVER, SHFT |
CK2, 3 (MW3) |
2004-2007 |
01 |
| 002 |
14096659 |
БОЛТ, SHFT CONT HSG (HFH, 1/4-20X1.38) (0.137) |
CK2, 3 (MW3) |
2001-2007 |
04 |
| 002 |
14096659 |
БОЛТ, SHFT CONT HSG (HFH, 1/4-20X1.38) (0.137) |
CK2, 3 (MW3) |
2001-2007 |
04 |
| 003 |
12548351 |
SPACER, SHFT TWR (W/LOAD REACTION PLT) |
CK2, 3 (MW3) |
2001-2007 |
01 |
| 004 |
|
TRUNION, TRANS (PART OF 8) |
|
2001-2007 |
|
| 005 |
09421743 |
PLUG, (PART OF 8) |
|
1999-2007 |
01 |
| 006 |
12542559 |
БОЛТ, BRG RET PLT (5/16-18X1) (HEX W/CON WASHER) (TO CASE) |
CK2, 3 (MW3) |
2001-2007 |
08 |
| 007 |
15635315 |
PIN, TRANS CVR LOC (DIA 468, LG 485) |
CK2, 3 (MW3) |
2001-2007 |
02 |
| 008 |
12478062 |
COVER, TRANS (INCLS 5, 9-11, 13-16, 35-38, 40, 41, 45-49, 56) |
CK2, 3 (MW3) |
2005-2007 |
01 |
| 009 |
02462229 |
PIN, SHFT ROD INTLK (PART OF 8) |
CK2, 3 (MW3) |
2001-2007 |
01 |
| 010 |
12542972 |
PIN, SHFT FORK LK (PART OF 8) (HAS 2 CHAMFERED ENDS) |
CK2, 3 (MW3) |
2001-2007 |
07 |
| 011 |
|
FORK, 3RD 4TH SHFT (PART OF 8) |
|
2001-2007 |
|
| 013 |
|
PLUNGER, TRANS SHFT INTLK (PART OF 8) |
|
2001-2007 |
|
| 014 |
|
SHAFT, 1ST 2ND SHFT (PART OF 8) |
|
2001-2007 |
|
| 015 |
|
SHAFT, 3RD 4TH SHFT (PART OF 8) |
|
2001-2007 |
|
| 016 |
|
FORK, 1ST 2ND SHFT (PART OF 8) |
|
2001-2007 |
|
| 025 |
|
DAMPER, VIBRATION (PART OF 26) |
|
2001-2007 |
|
| 029 |
12546147 |
EXTENSION, TRANS (RR OIL) (4.412) |
K2, 3 (MW3) |
2001-2007 |
01 |
| 031 |
15635326 |
WASHER, PROP SHF TRANS YOKE (1.52X2.2X.17) (SPL CON) (4.412) |
K2, 3 (LQ4, MW3) |
2005-2006 |
01 |
| 032 |
12377811 |
ГАЙКА, MAIN SHF (O/D GR RET) (1.5-18 X 57.02) (USE W/12345493 LOCTITE 272) |
K2, 3 (MW3) |
2001-2007 |
01 |
| 033 |
15635285 |
БОЛТ, TRANS (M10X1.5X333.2, 27.5) |
CK2, 3 (MW3) |
2001-2007 |
08 |
| 034 |
15635284 |
PIN, TRANS CASE LOC (ПРУЖИНА PIN 0.555 DIA 0.729 LENGTH STL CHAMFERED END) |
CK2, 3 (MW3) |
2001-2007 |
02 |
| 035 |
|
ПРУЖИНА, SHFT FINGER PLGR (PART OF 8) |
|
2001-2007 |
|
| 036 |
|
PLUNGER, TRANS BIAS 1ST 2ND SHFT (PART OF 8) |
|
2001-2007 |
|
| 037 |
00273937 |
PIN, ПРУЖИНА, 1/8X1 1/4, STL, ZC (PART OF 8) (**VPI 1-877-846-8243) |
|
1999-2007 |
02 |
| 038 |
|
LUG, TRANS 1-2 SHFT (PART OF 8) |
|
2001-2007 |
|
| 039 |
15635200 |
LUG, TRANS O/D (4.302) |
CK2, 3 (MW3) |
2001-2007 |
01 |
| 040 |
|
LUG, TRANS 3-4 SHFT (PART OF 8) |
|
2001-2007 |
|
| 041 |
|
PLUNGER, TRANS BIAS REV O/D (PART OF 8) |
|
2001-2007 |
|
| 045 |
|
FORK, 5TH REV SHFT (PART OF 8) |
|
2001-2007 |
|
| 045 |
12382830 |
INSERT, 5TH REV SHFT FORK (PART OF 8) (W/NOTCHES) (CENTER) |
CK2, 3 (MW3) |
2001-2007 |
01 |
| 045 |
12382866 |
INSERT, 5TH REV SHFT FORK (PART OF 8) (OUTER) |
CK2, 3 (MW3) |
2001-2007 |
02 |
| 046 |
|
SHAFT, 5TH REV SHFT (PART OF 8) |
|
2001-2007 |
|
| 047 |
|
POPPET, SHFT ROD (PART OF 8) |
|
2001-2007 |
|
| 048 |
|
ПРУЖИНА, SHFT ROD POPPET BALL (PART OF 8) |
|
2001-2007 |
|
| 049 |
|
PLUG, SHFT BAR HSG EXPN (PART OF 8) |
|
2001-2007 |
|
| 050 |
03929530 |
GASKET, B/U LP SW |
CK2, 3 (MW3) |
2001-2007 |
01 |
| 051 |
19152824 |
SWITCH, PARK/NEU POSN B/U LP (4.054) (ACDelco #D2208D) |
CK2, 3 (MW3) |
2003-2007 |
01 |
| 051 |
19152824 |
SWITCH, PARK/NEU POSN B/U LP (ACDelco #D2208D) |
CK2, 3 (MW3) |
2003-2007 |
01 |
| 052 |
89059625 |
PIPE, TRFER CASE VENT |
CK2, 3 (MW3) |
2001-2007 |
01 |
| 055 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (VEH SPD SEN HOLE PLUG) (T/W 12345493 REPLCS 25534835)
|
1999-2007 |
01 |
|
| 900 |
15635393 |
STUD, SHFT CONT HSG |
CK2, 3 (MW3) |
2001-2007 |
01 |
| 901 |
15637304 |
PLUG, TRANS OIL FIL (3/4-14X.92, .69 THD) (4.510) |
CK2, 3 (MW3) |
2001-2007 |
01 |
| 902 |
12382836 |
SPACER, OUTPUT GR |
K2, 3 (MW3) |
2001-2007 |
01 |
| 903 |
12548355 |
BUSHING, TRANS SHFT TWR MT |
CK2, 3 (MW3) |
2001-2007 |
04 |
