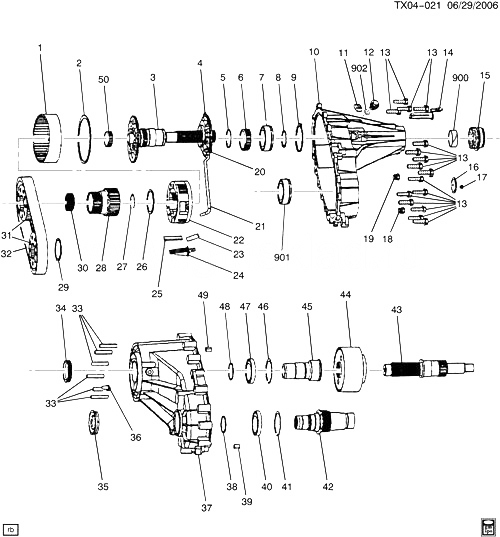

(TX04-021) - 2001-2007 K1 КОРПУС КП (NP3)-AWD (NEW PROCESS 149) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12478162 GEAR, TRFER CASE PLNT CARR INTL (4.535) K1 (M32, NP3) 2003-2007 01
002 12478163 RING, TRFER CASE PLNT CARR INTL GR RET K1 (M32, NP3) 2001-2007 01
003 12478161 SHAFT, TRFER CASE RR OUTPUT (INCLS 50) K1 (M32, NP3) 2001-2007 01
004 12478164 PUMP, TRFER CASE OIL K1 (M32, NP3) 2003-2007 01
005 12478168 RING, VEH SPD SEN RELUCTOR WHL RET K1 (M32, NP3) 2001-2007 01
006 12472605 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (4.329) K1 (M32, NP3) 2003-2007 01
006 12472605 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR K1 (M32, NP3) 2003-2007 01
007 09442326 BEARING, TRFER CASE RR OUTPUT SHF (DOUBLE ROW BALL BEARING) (ACDelco #9442326) K1 (M32, NP3) 2001-2007 01
008 00682653 RING, TRFER CASE RR OUTPUT SHF BRG RET (1.82 FREE I.D. X .094 THK) (4.412) K1 (NP3) 2001-2007 01
009 12547637 RING, TRFER CASE RR OUTPUT SHF BRG RET (OUTER) K1 (M32, NP3) 2001-2007 01
010 12473226 CASE, TRFER (RR HALF) (INCLS 900, 901) K1 (M32, NP3) 2001-2007 01
011 12470560 PLUG, TRFER CASE ACC HOLE K1 (NP3) 2001-2007 01
012 12376520 SENSOR, VEH SPD (SCREW-IN WITH O-RING) (INCLS 902) (2-WAY MALE) (3.682) (ACDelco #213-347) K1, 2, 3 (L35, LQ4, LR4, L35, LM7, NP1, NP2, NP3, NP8) 2001-2007 03
013 88996722 БОЛТ, TRFER CASE (HEX W/FLAT ALUM WA, M10X1.5X40) K1 (NP3) 2001-2007 17
014 12384945 BRACKET, TRFER CASE (SPEED SENSOR HARNESS) K1 (NP3) 2001-2007 01
015 12547638 SEAL, TRFER CASE RR OUTPUT SHF (STAMPED 22507) (BOOTED) K1 (NP3) 2001-2007 01
016 TAG, TRFER CASE IDENT 2001-2007
017 89059624 SCREW, PAN HEAD, #10-32, 0.25 LENGTH, 0.32 OD, STL, ZP (TRFER CASE) 2001-2007 01
018 15032997 PLUG, TRFER CASE OIL DRN K1 (NP3) 2001-2007 01
019 15032997 PLUG, TRFER CASE OIL FILL K1 (NP3) 2001-2007 01
020 15547430 SEAL, TRFER CASE O/PMP SUC PIPE (O-RING) K1 (NP3) 2001-2007 01
021 12478167 PIPE, TRFER CASE O/PMP SUC K1 (M32, NP3) 2003-2007 01
022 12478160 CARRIER, TRFER CASE PLNT K1 (M32, NP3) 2003-2007 01
023 CONNECTOR, TRFER CASE TWO/FOUR WHL DRV CLU COIL 2001-2007
024 12478166 SCREEN, TRFER CASE O/PMP K1 (M32, NP3) 2003-2007 01
025 12478165 MAGNET, TRFER CASE CHIP COLLECTOR (ACDelco #12478165) K1 (NP3) 2001-2007 01
026 12478158 WASHER, TRFER CASE PLNT CARR SUN GR THR (67.18MM I.D, 79.2MM O.D., 1.6 THK) K1 (M32, NP3) 2003-2007 01
027 12478163 RING, TRFER CASE PLNT CARR INTL GR RET K1 (M32, NP3) 2001-2007 01
028 12478155 GEAR, TRFER CASE PLNT CARR SUN K1 (M32, NP3) 2003-2007 01
029 88892217 RING, TRFER CASE PLNT CARR INTL GR RET K1 (M32, NP3) 2001-2007 01
030 12478156 BEARING, TRFER CASE PLNT CARR SUN GR K1 (M32, NP3) 2001-2007 01
031 12474614 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV K1 (NP3) 2001-2007 01
031 12474614 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN K1 (NP3) 2001-2007 01
032 12474602 CHAIN, TRFER CASE TWO/FOUR WHL DRV K1 (NP3) 2001-2007 01
033 12470962 STUD, TRFER CASE ADAP (M10X1.5X27, M10X1.5X18) K1, 2, 3 (NP1, NP2, NP3) 2003-2007 06
034 12547466 SEAL, TRFER CASE INPUT SHF K1 (NP3) 2001-2007 01
035 12474947 SEAL, TRFER CASE FRT OUTPUT SHF K1 (NP3) 2001-2007 01
036 12470561 VENT, TRFER CASE (PLASTIC VENT) K1 (NP3) 2001-2007 01
037 12478150 CASE, TRFER (FRT HALF) K1 (M32, NP3) 2001-2007 01
038 00682653 RING, TRFER CASE FRT OUTPUT SHF FRT BRG RET (INNER) (1.82 FREE I.D. X .094 THK) (4.412) K1 (NP3) 2001-2007 01
039 14037948 PIN, TRFER CASE HALF LOC (DOWEL) K1 (NP3) 2001-2007 02
040 89059659 BEARING, TRFER CASE FRT OUTPUT SHF FRT (ACDelco #89059659) K1, 2, 3 (NP1, NP2, NP3, NP8) 2001-2007 01
041 12547465 RING, TRFER CASE FRT OUTPUT SHF FRT BRG RET (3.36MM) (.064MM THK) (INNER) K1 (NP3) 2001-2007 01
042 12478153 SHAFT, TRFER CASE FRT OUTPUT K1 (M32, NP3) 2001-2007 02
043 12478154 SHAFT, TRFER CASE RR OUTPUT K1 (M32, NP3) 2001-2007 01
044 24228431 COUPLING, TRFER CASE INPUT SHF K1 (M32, NP3) 2001-2006 01
045 12478151 GEAR, TRFER CASE INPUT (W/INPUT SHF) K1 (M32, NP3) 2001-2007 01
046 12547465 RING, TRFER CASE INPUT GR BRG OTR RET (3.36MM) (.064MM THK) (INNER) K1 (NP3) 2001-2007 01
047 89059659 BEARING, TRFER CASE INPUT SHF (ACDelco #89059659) K1 (NP3) 2001-2007 01
048 00682653 RING, TRFER CASE INPUT SHF INR RET (1.82 FREE I.D. X .094 THK) (4.412) K1 (M32, NP3) 2001-2007 01
049 14037948 PIN, TRFER CASE HALF LOC (DOWEL) K1 (NP3) 2001-2007 02
050 88996621 BEARING, TRFER CASE RR OUTPUT SHF INTER (PART OF 3) K1 (M32, NP3) 2001-2007 01
900 15665313 BUSHING, TRFER CASE RR EXTN (PART OF 10) (4.319) K1 (NP3) 2001-2007 01
901 12547173 BEARING, TRFER CASE FRT OUTPUT SHF RR (PART OF 10) (FRT RR OUTPUT SHF RR) K1, 2, 3 (NP1, NP2, NP3, NP8) 2005-2007 01
902 19133158 SEAL, VEH SPD SEN (O RING) (PART OF 12) (I.D. 20MM) (ACDelco #19133158) K1, 2, 3 (LU3, L35, LQ4, LR4, L35, LM7, L59, NP1, NP2, NP3, NP8) 2002-2007 01
