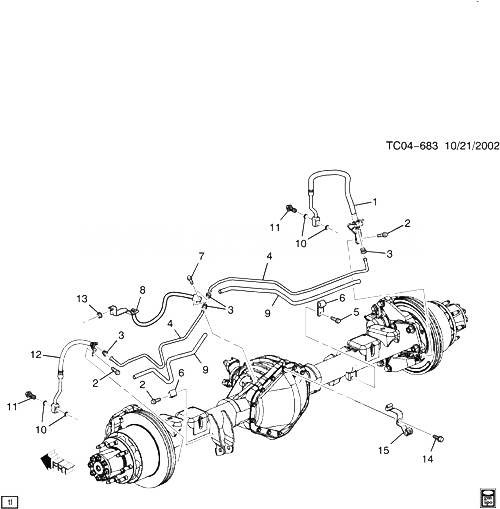

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15884693 |
HOSE, RR BRK (INCLS 10, 11) (ACDelco #15884693) |
CK2 (JH6) |
2003-2006 |
01 |
| 002 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK C/OVR PIPE BRKT) (ACDelco #11570082)
|
2003-2007 |
03 |
|
| 003 |
11588802 |
ГАЙКА, HEX, 3/8-24X9/16, 12.0 O.D., LOW CARB STEEL (RR BRK C/OVR PIPE)
|
2003-2005 |
04 |
|
| 004 |
12547207 |
TUBING, BULK, 3/16 X 20 FT ROLL, STL (RR BRK C/OVR) (8.964)
|
2003-2007 |
AR |
|
| 005 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (PARK BRK RR CBL CLIP) (ACDelco #11570082)
|
2003-2007 |
01 |
|
| 006 |
15148676 |
CLIP, RR BRK C/OVR PIPE (CLOSED LOOP) (DIA 8.75MM, C-TO-C 36.5, WIDTH 20, HOLE 11MM, SAE1008-1010) |
CK1, 2, 3 |
2003-2005 |
02 |
| 007 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK HOSE BRKT) (ACDelco #11570082)
|
2003-2007 |
01 |
|
| 008 |
15884699 |
HOSE, RR BRK (ACDelco #15884699) |
CK2, 3 (JH6, JH7) |
2003-2006 |
01 |
| 009 |
12360513 |
ARMOR SHIELD, BRK PIPE (CUT TO LENGTH) (BRK PIPE) |
|
2003-2007 |
AR |
| 010 |
21012386 |
WASHER, RR BRK HOSE (LH RH) (PART OF 1, 12) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386)
| CK2, 3 (JH6) |
2005-2005 |
01 |
|
| 011 |
11609782 |
БОЛТ, RR BRK HOSE (PART OF 1, 12) (M10X1.5X23.4) |
CK2 (JH6) |
2003-2005 |
01 |
| 012 |
15884708 |
HOSE, RR BRK (INCLS 10, 11) (ACDelco #15884708) |
CK2 (JH6) |
2003-2006 |
01 |
| 013 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (RR BRK HOSE BRKT)
|
2003-2007 |
01 |
|
| 015 |
15733984 |
CLIP, PARK BRK RR CBL |
CK2 (JH6) |
2003-2007 |
01 |
