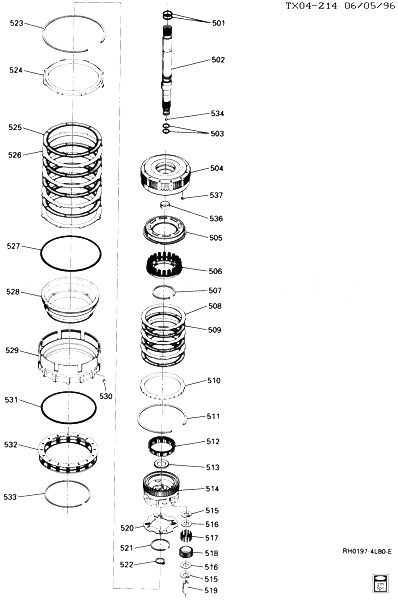

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 501 |
08661894 |
RING, TURB SHF INTER FLUID SEAL (*KIT1) (ACDelco #8661894) |
CK1, 2, 3 (MT1) |
2001-2007 |
02 |
| 502 |
24222184 |
SHAFT, TURB (INCLS 534) (ACDelco #24222184) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 503 |
08661893 |
RING, TURB SHF RR FLUID SEAL (*KIT1) (ACDelco #8661893) |
CK1, 2, 3 (MT1) |
2001-2007 |
02 |
| 504 |
24243329 |
ШЛАНГИ, OVERRUN CLU (INCLS 537) (ACDelco #24243329) |
CK1, 2, 3 (MT1) |
2003-2007 |
01 |
| 505 |
24202092 |
PISTON, OVERRUN CLU (ACDelco #24202092) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 506 |
24216366 |
ПРУЖИНА, OVERRUN CLU (ACDelco #24216366) |
CK1, 2, 3 (MT1) |
2002-2007 |
01 |
| 507 |
24216149 |
RING, OVERRUN CLU SPR RET (ACDelco #24216149) |
CK1, 2, 3 (MT1) |
2002-2007 |
01 |
| 508 |
24204287 |
PLATE, OVERRUN CLU (STEEL) (4.169) (ACDelco #24204287) |
CK1, 2, 3 (MT1) |
2001-2007 |
03 |
| 509 |
08661571 |
PLATE, OVERRUN CLU (COMPL) (*KIT1) (4.169) (ACDelco #8661571) |
CK1, 2, 3 (MT1) |
2001-2007 |
03 |
| 510 |
08681449 |
PLATE, OVERRUN CLU BKG (ACDelco #8681449) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 511 |
08661572 |
RING, OVERRUN CLU BKG PLT RET (6.2IN O.D.) (ACDelco #8661572) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 512 |
12431003 |
ROLLER, O/D CLU (ACDelco #12431003) |
CK1, 2, 3 (MT1) |
2002-2007 |
01 |
| 513 |
|
BEARING, OVERRUN CLU HSG THR (PART OF 514) (*KIT4) |
|
2001-2007 |
|
| 514 |
24215530 |
CARRIER, O/D (INCLS 513, 515-521) (ACDelco #24215530) |
CK1, 2, 3 (MT1) |
2002-2007 |
01 |
| 515 |
|
WASHER, O/D CARR P/GR THR (PART OF 514) (*KIT4) |
|
2001-2007 |
|
| 516 |
|
WASHER, O/D CARR P/GR THR (STEEL) (PART OF 514) (*KIT4) |
|
2001-2007 |
|
| 517 |
|
ROLLER, O/D CARR P/GR BRG (PART OF 514) (*KIT4) |
|
2001-2007 |
|
| 518 |
|
GEAR, O/D CARR PINION (PART OF 514) (*KIT4) |
|
2001-2007 |
|
| 519 |
|
PIN, O/D CARR P/GR (PART OF 514) (*KIT4) |
|
2001-2007 |
|
| 520 |
08661623 |
RETAINER, O/D CARR P/GR PIN (PART OF 514) (*KIT4) (ACDelco #8661623) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 521 |
08679439 |
RING, O/D CARR P/GR PIN RET RET (PART OF 514) (*KIT4) (ACDelco #8679439) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 522 |
08675523 |
RING, O/D CARR RET (SNAP) (4.123) (ACDelco #8675523) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 523 |
24206571 |
RING, 4TH CLU BKG PLT RET (ACDelco #24206571) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 524 |
24205818 |
PLATE, 4TH CLU BKG (ACDelco #24205818) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 525 |
08682802 |
PLATE, 4TH CLU (FIBER) (*KIT1) (ACDelco #8682802) |
CK1, 2, 3 (MT1) |
2001-2007 |
04 |
| 526 |
24204283 |
PLATE, 4TH CLU (FLAT STEEL) (ACDelco #24204283) |
CK1, 2, 3 (MT1) |
2001-2007 |
04 |
| 527 |
24202358 |
SEAL, 4TH CLU PSTN INR (*KIT1, KIT2) (ACDelco #24202358) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 528 |
08661271 |
PISTON, 4TH CLU (ACDelco #8661271) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 529 |
24215124 |
ШЛАНГИ, 4TH CLU (ACDelco #24215124) |
CK1, 2, 3 (LQ4, MT1) |
2001-2007 |
01 |
| 530 |
|
ORIFICE, 4TH CLU (*KIT3) |
|
2001-2007 |
|
| 531 |
24202357 |
SEAL, 4TH CLU PSTN OTR (*KIT1, KIT2) (ACDelco #24202357) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 532 |
08661577 |
ПРУЖИНА, 4TH CLU (4.166) (ACDelco #8661577) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 533 |
08661578 |
RING, 4TH CLU SPR RET (ACDelco #8661578) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 534 |
|
BALL, SHFT DTNT (PART OF 502) |
|
2001-2007 |
|
| 536 |
08623944 |
BUSHING, TURB SHF RR (1.12 OD X .50) (4.161) (ACDelco #8623944) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 537 |
|
VALVE, OVERRUN CLU BALL CHK (PART OF 504) |
|
2002-2007 |
|
| K01 |
24210954 |
TRANSMISSION KIT, AUTO (SERV OVERHAUL W/PLT, GSKT, SEAL) (INCLS 501, 503, 509, 525, 527, 531) (ACDelco #24210954) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| K02 |
24210955 |
GASKET KIT, A/TRNS SERV (INCLS 527, 531) (ACDelco #24210955) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| K03 |
24217454 |
SUPPORT, CTR (INCLS 530) (ACDelco #24217454) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| K04 |
08628202 |
BEARING, O/D CARR THR (INCLS 513, 515-521) (4.176) (ACDelco #8628202) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
