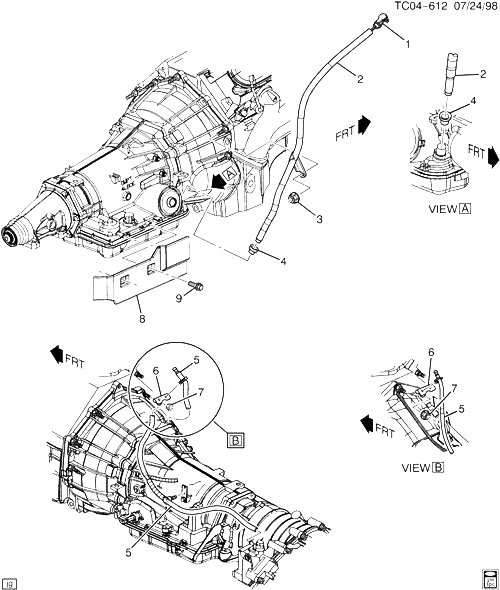

(TC04-612) - 2002-2005 CK TRANSMISSION FILLER TUBE/АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ(M30,M32,MT1) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15183801 INDICATOR, TRANS FLUID LVL (865MM) CK1, 2, 3 (M30, M32) 2001-2005 01
001 15183801 INDICATOR, TRANS FLUID LVL (865MM) CK1, 2, 3 (MN8, MT1) 2002-2005 01
002 15832205 TUBE, TRANS FLUID FIL CK1, 2, 3 (MN8, MT1) 2002-2006 01
002 25789571 TUBE, TRANS FLUID FIL CK1 (M30, M32) 2001-2005 01
003 11516780 ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (TRANS FLUID FIL TUBE) (8.917) 1999-2007 01
004 01259475 SEAL, TRANS FLUID FIL TUBE (ACDelco #1259475) CK1, 2, 3 (MN8, MT1, M30, M32, M33) 2004-2005 01
005 15820590 HOSE, TRANS VENT CK1, 2, 3 (MN8, MT1, M30, M32, M33) 2004-2005 01
006 15769074 BRACKET, TRANS VENT HOSE CLIP (4.510) CK1, 2, 3 (MN8, MT1) 2002-2006 01
006 15854320 BRACKET, TRANS VENT HOSE CLIP CK1 (M30, M32, M33) 2004-2005 01
007 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (8.915) (ACDelco #11514596) 1999-2007 01
008 15045202 SHIELD, TRANS HT CK1 (M30, M33) 2004-2007 01
009 15029928 БОЛТ, TRANS H/SHLD (M8X1.25X12) CK1 (M30, M33) 2004-2007 02
