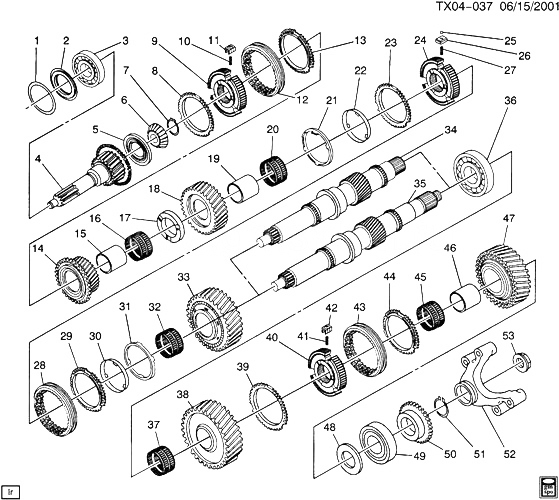

(TX04-037) - 2001-2006 CK2,3 6-ТИ СКОРОСТНАЯ МКПП (ML6) ЧАСТЬ 3 INPUT SHAFT MAIN SHAFT COMPONENTS CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12479806 SHIM KIT, INPUT SHF BRG CK2, 3 (ML6) 2001-2006 02
002 88984343 DEFLECTOR, INPUT GR OIL (FRONT) CK2, 3 (ML6) 2001-2006 01
003 12479804 BEARING, INPUT SHF CK2, 3 (ML6) 2001-2006 01
004 88984341 SHAFT, INPUT CK2, 3 (ML6) 2001-2006 01
005 89048563 DEFLECTOR, INPUT GR OIL (REAR) CK2, 3 (ML6) 2001-2006 01
006 88984373 BEARING, MAIN SHF FRT CK2, 3 (ML6) 2001-2006 01
007 RING KIT, MAIN SHF 4TH GR RET 2001-2006
008 88984347 RING, 4TH 5TH GR SYN HUB RET (PART OF 9) CK2, 3 (ML6) 2001-2006 03
009 89048569 SYNCHRONIZER, 4TH 5TH GR (INCLS 8, 10-13) CK2, 3 (ML6) 2001-2006 01
010 88984350 ПРУЖИНА, 4TH 5TH GR SYN RET (PART OF 9) (4.027) CK2, 3 (ML6) 2001-2006 09
011 88984351 INSERT, 4TH 5TH GR SYN (PART OF 9) (4.046) CK2, 3 (ML6) 2001-2006 01
012 88984349 SLEEVE, 4TH 5TH GR SYN (PART OF 9) CK2, 3 (ML6) 2001-2006 02
013 88984347 RING, 4TH 5TH GR SYN HUB RET (PART OF 9) CK2, 3 (ML6) 2001-2006 03
014 88984371 GEAR, 4TH CK2, 3 (ML6) 2001-2006 01
015 88984368 BUSHING, 4TH GR CK2, 3 (ML6) 2001-2006 02
016 89048568 BEARING, 4TH GR (ACDelco #89048568) CK2, 3 (ML6) 2001-2006 01
017 88984370 WASHER, 3RD GR THR CK2, 3 (ML6) 2001-2006 01
018 88984369 GEAR, 3RD CK2, 3 (ML6) 2001-2006 01
019 88984368 BUSHING, 3RD GR CK2, 3 (ML6) 2001-2006 02
020 89048568 BEARING, 3RD GR (ACDelco #89048568) CK2, 3 (ML6) 2001-2006 01
021 88984361 RING, 3RD GR INTER BLOCKING CK2, 3 (ML6) 2001-2006 02
022 88984360 RING, 3RD GR INR BLOCKING CK2, 3 (ML6) 2001-2006 02
023 88984362 RING, 2ND 3RD GR SYN HUB RET (4.383) CK2, 3 (ML6) 2001-2006 02
024 89048567 SYNCHRONIZER, 2ND 3RD GR CK2, 3 (ML6) 2001-2006 01
025 88984365 BALL, 2ND 3RD GR SYN DTNT (4.046) CK2, 3 (ML6) 2001-2006 03
026 88984364 INSERT, 2ND 3RD GR SYN CK2, 3 (ML6) 2001-2006 03
027 88984366 ПРУЖИНА, 2ND 3RD GR SYN (4.008) CK2, 3 (ML6) 2001-2006 03
028 88984367 SLEEVE, 2ND 3RD GR SYN CK2, 3 (ML6) 2001-2006 01
029 88984362 RING, 2ND 3RD GR SYN HUB RET (4.383) CK2, 3 (ML6) 2001-2006 02
030 88984360 RING, 2ND GR INR BLOCKING CK2, 3 (ML6) 2001-2006 02
031 88984361 RING, 2ND GR INTER BLOCKING CK2, 3 (ML6) 2001-2006 02
032 88984358 BEARING, 2ND GR CK2, 3 (ML6) 2001-2006 01
033 89048566 GEAR, 2ND CK2, 3 (ML6) 2001-2006 01
034 88984418 SHAFT, MAIN K2, 3 (ML6) 2001-2006 01
036 12479830 BEARING, MAIN SHF CTR CK2, 3 (ML6) 2001-2006 01
037 88984374 BEARING, 1ST GR (4.431) CK2, 3 (ML6) 2001-2006 04
038 88984380 GEAR, 1ST CK2, 3 (ML6) 2001-2006 01
039 88984378 RING, 1ST GR RET (4.419) CK2, 3 (ML6) 2001-2006 02
040 89048570 SYNCHRONIZER, 1ST REV GR CK2, 3 (ML6) 2001-2006 01
041 88984350 ПРУЖИНА, 1ST REV GR SYN (4.027) CK2, 3 (ML6) 2001-2006 09
042 88984351 INSERT, 1ST REV SYN (4.046) CK2, 3 (ML6) 2001-2006 09
043 88984379 SLEEVE, 1ST REV GR SYN CK2, 3 (ML6) 2001-2006 01
044 88984378 RING, REV GR RET CK2, 3 (ML6) 2001-2006 02
045 88984374 BEARING, REV GR CK2, 3 (ML6) 2001-2006 04
046 88984375 BUSHING, REV GR BRG CK2, 3 (ML6) 2001-2006 01
047 88984376 GEAR, REV CK2, 3 (ML6) 2001-2006 01
049 88984419 BEARING, MAIN SHF RR K2, 3 (ML6) 2001-2006 01
051 88934644 RING KIT, REV GR RET K2, 3 (ML6) 2001-2006 01
