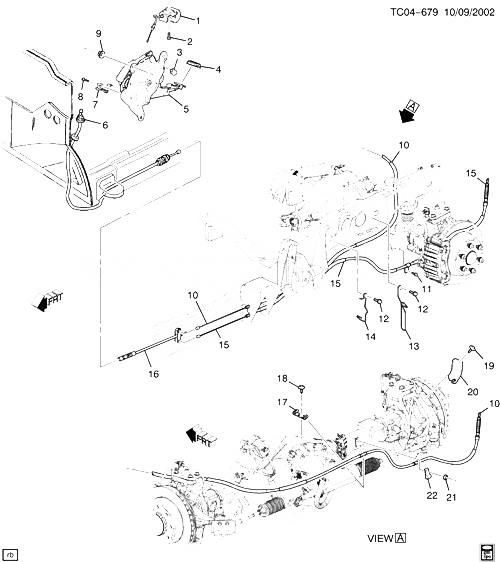

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15226272 |
HANDLE, PARK BRK REL (PART OF 5) (INCLS CABLE) (*KIT1)
| CK2 (06-36) (JH2, JH6) |
2005-2005 |
01 |
|
| 002 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (PARK BRK REL HDL HSG) |
|
2002-2005 |
01 |
| 003 |
|
BUMPER, FOOT PARK BRK PED (PART OF 5) (*KIT1) |
|
2002-2005 |
|
| 003 |
|
BUMPER, FOOT PARK BRK PED (PART OF 5) (*KIT1) |
|
2003-2005 |
|
| 003 |
|
BUMPER, FOOT PARK BRK PED (PART OF 5) (*KIT1) |
|
2005-2005 |
|
| 004 |
89059136 |
PAD, PARK BRK LVR PED (PART OF 5) (*KIT1) |
CK2 (06) (JH2, JH6) |
2005-2005 |
01 |
| 005 |
15143446 |
LEVER, PARK BRK (INCLS 3, 4, 6-8) (INCLS BUMPER, CABLE PAD) (*KIT1) |
CK1, 2 (06) (JH2, JH6) |
2005-2005 |
01 |
| 006 |
|
CABLE, PARK BRK FRT (PART OF 5) (*KIT1) |
|
2002-2005 |
|
| 006 |
|
CABLE, PARK BRK FRT (PART OF 5) (*KIT1) |
|
2003-2005 |
|
| 006 |
|
CABLE, PARK BRK FRT (PART OF 5) (*KIT1) |
|
2005-2005 |
|
| 007 |
15045983 |
SWITCH, PARK BRK IND (PART OF 5) (*KIT1) |
CK1, 2, 3 |
2002-2005 |
01 |
| 008 |
09418944 |
SCREW, HWH, SELF TAP, #10-16X1, 3/8 O.D., M6010M, ZN (PART OF 5) (*KIT1) |
|
2002-2005 |
01 |
| 009 |
11516780 |
ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (PARK BRK CONT MDL) (8.917)
|
2002-2005 |
03 |
|
| 010 |
15174713 |
CABLE, PARK BRK RR (INCLS 22) (ACDelco #15174713) |
CK259 (06) (NYS) |
2003-2005 |
01 |
| 011 |
11508534 |
БОЛТ, HFH, M8X1.25X16, 16.8 O.D., MACH PT, 6171M, POR (PARK BRK RR CBL CLIP)
|
2002-2005 |
01 |
|
| 012 |
11517560 |
SCREW, FLAT WA (NRW) AND HX WA HD, M8X1.25X25 (PARK BRK RR CBL GDE) |
|
2002-2005 |
02 |
| 013 |
15087067 |
GUIDE, PARK BRK RR CBL (RH REAR FRAME RAIL) |
CK1 (06-36) |
2003-2005 |
01 |
| 013 |
15757271 |
GUIDE, PARK BRK RR CBL (REAR) |
CK2 (06-36) |
2003-2005 |
01 |
| 014 |
15046320 |
GUIDE, PARK BRK RR CBL (FRONT) |
CK2 (EXC HVY) |
2003-2005 |
01 |
| 014 |
15049571 |
GUIDE, PARK BRK RR CBL (FRONT) |
CK1 (06-36) |
2002-2005 |
01 |
| 015 |
15102288 |
CABLE, PARK BRK RR (1876.2MM LG) (ACDelco #15102288) |
CK259 (06) (NYS) |
2003-2005 |
01 |
| 016 |
25890197 |
CABLE, PARK BRK INTER (W/EQUALIZER) (ACDelco #25890197) |
CK259 (06) |
2005-2005 |
01 |
| 018 |
26094854 |
БОЛТ, PARK BRK CBL CLIP |
CK2 (06) (NYS) |
2004-2005 |
01 |
| 019 |
26091740 |
БОЛТ, PARK BRK RR CBL BRKT (6.234) |
CK2 (06) (GT4, GT5, G86, NYS) |
2003-2005 |
02 |
| 020 |
89038570 |
BRACKET, PARK BRK RR CBL (S/KNU MTG) |
CK2 (06) (NYS) |
2004-2005 |
01 |
| 021 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (PARK BRK RR CBL)
|
2002-2005 |
01 |
|
| 022 |
|
CLIP, PARK BRK RR CBL (PART OF 10) |
|
2002-2005 |
|
| 022 |
|
CLIP, PARK BRK RR CBL (PART OF 10) |
|
2003-2005 |
|
| 022 |
|
CLIP, PARK BRK RR CBL (PART OF 10) |
|
2005-2005 |
|
| K01 |
25780186 |
MODULE, PARK BRK CONT (INCLS 1, 3-5, 6-8) (INCLS HANDLE, LEVER, CABLE SWITCH) |
K2 (06-36) (JH2, JH6) |
2005-2005 |
01 |
