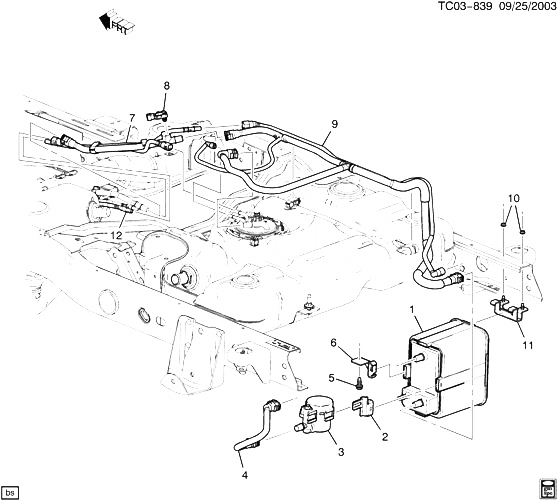

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15112165 |
CANISTER, EVAP EMIS (ACDelco #215-467) |
K2 (06-36) (LQ4, L18) |
2004-2005 |
01 |
| 002 |
15207029 |
BRACKET, EVAP EMIS CNSTR VENT SOL VLV (SOLENOID BRACKET) |
CK2 (06-36) (LQ4, L18, EVA) |
2004-2005 |
01 |
| 003 |
25932571 |
VALVE, EVAP EMIS CNSTR CONT (ACDelco #214-2149)
| K2 (06-36) (LQ4, L18) |
2004-2006 |
01 |
|
| 004 |
15077251 |
HOSE, EVAP EMIS CNSTR VENT (3.130) |
CK2 (06-36) (LQ4, L18) |
2004-2005 |
01 |
| 005 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (EVAP EMIS CNSTR) (ACDelco #11570082)
|
2004-2006 |
01 |
|
| 006 |
15219766 |
BRACKET, EVAP EMIS CNSTR |
K2 (06-36) (LQ4, L18) |
2004-2006 |
01 |
| 007 |
24100447 |
HOSE, EVAP EMIS (INCLS 8) |
K2 (06-36) |
2004-2005 |
01 |
| 008 |
16238399 |
SENSOR, EVAP EMIS CNSTR PURGE VAC DIAGN (PART OF 7) (3.107) (ACDelco #16238399)
| CK2 (06-36) |
2004-2006 |
01 |
|
| 009 |
15872644 |
HOSE, FUEL FEED EVAP EMIS |
CK2 (06-36) (LQ4, L18) |
2004-2006 |
01 |
| 010 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (EVAP EMIS CNSTR) |
|
2004-2006 |
02 |
| 011 |
15844131 |
BRACKET, EVAP EMIS CNSTR VENT SOL VLV (CANISTER BRACKET) |
CK2 (06) (LQ4, L18) |
2004-2005 |
01 |
| 012 |
|
HOSE, FUEL FEED EVAP EMIS RTN (СМ. ГРУППУ 03.000 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ-FRONT ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2004-2006 |
|
