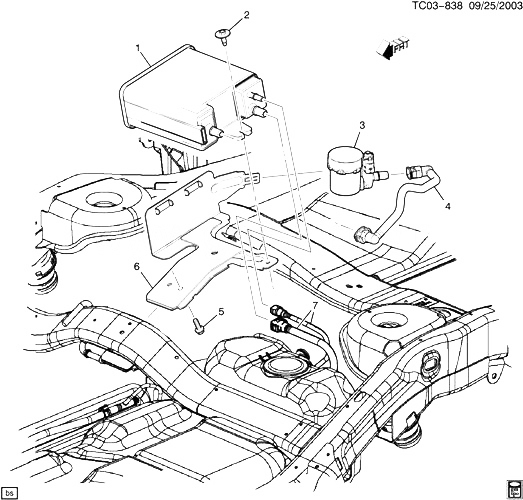

(TC03-838) - 2005-2006 CK1(06-36) УГОЛЬНЫЙ ФИЛЬТР СОПРЯЖЕННЫЕ ДЕТАЛИ (LR4/4.8V,LM7/5.3T,L59/5.3Z,LQ4/6.0U,LQ9/6.0N) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12573649 CANISTER, EVAP EMIS (ACDelco #215-457) CK159 (06-36) (LM7, LQ4, LQ9, L59) 2005-2006 01
001 15109431 CANISTER, EVAP EMIS (ACDelco #215-464) CK157 (06) (LM7, LQ4, LQ9, LR4, L59) 2005-2006 01
002 10200334 БОЛТ, EVAP EMIS CNSTR BRKT (M8X1.25X30) (W/FLAT WASHER) (12.243) CK157 (06) (LM7, LQ4, LQ9, LR4, L59) 2005-2006 01
002 10200334 БОЛТ, EVAP EMIS CNSTR BRKT (M8X1.25X30) (W/FLAT WASHER) (12.243) CK159 (06-36) (LM7, LQ4, LQ9, L59) 2005-2006 01
002 10200334 БОЛТ, EVAP EMIS CNSTR BRKT (M8X1.25X30) (W/FLAT WASHER) (12.243) CK157 (06) (LM7, LQ4, LQ9, LR4, L59) 2005-2006 01
002 10200334 БОЛТ, EVAP EMIS CNSTR BRKT (M8X1.25X30) (W/FLAT WASHER) (12.243) CK159 (06-36) (LM7, LQ4, LQ9, L59) 2005-2006 01
003 25932571 SOLENOID, EVAP EMIS CNSTR (ACDelco #214-2149) CK157 (06) (LM7, LQ4, LQ9, LR4, L59) 2005-2006 01
003 25932571 SOLENOID, EVAP EMIS CNSTR (ACDelco #214-2149) CK159 (06-36) (LM7, LQ4, LQ9, L59) 2005-2006 01
004 15104151 HOSE, EVAP EMIS CNSTR VENT K157 (06) (LM7, LQ4, LQ9, LR4, L59) 2005-2005 01
004 15104152 HOSE, EVAP EMIS CNSTR VENT CK159 (06-36) (LM7, LQ4, LQ9, L59) 2005-2006 01
005 15052033 BOLT-HEX W/FL WA M8X1.25X26, 15 THD, 21-OD, W/ADH 6175, 9.8, GM6280M (ZN-C (EVAP EMIS CNSTR) 2004-2006 02
006 15088347 BRACKET, EVAP EMIS CNSTR CK159 (06-36) (LM7, LQ4, LQ9, L59) 2005-2006 01
006 15113366 BRACKET, EVAP EMIS CNSTR CK157 (06) (LM7, LQ4, LQ9, LR4) 2004-2006 01
006 15113366 BRACKET, EVAP EMIS CNSTR CK157 (06) (L59) 2005-2006 01
007 25860207 HOSE, EVAP EMIS CNSTR PURGE CK159 (06-36) (LM7, LQ4, LQ9) 2004-2006 01
007 88963670 HOSE, EVAP EMIS CNSTR PURGE CK159 (06-36) (L59) 2005-2006 01
007 88963671 HOSE, EVAP EMIS CNSTR PURGE CK157 (06) (L59) 2005-2005 01
007 88983154 HOSE, EVAP EMIS CNSTR PURGE (3.145) CK157 (06) (LM7, LQ4, LQ9, LR4) 2004-2006 01
