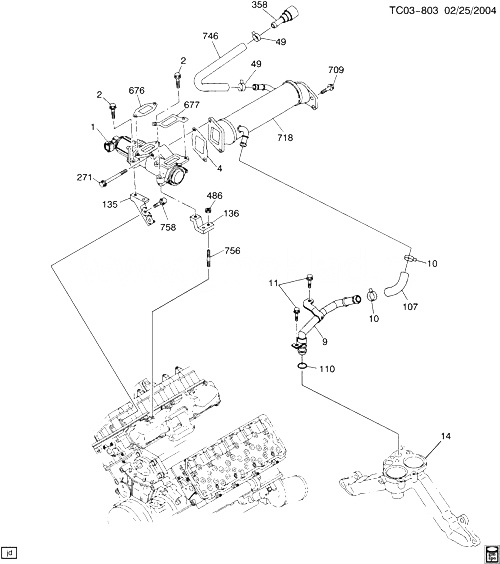

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
97303761 |
VALVE, EGR (3.680) (ACDelco #214-2109) |
CK2, 3 (LLY) |
2004-2005 |
01 |
| 002 |
|
БОЛТ, EGR VLV BRKT |
|
2004-2005 |
|
| 004 |
97303655 |
GASKET, EGR VLV (BOTTOM EGR VALVE TO TOP EGR COOLER) |
CK2, 3 (LLY) |
2004-2005 |
01 |
| 009 |
97303629 |
PIPE, HTR INL |
CK2, 3 (LLY) |
2004-2005 |
01 |
| 010 |
|
CLAMP, HOSE HTR INL |
|
2004-2005 |
|
| 011 |
|
БОЛТ, HOSE HTR INL |
|
2004-2005 |
|
| 014 |
97383583 |
ШЛАНГИ, ENG COOL THERM (ACDelco #15-80774) |
CK2, 3 (LLY) |
2004-2005 |
01 |
| 049 |
|
CLAMP, HOSE EGR VLV |
|
2004-2005 |
|
| 107 |
97304167 |
HOSE, HTR INL |
CK2, 3 (LLY) |
2004-2005 |
02 |
| 110 |
94011605 |
SEAL, HTR OTLT PIPE (O RING) |
CK2, 3 (LLY) |
2004-2005 |
01 |
| 136 |
97320778 |
BRACKET, EGR VLV ADAP |
CK2, 3 (LLY) |
2004-2005 |
01 |
| 271 |
|
БОЛТ, EGR VALVE CLR GSKT |
|
2004-2005 |
|
| 358 |
15032062 |
CONNECTOR, HTR INL HOSE (NATURAL) (74.93MM LONG) (QUICK CONNECT ASM) |
CK2, 3 (LLY) |
2004-2005 |
01 |
| 486 |
|
ГАЙКА, BRKT EGR VLV ADAP |
|
2004-2005 |
|
| 676 |
97303656 |
GASKET, EGR PIPE (LOCATED TOWARDS THE MIDDLE OF THE EGR) |
CK2, 3 (LLY) |
2004-2005 |
01 |
| 677 |
97318478 |
GASKET, EGR PIPE (LOCATED AT THE END OF THE EGR) |
CK2, 3 (LLY) |
2004-2005 |
01 |
| 709 |
|
БОЛТ, CLR EGR VLV |
|
2004-2005 |
|
| 718 |
97303654 |
COOLER, EGR VLV |
CK2, 3 (LLY) |
2004-2005 |
01 |
| 746 |
97333410 |
HOSE, EGR VLV |
CK2, 3 (LLY) |
2004-2005 |
01 |
| 756 |
|
STUD, BRKT EGR VLV ADAP |
|
2004-2005 |
|
| 758 |
|
БОЛТ, BRKT EGR VLV ADAP |
|
2004-2005 |
|
