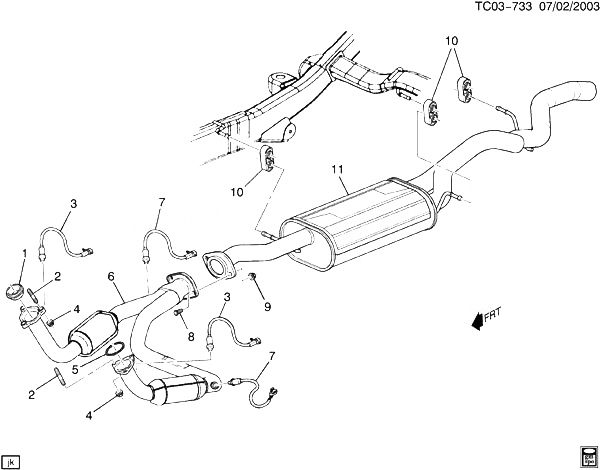

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15035747 |
SEAL, EXH MANIF PIPE
| CK1 (LM7, LR4, LU3, L33, L59) |
2005-2006 |
01 |
|
| 002 |
11589264 |
STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (EXH MANIF PIPE)
|
2000-2006 |
06 |
|
| 003 |
12587785 |
SENSOR, HTD OXY (POSN 2) (PRE CONVERTER) (ACDelco #213-1702)
| CK1 (LM7, L33, L59) |
2005-2005 |
02 |
|
| 004 |
15709703 |
ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MANIF PIPE)
|
2000-2006 |
06 |
|
| 005 |
15077362 |
SEAL, EXH MANIF PIPE
| CK1, 3 (LM7, LR4, LU3, L33, L59) |
2003-2006 |
01 |
|
| 006 |
19206638 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (INCLS 8) (3.685) |
CK1 (LM7, L33) |
2005-2005 |
01 |
| 006 |
19206638 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (INCLS 8) |
CK1 (LM7, L33) |
2005-2005 |
01 |
| 007 |
12576131 |
SENSOR, HTD OXY (POSN 3) (POST CONVERTER) (ACDelco #213-1699)
| CK1 (LM7, L33, L59) |
2005-2005 |
02 |
|
| 008 |
15028620 |
STUD, EXH PIPE (PART OF 6) (M10X1.5X30MM) (BUTTON HEAD)
| CK1 (LM7, LR4, L59, LU3, L33) |
2005-2006 |
02 |
|
| 009 |
15709703 |
ГАЙКА, EXH MUFF (HEX 10X1.5 THD) (NON-LUBRICATED) (8.915)
| CK1, 2, 3 |
2001-2006 |
AR |
|
| 010 |
15092802 |
INSULATOR, EXH MUFF HNGR
| CK1, 2, 3 |
2001-2006 |
04 |
|
| 011 |
15232529 |
MUFFLER, EXH (W/EXH PIPE TAIL PIPE)
| CK157 (06) (LM7, N12) |
2005-2006 |
01 |
|
