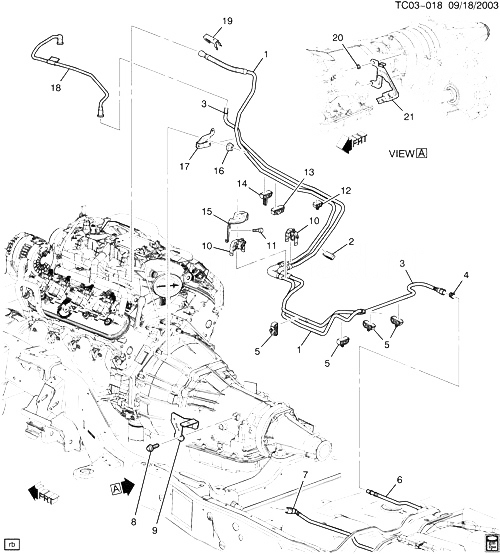

(TC03-018) - 2004-2006 CK1(06-36) СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ-FRONT (LM7/5.3T,LR4/4.8V,LQ4/6.0U,LQ9/6.0N) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10381608 HOSE, FUEL FEED (INCLS 5) CK159, 259, 359 (LM7, LQ4, LR4, L18, EVA) 2004-2006 01
001 15103783 HOSE, FUEL FEED (INCLS 5) (FRONT) CK1 (06-36) (LM7, LQ4, LQ9, LR4) 2004-2005 01
002 15168649 CLIP, FUEL FEED EVAP EMIS RTN HOSE (ANTI-RATTLE) CK1 (06-36) (LM7, LQ4, LQ9, LR4) 2004-2006 02
003 15172669 HOSE, EVAP EMIS (PART OF FUEL FILL NECK ASM) CK157 (06) (LM7, LQ4, LQ9, LR4) 2004-2006 01
003 15254559 HOSE, EVAP EMIS CK1 (06-36) (LM7, LQ4, LQ9, LR4) 2004-2006 01
004 RETAINER, FUEL FEED PIPE CONN (PART OF 3) 2004-2006
005 15168646 CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 1, 3) (2 TUBE) CK1 (06-36) (LM7, LQ4, LQ9, LR4) 2004-2006 03
006 HOSE, EVAP EMIS CNSTR PURGE (СМ. ГРУППУ 03.000 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ-REAR ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2006
007 HOSE, FUEL FEED (СМ. ГРУППУ 03.000 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ-REAR ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (PART OF FUEL FILL NECK ASM) (3.120) 2004-2006
008 11516703 БОЛТ, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (FUEL FEED RTN FRT HOSE BRKT) (8.977) 2004-2006 01
009 BRACKET, FUEL FEED RTN FRT HOSE (СМ. ГРУППУ 03.000 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ-FRONT ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (3.163) 2004-2006
010 15085404 CLIP, FUEL FEED EVAP EMIS RTN HOSE (AT HOSE/PIPE CONNECTION) CK1 (06-36) (LM7, LQ4, LQ9, LR4) 2004-2006 02
011 11517895 BOLT-HEX, M8X1.25X29.4, 24 OD, 6202M, 7114M, TAP, TR-PT (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) 2004-2006 01
012 15085405 CLIP, FUEL FEED EVAP EMIS RTN HOSE (CLIP - 1.36 LENGTH, MATL NYLON BLACK) CK1 (06-36) (LM7, LQ4, LQ9, LR4) 2004-2006 01
013 15168649 CLIP, FUEL FEED EVAP EMIS RTN HOSE (ANTI-RATTLE) CK1 (06-36) (LM7, LQ4, LQ9, LR4) 2004-2006 01
014 15168648 CLIP, FUEL FEED EVAP EMIS RTN HOSE (W/RETAINER) CK1 (06-36) (LM7, LQ4, LQ9, LR4) 2004-2006 01
015 15001960 BRACKET, FUEL FEED EVAP EMIS RTN PIPE CLIP CK1 (06-36) (LM7, LQ4, LQ9, LR4) 2004-2006 01
016 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED RTN FRT HOSE BRKT) (8.915) (ACDelco #11514596) 2004-2006 01
017 15085402 BRACKET, FUEL FEED EVAP EMIS RTN HOSE CK1 (06-36) (LM7, LQ4, LQ9, LR4) 2004-2006 01
018 12575527 TUBE, EVAP EMIS CNSTR PURGE CK1, 2, 3 (LM7, LQ4, LQ9, LR4) 2004-2006 01
019 22695614 RETAINER, FUEL FEED HOSE CONN (13 X 19 X 36MM) (ONE TUBE) CK1, 2, 3 2005-2006 01
020 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383) 2004-2006 02
021 15033698 BRACKET, FUEL FEED RTN PIPE K1 2005-2006 01
