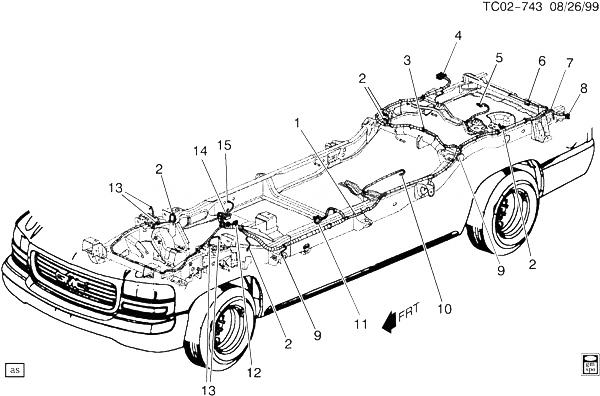

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15249987 |
HARNESS, CHAS WRG (INCLS 7, 9) |
CK259 (06-36) (EVA, Z85) |
2005-2006 |
01 |
| 002 |
12085538 |
CONNECTOR, SEN-ELEK SUSP POSN (GRAY) (3-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT148) |
CK259 |
2004-2006 |
01 |
| 002 |
12117025 |
CONNECTOR, SEN-ELEK SUSP POSN (RECTANGLE W/SIDE TABS) (BLACK) (3-WAY FEMALE) (W/LEADS) (2.383) (ACDelco #PT420) |
CK1, 2 |
2002-2006 |
01 |
| 004 |
15306332 |
CONNECTOR, SOL-S/ABS ELEK SUSP CONT ACTR (SHROUDED) (BLACK) (2-WAY FEMALE) (W/LEADS) (W/O TPA) (FRT) (ACDelco #PT1385) |
CK1, 2 (06-36) |
2003-2006 |
02 |
| 004 |
88986417 |
CONNECTOR, SOL-S/ABS ELEK SUSP CONT ACTR (NATURAL) (90 DEG 2-WAY FEMALE W/LOCKING FEATURES LEADS *COMPLETE*) (ACDelco #PT1594) |
CK1, 2 |
2002-2005 |
01 |
| 005 |
19152589 |
CONNECTOR, MDL-FUEL SDR CONT (REAR TANK) (BLACK) (4-WAY FEMALE) (W/LEADS) (OVAL) (7.450) (ACDelco #PT2241) |
CK1, 2, 3 |
2004-2006 |
01 |
| 006 |
12065172 |
CONNECTOR, INLINE-TO TRLR HARN (1-WAY FEMALE M/P280) (2.535) |
CK2, 3 |
2003-2005 |
01 |
| 006 |
15306164 |
CONNECTOR, INLINE-TO TRLR HARN (BLACK) (7-WAY FEMALE) (W/LEADS) (ACDelco #PT1322) |
CK1, 2, 3 |
2002-2006 |
01 |
| 007 |
|
GROUND WIRE (PART OF 1) |
|
2002-2006 |
|
| 008 |
19167008 |
CONNECTOR, BLK-RR LP WRG HARN JUNC (BLUE) (8-WAY FEMALE SEALED W/LEADS) (14GA WIRES) (13.100) (ACDelco #PT2274) |
CK1, 2 |
2003-2006 |
01 |
| 009 |
|
GROUND WIRE (PART OF 1) |
|
2002-2006 |
|
| 010 |
19152589 |
CONNECTOR, MDL-FUEL SDR CONT (FRONT TANK) (BLACK) (4-WAY FEMALE) (W/LEADS) (OVAL) (7.450) (ACDelco #PT2241) |
CK1, 2, 3 |
2004-2006 |
01 |
| 010 |
88986451 |
CONNECTOR, SEN-F/TNK PRESS (OVAL) (BLACK) (3-WAY FEMALE MP150) (W/LEADS) (2.535) (ACDelco #PT1604) |
CK1, 2, 3 |
2002-2006 |
01 |
| 011 |
12085212 |
CONNECTOR, MDL-ELEK BRK CONT (BLACK) (2-WAY FEMALE) (W/LEADS) (M/P 480) (2.535) (ACDelco #PT1116) |
CK1, 2, 3 (EXC JL4) |
2003-2006 |
01 |
| 011 |
88986458 |
CONNECTOR, MDL-ELEK BRK CONT (BLACK) (20-WAY FEMALE) (W/O LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 011 |
88987916 |
CONNECTOR, MDL-ELEK BRK CONT (16-WAY FEMALE) (W/O LEADS) (3.670) (ACDelco #88987916) |
CK1, 2, 3 (EXC JL4) |
2002-2006 |
01 |
| 011 |
89046639 |
CONNECTOR, MDL-ELEK BRK CONT (46-WAY FEMALE GT 280 M/P 480 MIC/100W) |
CK1, 2 (JL4) |
2003-2006 |
01 |
| 012 |
12085487 |
CONNECTOR, INLINE-TO I/P HARN (BLACK) (4-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT109) |
CK1, 2, 3 |
2002-2005 |
01 |
| 012 |
12085669 |
CONNECTOR, INLINE-TO I/P HARN (BLACK) (1-WAY MALE) (W/LEADS) (ACDelco #PT1223) |
CK1, 2, 3 |
2002-2006 |
01 |
| 012 |
12101827 |
CONNECTOR, INLINE-TO I/P HARN (BLACK) (8-WAY MALE) (W/LEADS) (2.535) (ACDelco #PT219)
| CK1, 2, 3 |
2003-2006 |
01 |
|
| 012 |
12101852 |
CONNECTOR, INLINE-TO I/P HARN (M/P 150) (BLACK) (6-WAY MALE) (W/LEADS) (2.535) (ACDelco #PT244) |
CK1, 2, 3 |
2002-2006 |
01 |
| 012 |
12129135 |
CONNECTOR, INLINE-TO I/P HARN (BLACK) (4-WAY MALE) (W/O LEADS) (2.694) |
CK1, 2, 3 |
2003-2006 |
01 |
| 012 |
12129490 |
CONNECTOR, INLINE-TO I/P HARN (FROM LH FRT DR) (BLACK) (3-WAY MALE) (W/O LEADS) (CLIP SLOT) (13.100) |
CK1, 2 |
2002-2006 |
01 |
| 012 |
15300003 |
CONNECTOR, INLINE-TO I/P HARN (BLACK) (3-WAY MALE) (W/O LEADS) (M/P 280-BODY ONLY) |
K1, 2, 3 |
2003-2005 |
01 |
| 012 |
15304692 |
CONNECTOR, INLINE-TO I/P HARN (BLACK) (18-WAY FEMALE) (W/O LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 012 |
15306039 |
CONNECTOR, INLINE-TO I/P HARN (SEAT HARN TO BODY HARN, GT150/280) (16-WAY MALE W/LEADS) (16.490) (ACDelco #PT1199) |
CK1, 2, 3 |
2003-2006 |
01 |
| 012 |
15306231 |
CONNECTOR, INLINE-TO I/P HARN (GRAY) (24-WAY MALE W/O LEADS) (9.656) |
CK1, 2, 3 |
2003-2006 |
01 |
| 012 |
15306371 |
CONNECTOR, INLINE-TO I/P HARN (FROM HDLNG HARN, GT150) (BLACK) (16-WAY MALE) (W/LEADS) (13.100) (ACDelco #PT1423) |
CK1, 2, 3 |
2002-2006 |
01 |
| 012 |
15317322 |
CONNECTOR, INLINE-TO I/P HARN (GRAY) (22-WAY MALE) (W/O LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 012 |
19151490 |
CONNECTOR, INLINE-TO I/P HARN (10-WAY MALE) (W/O LEADS) (W/TPA CAVITY PLUG) (13.100) |
CK1, 2, 3 |
2003-2006 |
01 |
| 012 |
19153767 |
CONNECTOR, INLINE-TO I/P HARN |
CK1, 2 (06-36) |
2003-2006 |
01 |
| 012 |
88986252 |
CONNECTOR, INLINE-TO I/P HARN (BLACK) (12-WAY MALE) (W/LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 012 |
88986267 |
CONNECTOR, INLINE-TO I/P HARN (FROM FUSE BLK BRK JPR) (BLACK) (34.6MM WIDE) (12-WAY FEMALE) (W/LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 012 |
88987501 |
CONNECTOR, INLINE-TO I/P HARN (12-WAY MALE GT) (W/O LEADS) |
K1, 2, 3 |
2003-2006 |
01 |
| 012 |
88987519 |
CONNECTOR, INLINE-TO I/P HARN (16-WAY MALE) (W/O LEADS) |
CK1, 2, 3 |
2004-2005 |
01 |
| 012 |
88987998 |
CONNECTOR, INLINE-TO I/P HARN (YELLOW) (4-WAY MALE) (M/P 280) (W/LEADS) (16.712) (ACDelco #PT2038) |
CK1, 2, 3 |
2003-2006 |
02 |
| 012 |
88988307 |
CONNECTOR, INLINE-TO I/P HARN (BLACK) (40-WAY MALE) (W/CAM LVR, TPA STABLZR) |
CK1, 2, 3 |
2002-2006 |
01 |
| 012 |
89047431 |
CONNECTOR, INLINE-TO I/P HARN (BLACK) (38-WAY FEMALE) (W/O LEADS) |
CK1, 2 |
2005-2006 |
01 |
| 013 |
12102747 |
CONNECTOR, INLINE-TO WHL SPD SEN (CHAS HARN) (BLACK) (ACCEPTS 1.5MM TERMS) (2-WAY FEMALE) (M/P150) (W/LEADS) (REAR) (1.203) (ACDelco #PT374) |
CK1, 2, 3 |
2002-2006 |
02 |
| 014 |
88986443 |
CONNECTOR, BLK-ENG WRG JUNC (BLACK) (2-WAY FEMALE W/LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 014 |
88986444 |
CONNECTOR, BLK-ENG WRG JUNC (GRAY) (2-WAY FEMALE W/LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 014 |
88986445 |
CONNECTOR, BLK-ENG WRG JUNC (GREEN) (2-WAY FEMALE W/LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 015 |
88987993 |
CONNECTOR, SW-BRK FLUID LVL IND (GRAY) (2-WAY FEMALE) (W/LEADS) (ACDelco #PT1798) |
CK1, 2, 3 |
2002-2006 |
01 |
