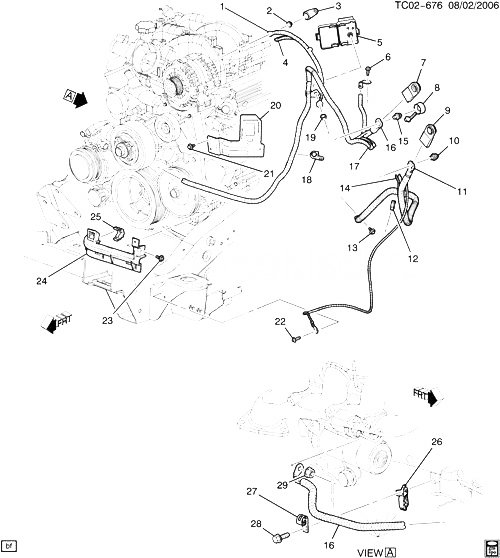

(TC02-676) - 2001-2006 CK2,3 АККУМУЛЯТОР ПРОВОДА (L18/8.1G) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15372001 CABLE, GEN (393.7MM LG) (2.480) (ACDelco #4GJB8FS) CK2, 3 (L18) 2001-2006 01
001 15372001 CABLE, GEN (393.7MM LG) (ACDelco #4GJB8FS) CK2, 3 (L18) 2001-2006 01
002 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (TCC WRG) 2001-2006 01
003 12146809 COVER, GEN WIRE TERM (BLACK) (TERMINAL BOOT COVER) (2.343) CK2, 3 (L18) 2001-2006 01
004 08919355 CONDUIT, ELECTRICAL, 15 FT ROLL X 1/2 I.D. (BAT CBL) 2001-2006 AR
005 12191376 BLOCK, BAT POS CBL JUNC (W/1 BOLT) CK1, 2, 3 2001-2006 01
006 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (AUX BAT POS CBL) 2001-2006 01
007 12160210 COVER, BAT POS CBL TERM (PART OF 16) (RED) (SURROUNDS CABLE END AT BATT SIDE TERM) CK1, 2, 3 2001-2006 01
008 12010050 ГАЙКА, BAT POS CBL TERM CVR RET (CABLE END COVER AT АККУМУЛЯТОР) (RED) (HAS SLOTTED HOLE) (SNAPS ON TO АККУМУЛЯТОР BOLT) CK1, 2, 3 2001-2006 01
009 12160209 COVER, BAT NEG CBL TERM (PART OF 11) (BLACK VINYL) (SURROUNDS CABLE END AT BATT SIDE TERM) CK1, 2, 3 2001-2006 01
010 19115561 БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (PART OF 11) (8.900) (ACDelco #19115561) 2001-2006 01
011 15321212 CABLE, BAT NEG (812.8MM LG) (INCLS 9, 10, 12, 14) (ACDelco #2SX32-1A) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L59) (EXC T64, 9L4) 2002-2005 01
011 15321221 CABLE, BAT NEG (812.8MM LG, PRIMARY BAT) (INCLS 9, 10, 12, 14) (ACDelco #2SX32-2) CK1, 2, 3 (LM7, LQ4, LR4, L18, L59, LQ9, 9L4) 2002-2005 01
011 88862745 CABLE, BAT NEG (AUX BAT) (INCLS 9, 10, 12, 14) (ACDelco #6SD46) K259 (06) (L18) 2001-2006 AR
011 88862745 CABLE, BAT NEG (AUX BAT) (INCLS 9, 10, 12, 14) (ACDelco #6SD46) K259 (36) (L18) 2002-2005 AR
011 88862745 CABLE, BAT NEG (AUX BAT) (INCLS 9, 10, 12, 14) (ACDelco #6SD46) K259 (06) (L18) 2002-2006 AR
011 88864182 CABLE, BAT NEG (INCLS 9, 10, 12, 14) (ALL MAKES) CK259 (06) (L18) (EXC 9L4) 2001-2006 01
011 88864182 CABLE, BAT NEG (INCLS 9, 10, 12, 14) (ALL MAKES) K259 (36) (L18) (EXC 9L4) 2004-2006 01
011 88864183 CABLE, BAT NEG (INCLS 9, 10, 12, 14) (ALL MAKES) CK259 (06) (L18, 9L4) 2001-2006 01
011 88864183 CABLE, BAT NEG (INCLS 9, 10, 12, 14) (ALL MAKES) K259 (36) (L18, 9L4) 2004-2006 01
012 RETAINER, BAT NEG CBL (PART OF 11) 2001-2006
013 11513703 БОЛТ, HFH M8X1.25X18 (ENG WRG HARN GND) 2001-2006 02
014 08919355 CONDUIT, ELECTRICAL, 15 FT ROLL X 1/2 I.D. (PART OF 11) 2001-2006 AR
015 19115561 БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (PART OF 16) (8.900) (ACDelco #19115561) 2001-2006 01
016 15371984 CABLE, BAT POS (1955.8MM LG) (INCLS 7, 15) (ACDelco #2SX72-1B) CK2, 3 (L18) 2001-2006 01
017 12125347 CONDUIT, 10MM X 15 FEET (BLA/GRA NYLON) (BAT CBL) 2001-2006 AR
018 15392781 CLIP, BAT POS CBL (13MM) (BOLT ON) CK2, 3 (L18) 2001-2006 01
019 12084536 ГАЙКА, BAT POS CBL EXTN CBL J/BLK LEAD (M10) (2.483) CK1, 2, 3 2001-2005 01
020 15058905 BRACKET, BAT POS CBL J/BLK CK2, 3 (L18) 2001-2006 01
021 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (BAT POS CBL J/BLK BRKT) 2001-2006 02
022 11516872 BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (FWD LP WRG HARN GND) 2001-2006 01
023 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (BAT POS CBL RET) 2001-2006 01
024 15326078 CHANNEL, BAT POS CBL (265.8 MM LONG) CK2, 3 (L18) 2002-2006 01
025 15326303 RETAINER, BAT CBL (TO CHANNEL) CK1, 2, 3 2001-2006 03
026 15765448 CLIP, BAT POS CBL (BLACK) (HOLDS 2 9.6 OD TUBES, ) CK2, 3 (L18) 2001-2006 01
027 12010824 CLIP, STRTR SOL WIRE (2.343) CK2, 3 (L18) 2001-2006 01
028 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (BAT POS CBL CLIP) 2001-2006 01
029 21021808 ГАЙКА, STRTR SOL CBL (M8X1.25X6, BRASS) CK1, 2, 3 2001-2005 01
