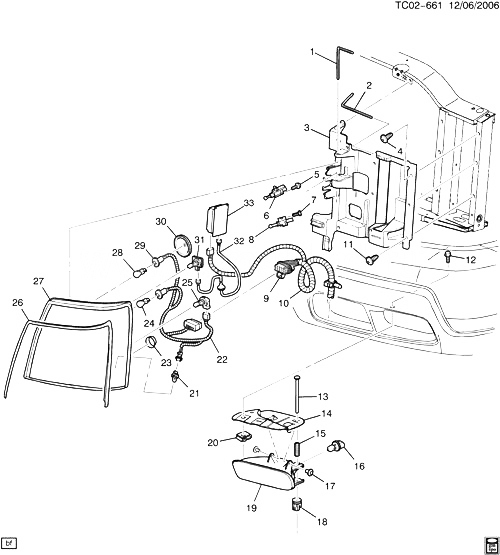

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15845413 |
PIN, HDLP MT PNL (VERTICAL) (PART OF 27) (189MM TOTAL LENGTH) |
CK1 (06-36) (Y91, Z75) |
2003-2005 |
02 |
| 002 |
15059366 |
PIN, HDLP MT PNL (HORIZONTAL) (PART OF 27) |
CK1 (06-36) (Y91, Z75) |
2003-2006 |
02 |
| 003 |
15185626 |
SUPPORT, HDLP HSG (W/ W/O HID LAMPS) |
CK1 (06-36) (Z75) |
2003-2006 |
01 |
| 003 |
15185627 |
SUPPORT, HDLP HSG (W/ W/O HID LAMPS) |
CK1 (06-36) (Z75) |
2003-2006 |
01 |
| 004 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (HDLP HSG PNL)
|
2003-2006 |
12 |
|
| 005 |
|
SCREW, ADJUSTER (PART OF 27) |
|
2003-2006 |
|
| 006 |
|
ADJUSTER, HDLP HORIZ (PART OF 27) |
|
2003-2006 |
|
| 007 |
|
SCREW, ADJUSTER (PART OF 27) |
|
2003-2006 |
|
| 008 |
|
ADJUSTER, HDLP VERT (PART OF 27) |
|
2003-2006 |
|
| 009 |
|
CONNECTOR, INLINE-TO HDLP (PART OF 10) |
|
2003-2006 |
|
| 010 |
15236077 |
HARNESS, FWD LP WRG (INCLS 9) |
CK1 (06) (Z75) |
2005-2006 |
01 |
| 010 |
15236078 |
HARNESS, FWD LP WRG (INCLS 9) |
CK1 (36) (Z75) |
2005-2006 |
01 |
| 011 |
11517110 |
SCREW - WAFER HD MACHINE, M6X1X25, P-POINT (HDLP HSG PNL) (8.908) |
|
2003-2006 |
04 |
| 012 |
11570498 |
БОЛТ, HWH W/FL WA, M4.2X1.41X20, 11.4 THD, 17 OD, ISO 2702 STL , GMW4205, T (FRT BPR FASCIA) |
|
2003-2006 |
15 |
| 013 |
|
SCREW, ADJUSTING (PART OF 19) |
|
2003-2006 |
|
| 014 |
|
BRACKET (PART OF 19) |
|
2003-2006 |
|
| 015 |
|
ПРУЖИНА, ADJUSTING (PART OF 19) |
|
2003-2006 |
|
| 016 |
09442876 |
BULB, FRT FOG LP (PART OF 19) (TRADE #880) (INCLS SOC) (ACDelco #L880) |
CK1, 2, 3 |
2003-2005 |
02 |
| 017 |
16514113 |
RETAINER, FRT FOG LP (PART OF 19) (NOMINAL HOLE 6.3MM)
| CK1, 2, 3 |
2003-2006 |
02 |
|
| 018 |
11609872 |
ГАЙКА, FRT FOG LP ADJ (PART OF 19) (32.0 X 24.2) (8.920) |
CK1, 2, 3 |
2003-2006 |
02 |
| 019 |
15252038 |
LAMP, FRT FOG (INCLS 13-18)
| CK1 (06-36) (Y91, Z75) |
2003-2006 |
01 |
|
| 019 |
15252039 |
LAMP, FRT FOG (INCLS 13-18)
| CK1 (06-36) (Y91, Z75) |
2003-2006 |
01 |
|
| 020 |
11513599 |
ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (FRT BPR FASCIA) (ACDelco #11513599) |
|
2003-2006 |
12 |
| 021 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 27) (ACDelco #L194) |
|
2003-2006 |
02 |
| 022 |
|
HARNESS ASM (PART OF 27) |
|
2003-2006 |
|
| 023 |
|
CAP, BULB (ELLIPTICAL) (PART OF 27) |
|
2003-2006 |
|
| 024 |
12450182 |
BULB, TRADE# 4157NAK) (AMBER (PART OF 27) (ACDelco #4157NA/K)
|
2003-2006 |
02 |
|
| 025 |
09441732 |
BULB, HDLP (HIGH BEAM) (PART OF 27) (W/TRADE #9005) (ACDelco #9005) |
CK1, 2, 3 |
2003-2006 |
02 |
| 026 |
|
SEAL, HDLP CVR (PART OF 27) |
|
2003-2006 |
|
| 027 |
15791356 |
HEADLAMP, (INCLS 1, 2, 5-8, 21-26, 28-31, 33) |
CK1 (06-36) (Y91, Z75) |
2003-2006 |
01 |
| 027 |
19208223 |
HEADLAMP, (INCLS 1, 2, 5-8, 21-26, 28-31, 33) (MAY NEED TO ORDER BALLAST 19121438 HARNESS 19121528) |
CK1 (06-36) (Y91, Z75) |
2003-2006 |
01 |
| 028 |
15199562 |
BULB, DAYTIME RUNNING LP (PART OF 27) (14V) (CLEAR) (4114K) (ACDelco #4114K)
| CK1, 2, 3 (EXC T84) |
2003-2006 |
02 |
|
| 029 |
15306188 |
SOCKET, DAYTIME RUNNING LP (PART OF 27) (NATURAL) (3-WAY FEMALE WEDGE BASE) (W/LEADS) (ACDelco #LS95) |
CK1 (06-36) (Y91, Z75) |
2003-2006 |
02 |
| 030 |
12458865 |
COVER, HDLP BULB ACC (PART OF 27) |
CK1 (Y91, Z75) |
2003-2006 |
08 |
| 031 |
88979814 |
BULB, HDLP (LOW BEAM) (PART OF 27) (ACDelco #D1R) (HID HEADLAMPS) |
CK1 (06-36) (Y91, Z75) |
2003-2006 |
02 |
| 032 |
19121528 |
HARNESS, HDLP WRG (ELEMENT) |
CK1 (06-36) (Y91, Z75) |
2005-2006 |
02 |
| 033 |
19121438 |
BALLAST, HDLP (PART OF 27) |
CK1 (06-36) (Y91, Z75) |
2005-2006 |
02 |
