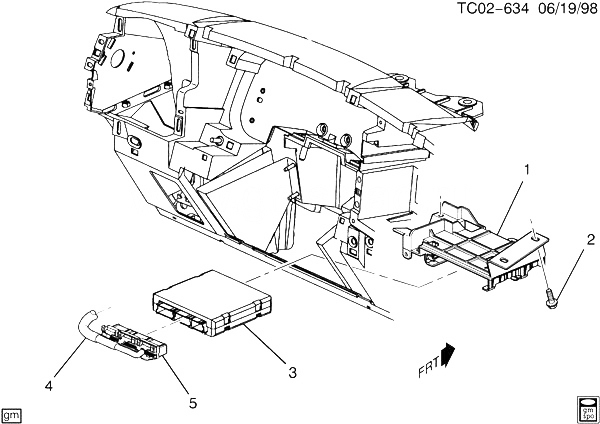

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15201336 |
BRACKET, BCM |
CK1, 2 (06-36) |
2004-2006 |
01 |
| 002 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (BCM BRKT) (9.665)
|
1999-2007 |
04 |
|
| 003 |
10367690 |
MODULE, BODY CONT (ACDelco #10367690) (DEALER PROGRAMMING REQUIRED)
| CK1, 2 (06-36) |
2003-2005 |
01 |
|
| 004 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS 5) |
|
1999-2007 |
|
| 005 |
12110206 |
CONNECTOR, MDL-BODY CONT (I/P HARN) (PART OF 4) (BLUE) (24-WAY FEMALE) (W/O LEADS) (3.670) |
CK1, 2, 3 |
2001-2007 |
01 |
| 005 |
12160778 |
CONNECTOR, MDL-BODY CONT (I/P HARN) (PART OF 4) (BROWN) (24-WAY FEMALE) (W/O LEADS) (W/O TERM RETAINERS) (3.670) |
CK1, 2, 3 |
2001-2007 |
01 |
| 005 |
15305927 |
CONNECTOR, MDL-BODY CONT (PART OF 4) (NATURAL) (6-WAY FEMALE W/LEADS) (11.500) (ACDelco #PT1186) |
CK1, 2, 3 |
2003-2007 |
01 |
| 005 |
15305931 |
CONNECTOR, MDL-BODY CONT (PART OF 4) (BLACK) (6-WAY FEMALE W/LEADS) (4.710) (ACDelco #PT1071) |
CK1, 2, 3 |
2003-2007 |
01 |
| 005 |
15306041 |
CONNECTOR, MDL-BODY CONT (PART OF 4) (PURPLE) (16-WAY FEMALE W/LEADS) (ACDelco #PT1201) |
CK1, 2, 3 |
2001-2007 |
01 |
| 005 |
15306210 |
CONNECTOR, MDL-BODY CONT (PART OF 4) (GRAY) (24-WAY FEMALE) (W/O LEADS) (W/TERM RETAINERS) (9.656) |
CK1, 2, 3 |
2003-2007 |
01 |
