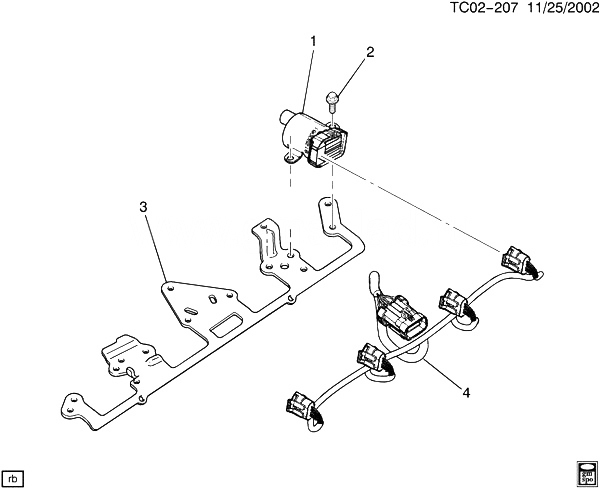

(TC02-207) - 2005-2007 CK COIL ASM/IGNITION (LM7/5.3T,LQ4/6.0U,LQ9/6.0N,LR4/4.8V,L33/5.3B,L59/5.3Z)(DELPHI) CADILLAC - ESCALADE ESV (AWD) 2005
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 10457730 | COIL, IGN (STAMPED 19005218) (ACDelco #D585)| CK1, 2, 3 |
1999-2007 |
04 |
|
| 002 | 11517094 | SCREW, M5X.8X15.6, 10.4 THD, 10.2 OD, 6202M, 7114M, TAPER-POINT (IGN COIL) (ACDelco #11517094) | 1999-2007 | 08 | |
| 003 | 10457736 | BRACKET, IGN COIL (DELPHI ENERGY) (INCLS BRKT, BOLTS, SEALS) (ACDelco #10457736) | CK1, 2, 3 | 1999-2007 | 01 |
| 004 | 89017477 | WIRE, IGN COIL (COIL STAMPED 19005218) (DELPHI) (ACDelco #355W) | CK1, 2, 3 | 1999-2007 | 01 |
