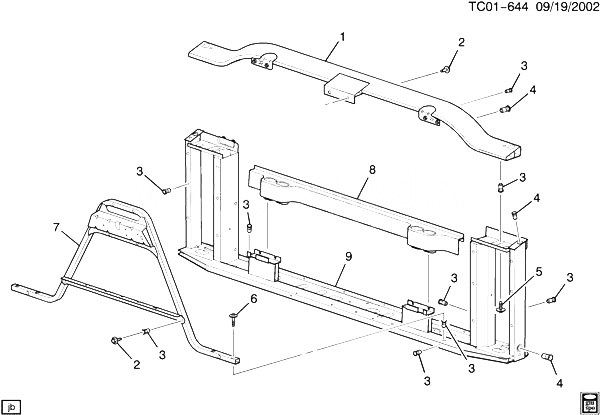

(TC01-644) - 2003-2007 CK2,3 КРЕПЛЕНИЕ РАДИАТОРА В СБОРЕ (LQ4/6.0U,L31/5.7R) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15814090 SUPPORT, F/END UPR TIE BAR (PART OF 9) CK1, 2, 3 (EXC HP2, LLY) 2003-2007 01
002 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PART OF 9) 1999-2007 04
003 11516763 ГАЙКА, RIVNUT, M6X1, 10MM HOLE, 20LG, 12.9 O.D., STL, ZP (PART OF 9) 1999-2007 27
004 11561916 NUT-INSERT, M8X1.25, 13.5 HOLE, 0.7-3.8 GRIP, 24 LONG, 17.4 OD, 1008, GMW (PART OF 9) 1999-2007 04
005 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PART OF 9) 1999-2007 06
006 15744933 БОЛТ, HEX HD, W/CON WA, M6X1X45 (PART OF 9) (1.267) 1999-2007 04
007 15223723 BRACE, F/END SH MET RAD OPG (PART OF 9) (MAY NEED TO ENLARGE THE DIAMETER OF AMBIENT TEMPERATURE SENSOR MOUNTING HOLE FROM 6.35MM TO 11.0MM) CK2, 3 (LB7, LLY, LQ4, L18) 2004-2005 01
007 15223723 BRACE, F/END SH MET RAD OPG (PART OF 9) (MAY NEED TO ENLARGE THE DIAMETER OF AMBIENT TEMPERATURE SENSOR MOUNTING HOLE FROM 6.35MM TO 11.0MM) CK2, 3 (L31) (EXPORT) 2005-2007 01
008 15736093 SPACER, RAD SUPT (PART OF 9) CK2, 3 (LQ4) 2001-2007 01
008 15736093 SPACER, RAD SUPT (PART OF 9) CK2, 3 (L31) (EXPORT) 2003-2007 01
009 25815983 SUPPORT, RAD (INCLS 1-8) (MAY NEED TO ENLARGE THE DIAMETER OF AMBIENT TEMPERATURE SENSOR MOUNTING HOLE FROM 6.35MM TO 11.0MM) CK2, 3 (LQ4) 2003-2007 01
009 25815983 SUPPORT, RAD (INCLS 1-8) (MAY NEED TO ENLARGE THE DIAMETER OF AMBIENT TEMPERATURE SENSOR MOUNTING HOLE FROM 6.35MM TO 11.0MM) CK2, 3 (L31) (EXPORT) 2005-2007 01
