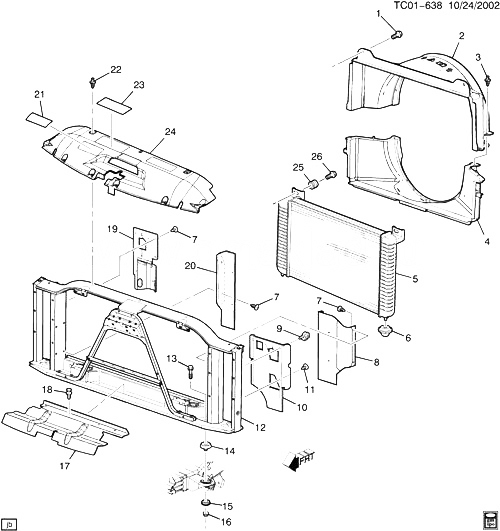

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (ENG COOL FAN SHRD)
|
2000-2006 |
02 |
|
| 002 |
15088326 |
SHROUD, ENG COOL FAN UPR (CODE AMB, ALA) |
CK2 (06-36) (L18) |
2002-2006 |
01 |
| 002 |
15088328 |
SHROUD, ENG COOL FAN UPR (CODE AMD, AJA) |
CK2 (06-43) (LQ4, C6P) |
2005-2005 |
01 |
| 003 |
05973400 |
RETAINER, ENG COOL FAN SHRD (BLACK) (25.4MM HEAD) (ROUND) (1.269) |
CK1, 2, 3 |
2001-2006 |
04 |
| 004 |
15005488 |
SHROUD, ENG COOL FAN LWR (CODE ALG) |
CK2 (06-36) (L18) |
2002-2006 |
01 |
| 004 |
15267487 |
SHROUD, ENG COOL FAN LWR |
CK2 (06-43) (LQ4, C6P) |
2005-2005 |
01 |
| 005 |
|
RADIATOR, (INCLS 6, 25) (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2000-2006 |
|
| 006 |
52487557 |
MOUNT, RAD LWR (PART OF 5) |
CK2, 3 (L18) |
2001-2006 |
02 |
| 006 |
89019121 |
MOUNT, RAD LWR (PART OF 5) |
CK1, 2, 3 (LM7, LQ4) |
2005-2006 |
02 |
| 007 |
15958694 |
RETAINER, RAD AIR BFL (PUSH IN) (PART OF 8, 19, 20) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850)
| CK1, 2, 3 |
2001-2006 |
AR |
|
| 008 |
15773377 |
BAFFLE, RAD AIR (INCLS 7) (CODE 3377) |
CK1, 2, 3 (LQ4, LQ9) |
2002-2005 |
01 |
| 009 |
19130464 |
CLIP, RAD AIR SI BFL (RETAINS 10MM CONDUIT, PUSH-IN TYPE) (8.965)
| CK1, 2 (06) (C69) |
2000-2006 |
01 |
|
| 010 |
15186977 |
BAFFLE, RAD SUPT (UPR OTR) (RUBBER) (UPR OUTER BEHIND HDLP) |
CK1, 2 (06) (C69) |
2000-2006 |
01 |
| 011 |
15958694 |
RETAINER, RAD SUPT BFL (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850)
| CK1, 2 (06) (C69) |
2000-2006 |
02 |
|
| 012 |
|
SUPPORT, RAD (СМ. ГРУППУ 01.000 RADIATOR SUPPORT ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2000-2006 |
|
| 013 |
15766752 |
БОЛТ, RAD SUPT
| CK1, 2, 3 |
2001-2006 |
02 |
|
| 014 |
15837581 |
CUSHION, RAD SUPT UPR
| CK1, 2 (06) |
2005-2006 |
02 |
|
| 015 |
15201791 |
CUSHION, RAD SUPT LWR (71MM OD) (9.023) |
CK1, 2, 3 |
2001-2006 |
02 |
| 016 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (RAD SUPT) (8.917) |
|
2000-2006 |
02 |
| 017 |
15050253 |
BAFFLE, RAD SUPT (LWR CTR) |
CK2 (06) (LQ4, C69) |
2000-2006 |
01 |
| 018 |
20538173 |
RETAINER, RAD SUPT BFL (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) |
CK1, 2 (06) (C69) |
2001-2006 |
03 |
| 019 |
15083918 |
BAFFLE, RAD SUPT (UPPER OUTER) (INCLS 7) (RUBBER) (UPR OTR) (BEHIND HDLP)
| CK1, 2 (06) (C69) |
2000-2006 |
01 |
|
| 020 |
15185917 |
BAFFLE, RAD AIR (INCLS 7) (CODE 5917) |
CK1, 2, 3 (LQ4, LQ9) |
2004-2006 |
01 |
| 021 |
12575049 |
LABEL, ACSRY BELT ROUTING (PART OF 24) |
CK1, 2, 3 |
2002-2006 |
01 |
| 022 |
11561878 |
RETAINER, RAD AIR UPR BFL (PUSH IN) (FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL) (8.940)
| CK1, 2, 3 |
2001-2006 |
07 |
|
| 023 |
10388864 |
LABEL, A/C REFRIG WRNG (PART OF 24) (W/2.8 LB SUBURBAN 2.5LB UTILITY) (FOR 1ST DES SEE 15206697) |
CK1, 2, 3 (2ND DES) |
2005-2005 |
01 |
| 023 |
15206697 |
LABEL, A/C REFRIG WRNG (PART OF 24) (W/3.0 LB SUBURBAN 2.7LB UTILITY) (FOR 2ND DES SEE 10388864) |
CK1, 2, 3 (1ST DES) |
2005-2005 |
01 |
| 025 |
|
INSULATOR, RAD UPR (PART OF 5) |
|
2000-2006 |
|
| 026 |
11516931 |
БОЛТ, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (RAD UPR MT) |
|
2000-2006 |
02 |
