| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

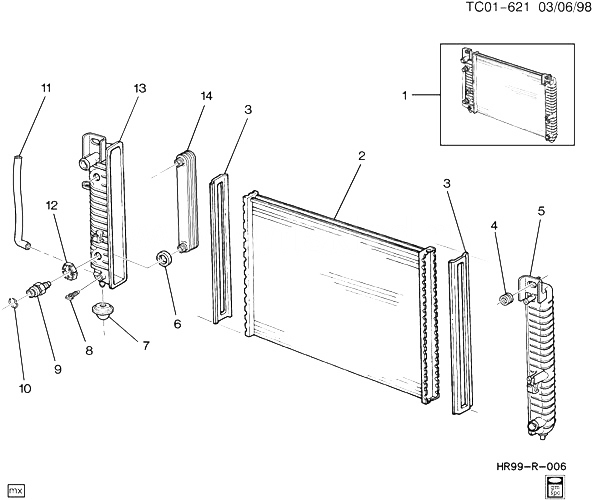

| 001 |
89019156 |
RADIATOR, (CORE SIZE 37 13/16IN X 19 7/16IN X 1 15/16IN, CODE CAG, AJJ, BAP, ARU, W/TRANS OIL CLR) (INCLS 2-14) (ACDelco #21716) |
CK2, 3 (L18, M74, KC4, KPS) |
2004-2005 |
01 |
| 001 |
89019156 |
RADIATOR, (CORE SIZE 37 13/16IN X 19 7/16IN X 1 15/16IN, W/TRANS OIL CLR, CODE CAG, AJJ, BAP, ARU, AXN) (INCLS 2-14) (ACDelco #21716) |
CK2, 3 (L18, MW7, KC4, KPS) |
2004-2007 |
01 |
| 001 |
89019167 |
RADIATOR, (CORE SIZE 37 13/16IN X 19 7/16IN X 1 15/16IN, CODE AXP, AJK, CDB, CAH, ARW) (INCLS 2-14) (ACDelco #21728) |
CK2, 3 (L18, ML6, KC4, KPS) |
2004-2006 |
01 |
| 001 |
89019168 |
RADIATOR, (CORE SIZE 37 13/16IN X 19 7/16IN X 1 15/16IN, CODE AXR, AJL, DDL, CAJ, ARX, W/TRANS OIL CLR) (INCLS 2-14) (ACDelco #21729) |
CK2 (L18, MN8, KC4, KPS) |
2004-2006 |
01 |
| 002 |
|
CORE, RAD |
|
2001-2007 |
|
| 003 |
|
GASKET, RAD TK |
|
2003-2007 |
|
| 004 |
|
INSULATOR, RAD UPR |
|
2003-2007 |
|
| 005 |
|
TANK, RAD OTLT |
|
2003-2007 |
|
| 006 |
|
GASKET, RAD TK |
|
2003-2007 |
|
| 007 |
52487557 |
MOUNT, RAD LWR |
CK2, 3 (L18) |
2001-2007 |
02 |
| 008 |
10368798 |
COCK, RAD DRN (W/SEAL) (1.219) |
CK1, 2, 3 |
2001-2005 |
01 |
| 008 |
10368798 |
COCK, RAD DRN (W/SEAL) (1.219) |
CK1, 2, 3 |
2001-2005 |
01 |
| 009 |
15797464 |
CONNECTOR, ENG OIL CLR ADAP (INCLS 10) (3/4-16) (W/TRANS OIL CLR PIPE W/20.7MM FROM FLAT OF FLARE TO PIPE END) (4.128) (ACDelco #15797464) |
CK2, 3 (L18, ML6, MN8, M74, KC4) |
2003-2005 |
02 |
| 010 |
88996648 |
RETAINER, TRANS FLUID CLR PIPE (PART OF 9) (5/8) (E-STYLE) (WHITE RETAINER CLIP) |
CK2, 3 (L18, M74, MN8, M74, ML6, MW7) |
2003-2007 |
01 |
| 011 |
|
HOSE, RAD DRN COCK |
|
2004-2007 |
|
| 012 |
|
ГАЙКА, RAD |
|
2001-2007 |
|
| 013 |
|
TANK, RAD INL |
|
2003-2007 |
|
| 014 |
|
COOLER, ENG OIL |
|
2003-2007 |
|
