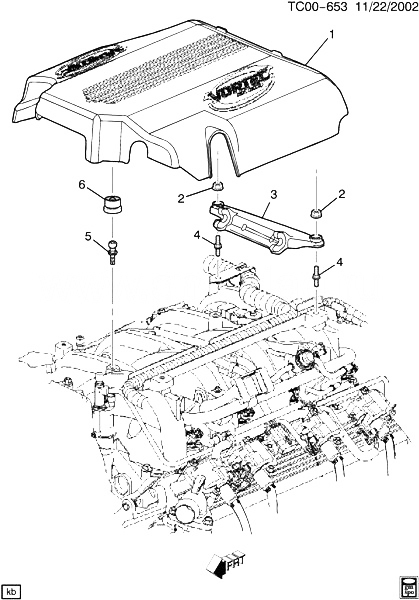

(TC00-653) - 2003-2007 CK2,3 INTAKE MANIFOLD SHIELD/COVERS (L18/8.1G) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12574560 SHIELD, UPR INT MANIF SIGHT (INCLSGROMMET, INSULATOR, SHIELD) (INCLS 6) CK2, 3 (L18) 2003-2007 01
002 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (UPR INT MANIF SIGHT SHLD) 2003-2007 02
003 12562957 BRACKET, UPR INT MANIF SIGHT SHLD CK2, 3 (L18) 2003-2007 01
004 12562958 STUD, INT MANIF BR (3.275) CK2, 3 (L18) 2003-2007 02
005 12567370 STUD, UPR INT MANIF SIGHT SHLD (M6X1X12, 15.0 DIA BALL) (3.265) CK2, 3 (L18) 2003-2007 01
006 12567371 GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 1) CK2, 3 (L18) 2003-2007 01
