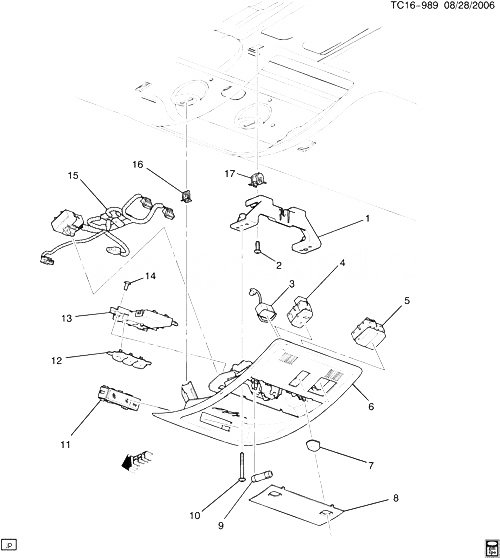

(TC16-989) - 2007-2009 CK1(06) КОНСОЛЬ/КРЫША (CADILLAC Z75, ARS,UG1, EXC CF5) CADILLAC - ESCALADE ESV (2WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15911047 BRACKET, RF RR CNSL (PART OF 6) CK1, 2, 3 2007-2009 01
002 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PART OF 6) 2007-2009 02
003 15241529 MICROPHONE, MOBILE TEL (PART OF 6) (2-WAY CAVITY) CK1, 2, 3 (DK8) 2007-2009 01
005 15862407 SWITCH, R/SEAT #2 FLDG ACTR (PART OF 6) (ON КОНСОЛЬ) CK1 (06) (ARS, DK8, Z75) 2007-2009 01
006 15913173 КОНСОЛЬ, RF (INCLS 1-5, 7-10, 12-17) (LT CASHMERE) (W/LEAR TRANSMITTER KIT 25807341) CK1 (06) (ARS, UG1, Z75, 30I) (EXC CF5) 2007-2009 01
006 15913181 КОНСОЛЬ, RF (INCLS 1-5, 7-10, 12-17) (LT CASHMERE) (W/LEAR TRANSMITTER KIT 25807341) CK1 (06) (DK8, UG1, Z75, 39I) (EXC CF5) 2009-2009 01
006 25977569 КОНСОЛЬ, RF (INCLS 1-5, 7-10, 12-17) (CASHMERE) CK1 (06) (CFN, DK8, UG1, Z75, 39I) 2009-2009 01
006 25977626 КОНСОЛЬ, RF (INCLS 1-5, 7-10, 12-17) (CASHMERE) CK1 (06) (ARS, DK8, UG1, Z75, 39I) (EXC CF5) 2009-2009 01
007 15853948 PUSHBUTTON, RDG LP SW (PART OF 6) CK1, 2, 3 2007-2009 02
008 15911049 LENS, DM LP (PART OF 6) (1ST ROW) CK1, 2, 3 2007-2009 01
009 09431809 BULB, 6CP TRADE #212-2 (PART OF 6) (ACDelco #L212-2) 2007-2009 02
010 БОЛТ, RF CNSL (PART OF 6) 2007-2009
011 22625546 INDICATOR, INFL RST I/P MDL (W/WORDS ON AND OFF FOR AIRBAG) (14.865) CK1, 2, 3 (DK8) (EXC UC2, U19) 2009-2009 01
011 22627868 INDICATOR, INFL RST I/P MDL (W/AIRBAG SYMBOLS FOR ON AND OFF) (14.865) CK1, 2, 3 (U19) (EXPORT) 2007-2009 01
012 PUSHBUTTON, GARAGE DR OPENER XMTR (PART OF 6) 2007-2009
013 25807341 TRANSMITTER, GARAGE DR OPENER (PART OF 6) (W/OWNERS INFO MANUAL) CK1 (06) (DK8, UG1, Z75) 2009-2009 01
014 БОЛТ, RF CNSL (PART OF 6) 2007-2009
015 HARNESS, КОНСОЛЬ JUMPER (PART OF 6) 2007-2009
016 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 6) 2007-2009 02
017 11609345 ГАЙКА, PUSH-IN, 4.2, SAE 1050 STL, GMW3179 (PART OF 6) 2007-2009 02
