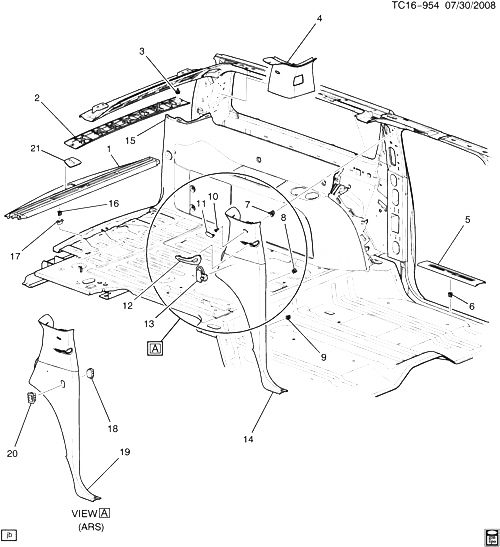

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15877373 |
PLATE, R/FLR RR TR (INCLS 16) (LINEN) |
CK1 (06) (ULT, 41I) |
2008-2009 |
01 |
| 001 |
15931763 |
PLATE, R/FLR RR TR (INCLS 16) (EBONY) (W/ CADILLAC INSERT)
| CK1 (06) (Y91, Z75, 19I) |
2007-2009 |
01 |
|
| 001 |
25902618 |
PLATE, R/FLR RR TR (INCLS 16) (CASHMERE) |
CK1 (06) (Y91, Z75, 39I) |
2009-2009 |
01 |
| 002 |
15905683 |
MOLDING, BK BODY OPG GARN (INCLS 3) (GRAY) |
CK1, 2 (06) (Z75, 19I) |
2007-2009 |
01 |
| 002 |
15905684 |
MOLDING, BK BODY OPG GARN (INCLS 3) (CASHMERE) |
CK1, 2 (06) (Z75, 39I) |
2009-2009 |
01 |
| 002 |
15936713 |
MOLDING, BK BODY OPG GARN (INCLS 3) (LINEN) |
CK1 (06) (ULT, 41I) |
2008-2009 |
01 |
| 003 |
11561654 |
RETAINER, C/PLR UPR G/MLDG (PART OF 2) (PLAIN) (8.5MM DIA HOLE) (BIRDS BEAK SINGLE) (12.800)
| CK1 (Z75) |
2007-2009 |
04 |
|
| 004 |
|
MOLDING, BODY RR COR UPR GARN (СМ. ГРУППУ 16.000 ОТДЕЛКА/INTERIOR-BODY SIDE-QUARTER DETAIL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 005 |
15848339 |
PLATE, RR S/D SILL TR (INCLS 6) (EBONY) (INCLS RETAINERS) (W/CADILLAC INSERT) |
CK109 (Y91, Z75, 19I) |
2007-2009 |
02 |
| 005 |
15877416 |
PLATE, RR S/D SILL TR (INCLS 6) (LINEN) |
CK109 (ULT, 41I) |
2008-2009 |
02 |
| 005 |
25902614 |
PLATE, RR S/D SILL TR (INCLS 6) (CASHMERE) |
CK109 (06-36) (Y91, Z75, 39I) |
2009-2009 |
01 |
| 005 |
25902614 |
PLATE, RR S/D SILL TR (INCLS 6) (CASHMERE) |
CK109 (Y91, Z75, 39I) |
2009-2009 |
01 |
| 006 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 5)
|
2007-2009 |
06 |
|
| 007 |
11609651 |
CLIP, BODY L/PLR G/MLDG (PART OF 14, 19) (M21.8X15.0X20.5) (14.731)
| CK1, 2 (06) |
2007-2009 |
02 |
|
| 008 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 14, 19)
|
2007-2009 |
04 |
|
| 009 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 14, 19)
|
2007-2009 |
05 |
|
| 010 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 14, 19) (8.977)
|
2007-2009 |
02 |
|
| 011 |
15925047 |
PLUG, BODY L/PLR GARN MLDG (PART OF 14, 19) (GRAY) |
CK109, 2 (06) (19I, 83I) |
2009-2009 |
01 |
| 011 |
15925048 |
PLUG, BODY L/PLR GARN MLDG (PART OF 14, 19) (LT. CASHMERE) |
CK109 (06) (Z75, 39I) |
2009-2009 |
01 |
| 011 |
15925051 |
PLUG, BODY L/PLR GARN MLDG (PART OF 14, 19) (GRANITE CASHMERE) |
CK109 (06) (ARS, 39I) |
2009-2009 |
01 |
| 011 |
15925054 |
PLUG, BODY L/PLR GARN MLDG (PART OF 14, 19) (GRAY) |
CK109, 2 (06) (19I, 83I) |
2009-2009 |
01 |
| 011 |
15925055 |
PLUG, BODY L/PLR GARN MLDG (PART OF 14, 19) (LT. CASHMERE) |
CK109, 2 (06) (Z75, 39I) |
2009-2009 |
01 |
| 011 |
15925058 |
PLUG, BODY L/PLR GARN MLDG (PART OF 14, 19) (GRANITE CASHMERE) |
CK109 (06) (ARS, 39I) |
2009-2009 |
01 |
| 011 |
25827847 |
PLUG, BODY L/PLR GARN MLDG (PART OF 14, 19) (LINEN) |
CK109 (06) (ULT, 41I) |
2008-2009 |
01 |
| 011 |
25827848 |
PLUG, BODY L/PLR GARN MLDG (PART OF 14, 19) (LINEN) |
CK109 (06) (ULT, 41I) |
2008-2009 |
01 |
| 012 |
15295380 |
BEZEL, R/SEAT SHLDR BELT OPG (PART OF 14, 19) (GRAY) |
CK109 (06) (Z75, 19I) |
2007-2009 |
01 |
| 012 |
15295384 |
BEZEL, R/SEAT SHLDR BELT OPG (PART OF 14, 19) (GRAY) |
CK109 (06) (Z75, 19I) |
2007-2009 |
01 |
| 012 |
25827849 |
BEZEL, R/SEAT SHLDR BELT OPG (PART OF 14, 19) (LINEN) |
CK109 (06) (ULT, 41I) |
2008-2009 |
01 |
| 012 |
25827850 |
BEZEL, R/SEAT SHLDR BELT OPG (PART OF 14, 19) (LINEN) |
CK109 (06) (ULT, 41I) |
2008-2009 |
01 |
| 012 |
25903599 |
BEZEL, R/SEAT SHLDR BELT OPG (PART OF 14, 19) (CASHMERE) |
CK109 (06) (Z75, 39I) |
2009-2009 |
01 |
| 012 |
25903600 |
BEZEL, R/SEAT SHLDR BELT OPG (PART OF 14, 19) (CASHMERE) |
CK109 (06) (Z75, 39I) |
2009-2009 |
01 |
| 013 |
15214079 |
GUIDE, R/SEAT SHLDR BELT (PART OF 14, 19) (CASHMERE) |
CK109, 2 (06) (Z75, 39I) |
2009-2009 |
02 |
| 013 |
15214081 |
GUIDE, R/SEAT SHLDR BELT (PART OF 14, 19) (EBONY) |
CK1, 2 (06) (19I) |
2009-2009 |
02 |
| 013 |
25827828 |
GUIDE, R/SEAT SHLDR BELT (PART OF 14, 19) (LINEN) |
CK1 (ULT, 41I) |
2008-2009 |
02 |
| 014 |
15877447 |
MOLDING, BODY L/PLR GARN (INCLS 7-13) (LINEN) |
CK109 (06) (ULT, 41I) |
2008-2009 |
01 |
| 014 |
15877449 |
MOLDING, BODY L/PLR GARN (INCLS 7-13) (LINEN) |
CK109 (06) (ULT, 41I) |
2008-2009 |
01 |
| 014 |
15900669 |
MOLDING, BODY L/PLR GARN (INCLS 7-13) (CASHMERE) |
CK109 (06) (39I) (EXC ARS) |
2009-2009 |
01 |
| 014 |
15900702 |
MOLDING, BODY L/PLR GARN (INCLS 7-13) (EBONY) |
CK109 (06) (Z75, 19I) (EXC ARS) |
2007-2009 |
01 |
| 014 |
15900706 |
MOLDING, BODY L/PLR GARN (INCLS 7-13) (EBONY) |
CK109 (06) (Z75, 19I) (EXC ARS) |
2007-2009 |
01 |
| 014 |
15925198 |
MOLDING, BODY L/PLR GARN (INCLS 7-13) (CASHMERE) |
CK109, 2 (06) (19I) (EXC ARS) |
2009-2009 |
01 |
| 014 |
15925204 |
MOLDING, BODY L/PLR GARN (INCLS 7-13) (EBONY) |
CK109, 2 (06) (19I) (EXC ARS) |
2009-2009 |
01 |
| 014 |
25902637 |
MOLDING, BODY L/PLR GARN (INCLS 7-13) (CASHMERE) |
CK109 (06) (Z75, 39I) (EXC ARS) |
2009-2009 |
01 |
| 014 |
25902638 |
MOLDING, BODY L/PLR GARN (INCLS 7-13) (CASHMERE) |
CK109 (06) (Z75, 39I) (EXC ARS) |
2009-2009 |
01 |
| 015 |
|
PANEL, BODY SI TR (СМ. ГРУППУ 16.000 ОТДЕЛКА/INTERIOR-BODY SIDE-QUARTER DETAIL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 016 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 1)
|
2007-2009 |
10 |
|
| 017 |
15043000 |
PLUG, R/CMPT SILL TR PLT HOLE (38.0 X 17.0 X 18.0MM) (OBLONG) (16.600) |
CK1, 2 (06) |
2007-2009 |
10 |
| 018 |
15113408 |
SWITCH, R/SEAT ADJR (PART OF 19) (ON GARNISH MOLDING) |
CK1, 2 (06) |
2007-2009 |
01 |
| 019 |
15877447 |
MOLDING, BODY L/PLR GARN (INCLS 7-13, 18, 20) (LINEN) |
CK109 (06) (ULT, 41I) |
2008-2009 |
01 |
| 019 |
15877449 |
MOLDING, BODY L/PLR GARN (INCLS 7-13, 18, 20) (LINEN) |
CK109 (06) (ULT, 41I) |
2008-2009 |
01 |
| 019 |
15925184 |
MOLDING, BODY L/PLR GARN (INCLS 7-13, 18, 20) (EBONY) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) (GRAY UPR) |
CK109, 2 (06) (ARS, 19I) |
2009-2009 |
01 |
| 019 |
15925185 |
MOLDING, BODY L/PLR GARN (INCLS 7-13, 18, 20) (CASHMERE) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) (CASHMERE UPR) |
CK109 (06) (ARS, 39I) |
2009-2009 |
01 |
| 019 |
15925190 |
MOLDING, BODY L/PLR GARN (INCLS 7-13, 18, 20) (EBONY) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) (GRAY UPR) |
CK109, 2 (06) (ARS, 19I) |
2009-2009 |
01 |
| 019 |
15925191 |
MOLDING, BODY L/PLR GARN (INCLS 7-13, 18, 20) (CASHMERE) (MOLDED IN COLOR FLECKED PLASTIC UPR TR) (CASHMERE UPR) |
CK109 (06) (ARS, 39I) |
2009-2009 |
01 |
| 019 |
25797306 |
MOLDING, BODY L/PLR GARN (INCLS 7-13, 18, 20) (EBONY) (CLOTH WRAPPED UPR TR) |
CK109 (06) (ARS, Z75, 19I) |
2007-2009 |
01 |
| 019 |
25797309 |
MOLDING, BODY L/PLR GARN (INCLS 7-13, 18, 20) (EBONY) (CLOTH WRAPPED UPR TR) |
CK109 (06) (ARS, Z75, 19I) |
2007-2009 |
01 |
| 019 |
25902635 |
MOLDING, BODY L/PLR GARN (INCLS 7-13, 18, 20) (CASHMERE) (CLOTH WRAPPED UPR TR) |
CK109 (06) (ARS, Z75, 39I) |
2009-2009 |
01 |
| 019 |
25902636 |
MOLDING, BODY L/PLR GARN (INCLS 7-13, 18, 20) (CASHMERE) (CLOTH WRAPPED UPR TR) |
CK109 (06) (ARS, Z75, 39I) |
2009-2009 |
01 |
| 020 |
15214082 |
BEZEL, BODY L/PLR G/MLDG (PART OF 19) (CASHMERE) |
CK1, 2 (06) (ARS, 33I, 39I) |
2009-2009 |
02 |
| 020 |
15214084 |
BEZEL, BODY L/PLR G/MLDG (PART OF 19) (EBONY) |
CK1, 2 (06) (ARS, 19I) |
2009-2009 |
02 |
| 020 |
25827827 |
BEZEL, BODY L/PLR G/MLDG (PART OF 19) (LINEN) |
CK1 (06) (ULT, 41I) |
2008-2009 |
02 |
| 021 |
15274514 |
COVER, L/GATE LK STKR (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2009-2009 |
01 |
| 021 |
15274516 |
COVER, L/GATE LK STKR (EBONY) |
CK1, 2 (06) (19I, 22I, 84I) |
2007-2009 |
01 |
| 021 |
15940206 |
COVER, L/GATE LK STKR (LINEN) |
CK1 (06) (41I) |
2008-2009 |
01 |
