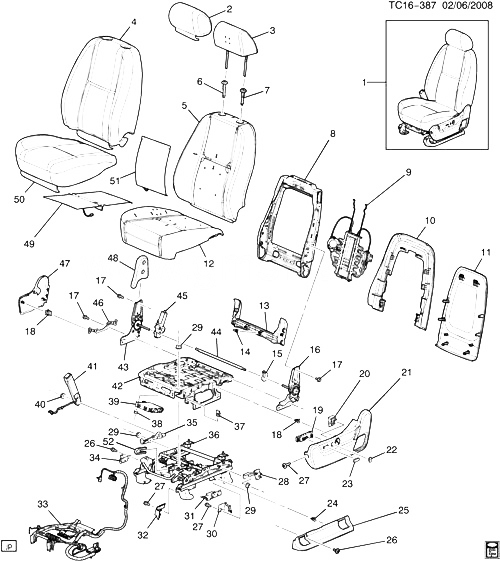

(TC16-387) - 2008-2009 CK1,2(06-36) СИДЕНЬЕ ВОДИТЕЛЯ/BUCKET (AN3, EXC VENTED/HEATED HNE,KB6) CADILLAC - ESCALADE ESV (2WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25865177 SEAT, DRVR (EBONY) CK1 (06-36) (AN3, Z75, 194) (EXC KB6) 2009-2009 01
001 25865474 SEAT, DRVR (EBONY) CK1 (06-36) (AN3, Y91, Z88, 194) (EXC KB6) 2009-2009 01
001 25865475 SEAT, DRVR (CASHMERE) CK1 (06-36) (AN3, Y91, Z88, 394) (EXC KB6) 2009-2009 01
001 25907678 SEAT, DRVR (CASHMERE) CK1 (06-36) (AL0, AN3, Z75, 394) (EXC KB6) 2009-2009 01
002 COVER, D/SEAT H/RST (PART OF 3) 2008-2009
003 15865481 RESTRAINT, D/SEAT HD (INCLS 2) (EBONY) CK1, 2 (06-36) (AN3, 193, 223, 843) 2007-2009 01
003 15865481 RESTRAINT, D/SEAT HD (INCLS 2) (EBONY) CK1, 2 (06-36) (AN3, 196, 843, 846) 2009-2009 01
003 15865482 RESTRAINT, D/SEAT HD (INCLS 2) (CASHMERE) CK1, 2 (06-36) (AN3, 313, 333) 2007-2009 01
003 15865482 RESTRAINT, D/SEAT HD (INCLS 2) (CASHMERE) CK1, 2 (06-36) (AN3, 336) 2009-2009 01
003 15865483 RESTRAINT, D/SEAT HD (INCLS 2) (TITANIUM) CK1, 2 (06-36) (AN3, 833, 836) 2007-2009 01
004 15827115 COVER, D/SEAT BK CUSH (EBONY) CK1 (06) (AL0, AN3, Y91, Z88, 194) (EXC KB6) 2009-2009 01
004 15827116 COVER, D/SEAT BK CUSH (CASHMERE) CK1 (06) (AN3, Y91, Z88, 394) (EXC KB6) 2009-2009 01
004 15865828 COVER, D/SEAT BK CUSH (EBONY) CK1, 2 (06-36) (AN3, 193) 2007-2009 01
004 15865829 COVER, D/SEAT BK CUSH (CASHMERE) CK1, 2 (06-36) (AN3, 313, 333) 2007-2009 01
004 15865830 COVER, D/SEAT BK CUSH (TITANIUM) CK1, 2 (06-36) (AN3, 833) 2007-2009 01
004 15923998 COVER, D/SEAT BK CUSH (EBONY) CK1, 2 (06-36) (AN3, 843) 2007-2009 01
004 25899517 COVER, D/SEAT BK CUSH (EBONY) CK1 (06-36) (AN3, Z75, 194) (EXC KB6) 2007-2009 01
004 25907742 COVER, D/SEAT BK CUSH (CASHMERE) CK1 (06-36) (AL0, AN3, Z75, 394) (EXC KB6) 2009-2009 01
005 15243902 PAD, D/SEAT BK CUSH CK1, 2, 3 (EXC KB6, HNE, HP2) 2007-2009 01
006 15279347 GUIDE, F/SEAT BK H/RST ADJ ROD (EBONY) (W/BUTTON) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2009 02
006 15279348 GUIDE, F/SEAT BK H/RST ADJ ROD (CASHMERE) (W/BUTTON) CK1, 2, 3 (31I, 33I, 39I) 2007-2009 02
006 15279349 GUIDE, F/SEAT BK H/RST ADJ ROD (TITANIUM) (W/BUTTON) CK1, 2, 3 (83I, 84I) 2007-2009 02
007 15279351 GUIDE, F/SEAT BK H/RST ADJ ROD (EBONY) (W/O BUTTON) CK1, 2, 3 (19I, 22I, 84I) 2007-2009 02
007 15279352 GUIDE, F/SEAT BK H/RST ADJ ROD (CASHMERE) (W/O BUTTON) CK1, 2, 3 (31I, 33I, 39I) 2007-2009 02
007 15279353 GUIDE, F/SEAT BK H/RST ADJ ROD (TITANIUM) (W/O BUTTON) CK1, 2, 3 (83I, 84I) 2007-2009 02
008 25808717 FRAME, D/SEAT BK CUSH (INCLS 9, 15, 16, 43-45) (INCLS LUMBAR SUPPORT, RECLINER, SENSOR MOTOR) CK1, 2, 3 (AN3) (EXC KB6, HNE) 2007-2009 01
010 15827133 RING, F/SEAT BK CUSH CVR HOG CK1, 2, 3 2007-2009 02
011 15232706 PANEL, D/SEAT BK CUSH FIN (EBONY) CK1 (06-36) (AN3, Z75, 194) (EXC KB6) 2007-2009 01
011 15232706 PANEL, D/SEAT BK CUSH FIN (EBONY) CK1, 2 (06-36) (AN3, Y91, Z88, 194) (EXC KB6) 2007-2009 01
011 15933726 PANEL, D/SEAT BK CUSH FIN (INCLS MAP POCKET) (EBONY) (WHEN REPL TRIM WRAP PANELS, REPLACE BOTH DRVR PASS PANELS) CK1, 2 (06-36) (AN3, 193, 843) 2007-2009 01
011 15933727 PANEL, D/SEAT BK CUSH FIN (CASHMERE) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (AN3, 313, 333) 2007-2009 01
011 15933728 PANEL, D/SEAT BK CUSH FIN (TITANIUM) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (AN3, 833) 2007-2009 01
011 20860379 PANEL, D/SEAT BK CUSH FIN (TITANIUM) CK1, 2 (06-36) (AN3, 833) (EXC KB6) 2009-2009 01
011 20860380 PANEL, D/SEAT BK CUSH FIN (CASHMERE) CK1, 2 (06-36) (AN3, 333) (EXC KB6) 2009-2009 01
011 20860381 PANEL, D/SEAT BK CUSH FIN (EBONY) CK1, 2 (06-36) (AN3, 193) (EXC KB6) 2009-2009 01
012 15243904 PAD, D/SEAT CUSH CK1, 2, 3 (EXC KB6, HNE, HP2) 2007-2009 01
013 15827129 COVER, F/SEAT RSR FIN (INCLS 14) (EBONY) (RIGHT LEFT TOE KICK) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2009 02
013 15827130 COVER, F/SEAT RSR FIN (INCLS 14) (CASHMERE) (RIGHT LEFT TOE KICK) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2009 02
013 15827131 COVER, F/SEAT RSR FIN (INCLS 14) (TITANIUM) (RIGHT LEFT TOE KICK) CK1, 2, 3 (83I, 84I) 2007-2009 02
014 RETAINER, F/SEAT ADJR RR FIN CVR (PART OF 13) 2008-2009
015 SENSOR, D/SEAT RECL POSN (PART OF 8) 2008-2009
016 RECLINER, D/SEAT OTR (PART OF 8) 2008-2009
017 11515764 БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) 2007-2009 08
018 RETAINER, F/SEAT ADJR FRT FIN CVR (PART OF 21, 47) 2008-2009
019 12451497 SWITCH, D/SEAT ADJR RECL (8-WAY) (11.558) CK1, 2 (AN3) 2007-2009 01
020 25802502 SWITCH, D/SEAT LUMBAR CONT (EBONY) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2009 01
020 25802504 SWITCH, D/SEAT LUMBAR CONT (CASHMERE) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2009 01
020 25802505 SWITCH, D/SEAT LUMBAR CONT (TITANIUM) CK1, 2 (06-36) (83I) 2007-2009 01
021 15232562 COVER, D/SEAT ADJR FIN (INCLS 18) (EBONY) (8 WAY POWER) CK1, 2 (06-36) (AN3, 19I, 22I, 84I) 2007-2009 01
021 15232563 COVER, D/SEAT ADJR FIN (INCLS 18) (CASHMERE) (8 WAY POWER) CK1, 2 (06-36) (AN3, 31I, 33I, 39I) 2007-2009 01
021 15232564 COVER, D/SEAT ADJR FIN (INCLS 18) (TITANIUM) (8 WAY POWER) CK1, 2 (06-36) (AN3, 83I) 2007-2009 01
023 10325879 KNOB, D/SEAT ADJR SW (EBONY) (11.558) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2009 01
023 15222980 KNOB, D/SEAT ADJR SW (CASHMERE) (11.558) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2009 01
023 15222981 KNOB, D/SEAT ADJR SW (TITANIUM) (11.558) CK1, 2 (06-36) (83I) 2007-2009 01
024 RETAINER, F/SEAT ADJR FIN CVR (PART OF 25) 2008-2009
025 15232584 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (OUTBOARD) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2009 01
025 15232585 COVER, D/SEAT OTR ADJR TRK RR FIN (CASHMERE) (OUTBOARD) CK1, 2 (06-36) (31I, 33I, 39I) 2008-2009 01
025 15232586 COVER, D/SEAT OTR ADJR TRK RR FIN (TITANIUM) (OUTBOARD) CK1, 2 (06-36) (83I) 2007-2009 01
026 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (D/SEAT ADJR FIN CVR) 2007-2009 01
027 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (D/SEAT CUSH OTR FIN PNL) 2007-2009 03
028 15845152 BRACKET, D/SEAT BELT (RETR SI) (O/B) CK1, 2 (AL0) 2007-2009 01
029 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT ADJR TOP PLT) (ACDelco #11517996) 2007-2009 08
030 15243864 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2009 01
030 15243865 COVER, D/SEAT OTR ADJR TRK RR FIN (CASHMERE) (INBOARD) CK1, 2 (06-36) (31I, 33I, 39I) 2008-2009 01
031 15827134 BRACKET, D/SEAT FRT (MAIN BODY HARNESS CONNECTION) (16.686) CK1, 2, 3 2007-2009 01
032 15243850 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2009 01
032 15243851 COVER, D/SEAT INR ADJR TRK FRT FIN (CASHMERE) CK1, 2 (06-36) (31I, 33I, 39I) 2008-2009 01
032 15243852 COVER, D/SEAT INR ADJR TRK FRT FIN (TITANIUM) CK1, 2 (06-36) (83I) 2007-2009 01
033 25865101 HARNESS, D/SEAT WRG CK1 (06) (AL0, AN3, Y91, Z88, 194, 394) (EXC KB6) 2009-2009 01
033 25865101 HARNESS, D/SEAT WRG CK1 (06-36) (AL0, AN3, Z75, 194, 394) (EXC KB6) 2009-2009 01
034 15780680 SENSOR, INFL RST D/SEAT POSITION CK1, 2 2007-2009 01
035 15845153 BRACKET, D/SEAT BELT (BKL SI) (I/B) CK1, 2, 3 (AL0) 2007-2009 01
036 25966538 ADJUSTER, D/SEAT CK1, 2 (06-36) (AN3, X88) 2007-2009 01
036 25966540 ADJUSTER, D/SEAT CK1 (06) (AN3, Z75) 2009-2009 01
036 25966540 ADJUSTER, D/SEAT CK1 (06-36) (AN3, Y91, Z88) 2009-2009 01
037 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2007-2009 02
038 11516075 ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (D/SEAT ADJR MEMORY SW) 2007-2009 04
039 25855629 MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (LABELED 25855629) CK1 (06) (Y91, Z75) (EXC KB6) 2009-2009 01
039 25855629 MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (LABELED 25855629) (16.682) CK1 (06) (Y91, Z75) (EXC KB6) 2009-2009 01
039 25855630 MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (LABELED 25855630) (11.558) CK1, 2 (06) (AN3) (EXC KB6) 2007-2009 01
040 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT BELT (BKL SI)) (ACDelco #11517996) 2007-2009 01
041 19121537 BELT KIT, D/SEAT (BKL SI) (EBONY) CK1, 2 (06) (AN3, 19I, 22I, 84I) 2007-2009 01
041 19121538 BELT KIT, D/SEAT (BKL SI) (CASHMERE) CK1, 2 (06) (AN3, 31I, 33I, 39I) 2007-2009 01
041 19121539 BELT KIT, D/SEAT (BKL SI) (TITANIUM) CK1, 2 (06) (AN3, 83I) 2007-2009 01
042 15854391 FRAME, D/SEAT CUSH CK1, 2 (06) 2007-2009 01
043 RECLINER, D/SEAT INR (PART OF 8) 2008-2009
044 RECLINER, D/SEAT (PART OF 8) 2008-2009
045 MOTOR, D/SEAT RECL ACTR (PART OF 8) 2008-2009
046 15827136 BRACKET, D/SEAT RECL (I/B) CK1, 2, 3 2007-2009 01
047 15243823 COVER, D/SEAT INR RECL FIN (INCLS 18) (EBONY) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2009 01
047 15243824 COVER, D/SEAT INR RECL FIN (INCLS 18) (CASHMERE) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2009 01
047 15243825 COVER, D/SEAT INR RECL FIN (INCLS 18) (TITANIUM) CK1, 2 (06-36) (83I) 2007-2009 01
048 15855909 PROTECTOR, D/SEAT RECL FIN CVR (EBONY) CK1, 2, 3 2007-2009 02
048 15855911 PROTECTOR, D/SEAT RECL FIN CVR (EBONY) CK1, 2, 3 2007-2009 02
049 15232559 HEATER, D/SEAT CUSH CK1, 2, 3 (AN3) (EXC HNE, KB6) 2007-2009 01
050 15827121 COVER, D/SEAT CUSH (EBONY) CK1 (06) (AL0, AN3, Y91, Z88, 194) (EXC KB6) 2009-2009 01
050 15827122 COVER, D/SEAT CUSH (CASHMERE) CK1 (06) (AL0, AN3, Y91, Z88, 394) (EXC KB6) 2009-2009 01
050 15924001 COVER, D/SEAT CUSH (EBONY) CK1, 2 (06-36) (AN3, 223) 2007-2009 01
050 20779849 COVER, D/SEAT CUSH (EBONY) (CARPET INBOARD SIDE FACING) CK1, 2, 3 (AN3, 193) 2009-2009 01
050 20779850 COVER, D/SEAT CUSH (CASHMERE) (CARPET INBOARD SIDE FACING) CK1, 2, 3 (AN3, 313, 333) 2009-2009 01
050 20779851 COVER, D/SEAT CUSH (TITANIUM) (CARPET INBOARD SIDE FACING) CK1, 2, 3 (AN3, 833, 843) 2009-2009 01
050 20779853 COVER, D/SEAT CUSH (EBONY) (CARPET INBOARD SIDE FACING) CK1, 2, 3 (AN3, 853) (NOT YET AVAILABLE) 2009-2009 01
050 25899505 COVER, D/SEAT CUSH (EBONY) CK1 (06-36) (AN3, XA1, A75, 194) (EXC KB6) (EXPORT) 2009-2009 01
050 25899505 COVER, D/SEAT CUSH (EBONY) CK1 (06-36) (AN3, Z75, 194) (EXC KB6) 2009-2009 01
050 25907744 COVER, D/SEAT CUSH (CASHMERE) CK1 (06-36) (AL0, AN3, Z75, 394) (EXC KB6) 2009-2009 01
051 25911156 HEATER, D/SEAT BK CUSH (HEAT ONLY) CK1, 2, 3 (AN3) (EXC KB6) 2007-2009 01
052 25815788 CAP, F/SEAT ADJR TRK END (BLACK) CK1, 2, 3 2007-2009 02
