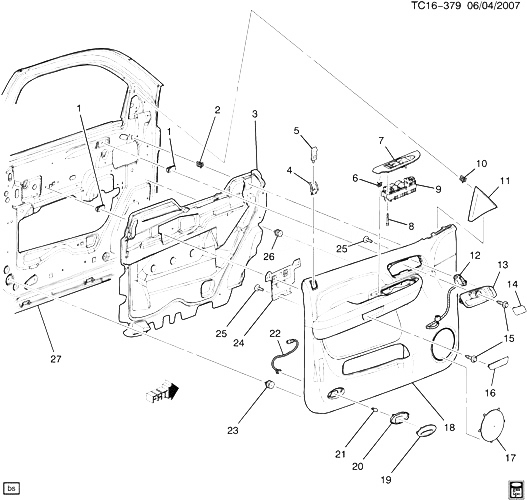

(TC16-379) - 2007-2009 CK1(06-36) ОТДЕЛКА ДВЕРИ/SIDE FRONT-DRIVER (CADILLAC Z75) CADILLAC - ESCALADE ESV (2WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11609385 ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (FRT S/D TR PNL) 2007-2009 03
002 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 18) 2007-2009 01
003 15920724 DEFLECTOR, FRT S/D WAT (PART OF 18) CK1 (06-36) 2007-2009 01
004 COVER, FRT S/D LKG ROD OPG (PART OF 18) 2007-2009
005 15844616 KNOB, FRT S/D LKG ROD (EBONY) CK1, 2, 3 (19I, 22I, 31I, 84I, 85I) 2008-2009 02
005 15844620 KNOB, FRT S/D LKG ROD (COCOA) CK1 (41I) 2008-2009 02
005 20785356 KNOB, FRT S/D LKG ROD (CASHMERE) CK1 (Z75, 39I) 2009-2009 02
006 11588650 CLIP, 12X14X16.6, GM4345M (DR LK SI WDO RLY (PUSH IN)) 2007-2009 03
007 25866617 BEZEL, FRT S/D WDO SW (COCOA) CK1 (ULT, Z75, 41I) 2008-2009 01
007 25873114 BEZEL, FRT S/D WDO SW (WALNUT) CK1 (Z75, 19I) 2009-2009 01
007 25873115 BEZEL, FRT S/D WDO SW (CASHMERE) CK1 (Z75, 39I) 2009-2009 01
008 БОЛТ, FRT S/D WDO SW BZL 2007-2009
009 20877337 SWITCH, DR LK SI WDO CK1 (Z75) 2009-2009 01
009 25783953 SWITCH, DR LK SI WDO (ACDelco #D1467G) CK1 (Z75) 2009-2009 01
010 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 11) 2007-2009 01
011 25857282 PANEL, FRT S/D UPR FRT TR (INCLS 10) (EBONY) CK1 (Z75, 19I) 2007-2009 01
011 25857283 PANEL, FRT S/D UPR FRT TR (INCLS 10) (COCOA) CK1 (Z75, 41I) 2008-2009 01
011 25906770 PANEL, FRT S/D UPR FRT TR (INCLS 10) (CASHMERE) CK1 (Z75, 39I) 2009-2009 01
012 25822439 SWITCH, D/SEAT ADJR MEMORY (PART OF 18) CK1 (06-36) (Z75) 2009-2009 01
013 15920707 HANDLE, FRT S/D I/S (PART OF 18) (EBONY) (W/CHROME HDL) CK1 (06-36) (Z75, 19I) 2007-2009 01
013 15935951 HANDLE, FRT S/D I/S (PART OF 18) (EBONY) (W/CHROME REL HDL) CK1, 2 (06-36) (AN3, 19I) 2009-2009 01
013 25815291 HANDLE, FRT S/D I/S (PART OF 18) CK1 (06) (ULT, Z75) 2008-2009 01
013 25906818 HANDLE, FRT S/D I/S (PART OF 18) (CASHMERE) CK1 (06-36) (Z75, 39I) 2009-2009 01
014 25897906 COVER, FRT S/D I/S HDL BZL FIN (EBONY) CK1, 2 (06) (19I) 2009-2009 01
014 25897910 COVER, FRT S/D I/S HDL BZL FIN (COCOA) CK1 (06) (39I, 41I) 2007-2009 01
014 25906776 COVER, FRT S/D I/S HDL BZL FIN (CASHMERE) CK1 (06-36) (Z75, 39I) 2009-2009 01
015 11570136 БОЛТ, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (FRT S/D T/PNL) 2007-2009 03
016 15214060 COVER, FRT S/D T/PNL (EBONY) CK1, 2 (06-36) (19I) 2009-2009 01
016 15214061 COVER, FRT S/D T/PNL (CASHMERE) CK1 (06-36) (33I, 39I) 2007-2009 01
016 25815658 COVER, FRT S/D T/PNL (LINEN) CK1 (06) (41I) 2008-2009 01
017 GRILLE, RDO FRT SPKR (PART OF 18) (41I) 2008-2009
017 15939207 GRILLE, RDO FRT SPKR (PART OF 18) (CASHMERE) (9.665) CK1 (06-36) (Z75, 30I) 2007-2009 02
017 15939208 GRILLE, RDO FRT SPKR (PART OF 18) (EBONY) (9.665) CK1 (06-36) (Z75, 19I) 2009-2009 02
018 25822705 PANEL, FRT S/D TR (INCLS 2-4, 12, 13, 17, 19-26) (LINEN) CK1 (06) (ULT, Z75, 41I) 2008-2009 01
018 25974175 PANEL, FRT S/D TR (INCLS 2-4, 12, 13, 17, 19-26) (EBONY) CK1 (06-36) (Z75, 19I) 2009-2009 01
018 25974176 PANEL, FRT S/D TR (INCLS 2-4, 12, 13, 17, 19-26) (CASHMERE) CK1 (06-36) (Z75, 39I) 2009-2009 01
019 LENS, FRT S/D WRNG LP (PART OF 18, 20) 2007-2009
020 15876516 LAMP, CTSY (INCLS 19) (PART OF 18) (FRT S/D) CK1 (06) (ULT, Z75) 2009-2009 01
021 09425542 BULB, LAMP #192 (PART OF 18, 20) (ACDelco #L168) 2007-2009 01
022 HARNESS, FRT S/D CTSY WRNG LP P/W WRG (PART OF 18) 2007-2009
023 11519031 RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 18) 2007-2009 08
024 BRACKET, FRT S/D A/RST (PART OF 18) 2007-2009
025 БОЛТ, FRT S/D TR (PART OF 18) 2007-2009
026 11519032 RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 18) 2007-2009 03
027 25912653 DOOR, FRT SI (СМ. ГРУППУ 16.000 АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (W/O HINGES) CK1, 2 (06-36) (Z75) 2007-2009 01
