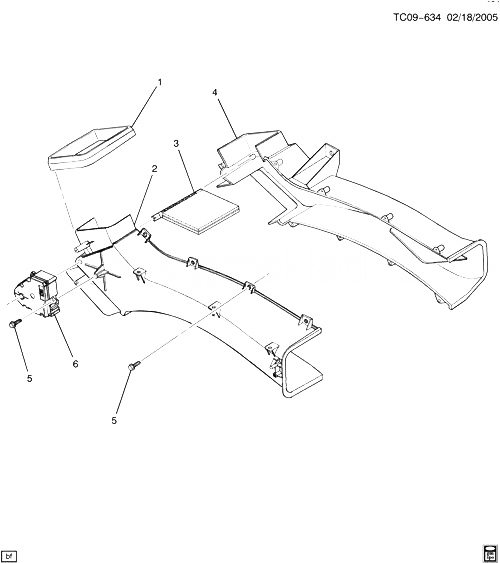

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
52487341 |
SEAL, AIR DISTR DUCT |
CK109, 2 (06) (CJ2, CJ3, C36, C69) |
2007-2009 |
01 |
| 002 |
52479791 |
DUCT, FLR RR AIR OTLT (INNER) |
CK109, 2 (06) (CJ2, CJ3, C36, C69) |
2007-2009 |
01 |
| 003 |
52478198 |
VALVE, MODE (AUX) (ACDelco #15-50588) |
CK109, 2 (06) (CJ2, CJ3, C36, C69) |
2007-2009 |
01 |
| 004 |
52478199 |
DUCT, FLR RR AIR OTLT (OUTER) |
CK109, 2 (06) (CJ2, CJ3, C36, C69) |
2007-2009 |
01 |
| 005 |
11609370 |
BOLT-HWH, M4.2X1.41X20, HI - LOW THD, , OD 12, 6010 STL, GMW4205, TAP (FLR AIR OTLT DUCT) (9.667) |
|
2007-2009 |
02 |
| 006 |
89018375 |
ACTUATOR, TEMP VLV (AUX) (ACDelco #15-72972)
| CK109, 2 (06) (CJ2, CJ3, C36, C69) |
2007-2009 |
01 |
|
