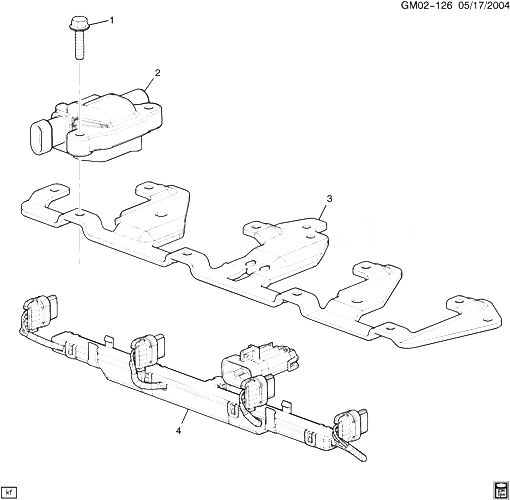

(GM02-126) - 2009 CK1,2,3 COIL MODULE/IGNITION (MELCO)(LY6/6.0K,L76/6.0Y,L9H/6.2-2) CADILLAC - ESCALADE ESV (2WD) 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 11516424 | БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (IGN COIL)|
| 2007-2009 |
16 |
|
| 002 | 12611424 | COIL, IGN (MELCO-MITSUBISHI) (W/SQUARE-SHAPED COILS AND MARKED 12570616) (ACDelco #D510C) | CK1 (L9H) | 2009-2009 | 08 |
| 003 | 12580353 | BRACKET, IGN COIL (ACDelco #12580353) | CK1 (L9H) | 2009-2009 | 01 |
| 004 | 12579355 | WIRE, IGN COIL (INCLSCONNECTORS) (ACDelco #357A) | CK1 (L9H) | 2009-2009 | 01 |
