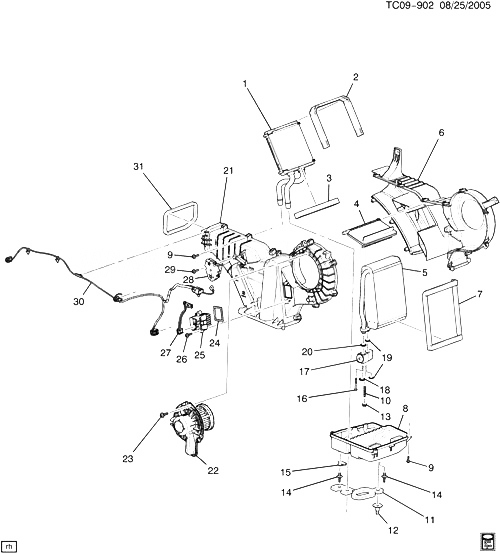

(TC09-902) - 2007-2009 CK109,2(06) AUXILIARY A/C EVAPORATOR BLOWER HEATER ASM (C69, MANUAL TEMPERATURE CONTROL CJ3) CADILLAC - ESCALADE ESV (2WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15225891 CORE, AUX HTR (ACDelco #15-63353) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
002 SEAL, AUX HTR CORE (*KIT1) 2007-2009
003 SEAL, AUX HTR CORE (*KIT1) 2007-2009
004 52495923 VALVE, TEMP (AUX) (ACDelco #15-5717) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
005 15225889 EVAPORATOR, AUX A/C (ACDelco #15-63354) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
006 15225885 CASE, AUX A/C EVPR BLO CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
007 SEAL, AUX A/C EVPR (*KIT1) 2007-2009
008 15225890 COVER, AUX HTR CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
009 11609829 БОЛТ, AUX HTR A/C EVPR BLO MDL (4.2X2.25X16) (9.786) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 25
010 11562519 STUD, A/C EVPR HOSE CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
011 SEAL, A/C EVPR TUBE (*KIT1) 2007-2009
012 15650071 VALVE, AUX A/C EVPR BLO MDL DRN (ACDelco #15650071) CK1, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
013 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CMPR CNDSR HOSE) (*KIT2) (8.915) (ACDelco #11514596) 2007-2009 01
014 89018613 STUD, HTR A/C EVPR BLO MDL (STUD-FLANGE, M6X1X25) CK109, 2 (CJ2, CJ3, C69) 2007-2009 01
015 52482830 CLAMP, HTR CORE TUBE CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
015 52482830 CLAMP, HTR CORE TUBE (8.846) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
016 10308604 БОЛТ, A/C EVPR TXV (M5X.8X53MM) (PART OF MODULE) (*KIT2) (9.242) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 02
017 VALVE, AUX A/C EVPR THERMAL EXPN (*KIT2) 2007-2009
018 89019245 SEAL, A/C EVPR TXV (23.5 OD X 15.5MM ID) (9.222) (ACDelco #15-33898) CK109, 2 (06) (CJ2, CJ3, C69) 2008-2009 01
019 52474373 SEAL, A/C EVPR TXV (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (*KIT2) (9.222) (ACDelco #15-31055) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
020 02724966 SEAL, A/C CMPR HOSE (25MM OD X 17MM ID, 3/4IN DIA) (FOR NON-CANADIAN ORDERS) (*KIT2) (ACDelco #15-31101) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
021 15225886 CASE, AUX A/C EVPR BLO CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
022 52495789 MOTOR, AUX BLO (ACDelco #15-8792) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
022 52495789 MOTOR, AUX BLO (8.855) (ACDelco #15-8792) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
023 11609829 БОЛТ, AUX HTR A/C EVPR BLO MDL (4.2X2.25X16) (9.786) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 25
024 INSULATOR, BLO MOT CONT MDL (PART OF 25) 2007-2009
025 15141283 MODULE, BLO MOT CONT (INCLS 24) (ACDelco #15-80863) CK1, 2, 3 2007-2009 01
026 11609829 БОЛТ, AUX HTR A/C EVPR BLO MDL (4.2X2.25X16) (9.786) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 25
027 15225888 HARNESS, A/C WRG (ACDelco #15-75217) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
028 89018375 ACTUATOR, TEMP VLV (AUX) (ACDelco #15-72972) CK109, 2 (06) (CJ2, C36, C69, CJ3) 2007-2009 01
029 11609829 БОЛТ, AUX HTR A/C EVPR BLO MDL (4.2X2.25X16) (9.786) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 25
030 15225887 HARNESS, AUX HTR A/C WRG CK109, 2 (06) (CJ3, C69) 2007-2008 01
031 52484090 SEAL, AUX HTR A/C MDL OTLT DUCT (*KIT1) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
K01 15225899 SEAL KIT, AUX HTR A/C EVAP MDL (INCLS 2, 3, 7, 11, 31) CK109, 2 (06) 2007-2009 01
K02 52495729 VALVE KIT, AUX A/C EVPR THERMAL EXPN (INCLS 13, 16-20) (ACDelco #15-50141) CK109, 2 (06) (CJ2, CJ3, C69) 2007-2009 01
