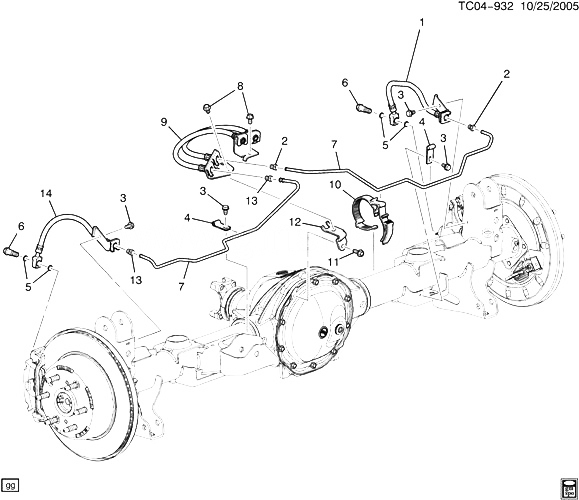

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25906096 |
HOSE, RR BRK (AT CALIPER) (INCLS 5, 6) (ACDelco #176-1526)
| CK1 (06-36) (JD9, J92) |
2008-2009 |
01 |
|
| 002 |
11569751 |
ГАЙКА, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (RR BRK C/OVR PIPE)
|
2007-2009 |
02 |
|
| 003 |
11515756 |
БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (RR BRK C/OVR PIPE BRKT)
|
2007-2009 |
04 |
|
| 004 |
11561240 |
CLAMP, SINGLE CLOSED-LOOP, DIA 7.25MM, C-TO-C 36.5, WIDTH 20, HOLE DIA 11 (RR BRK C/OVR PIPE) (8.948) |
|
2007-2009 |
01 |
| 005 |
21012386 |
WASHER, RR BRK HOSE (PART OF 1, 14) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386)
| CK1 (06-36) |
2007-2009 |
04 |
|
| 006 |
11570052 |
БОЛТ, RR BRK HOSE (PART OF 1, 14) (M10X1X27.5, 16.9THD) |
CK1 (06-36) |
2007-2009 |
02 |
| 007 |
88983905 |
PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING)
| CK1, 2, 3 |
2007-2009 |
AR |
|
| 008 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (RR BRK HOSE BRKT) |
|
2007-2009 |
02 |
| 010 |
15234822 |
STRAP, RR BRK PIPE |
CK1 |
2007-2009 |
AR |
| 011 |
12471307 |
БОЛТ, R/AXL HSG CVR (M8X1.25X20) |
CK1 |
2007-2009 |
09 |
| 012 |
15791254 |
BRACKET, RR BRK C/OVR PIPE (CONTAINS BRACKET SCREW)
| CK1 |
2007-2009 |
01 |
|
| 013 |
11569751 |
ГАЙКА, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (RR BRK C/OVR PIPE)
|
2007-2009 |
02 |
|
| 014 |
25906097 |
HOSE, RR BRK (AT CALIPER) (INCLS 5, 6) (ACDelco #176-1528) |
CK1 (06-36) (JD9, J92) |
2008-2009 |
01 |
