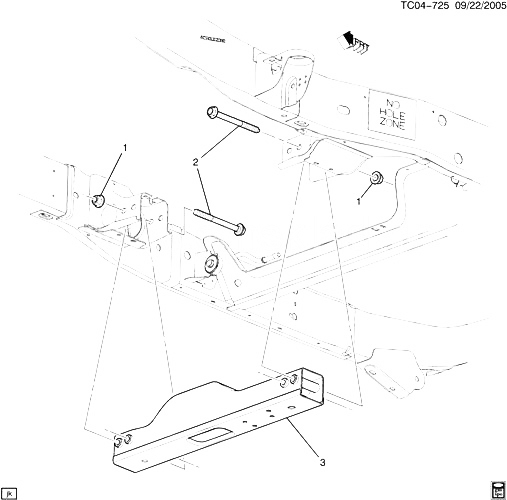

(TC04-725) - 2008 C1 FRAME/TRANSMISSION SUPPORTS (MYC,M30,M70) CADILLAC - ESCALADE ESV (2WD) 2008
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 11516382 | ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (TRANS SUPT C/MBR)|
| 2007-2009 |
04 |
|
| 002 | 11589247 | BOLT-HFH, M14X2X165.5, 58.2 THD, 30.5 ID, 10.9, 7114M, MACH, CONE-PT (TRANS SUPT C/MBR) | 2007-2009 | 04 | |
| 003 | 10398965 | CROSSMEMBER, TRANS SUPT (CURVED TO THE FRT) | C109 (06) (MYC) | 2008-2009 | 01 |
| 003 | 15201164 | CROSSMEMBER, TRANS SUPT (CURVED TO THE REAR) | C109 (06-36) | 2007-2008 | 01 |
