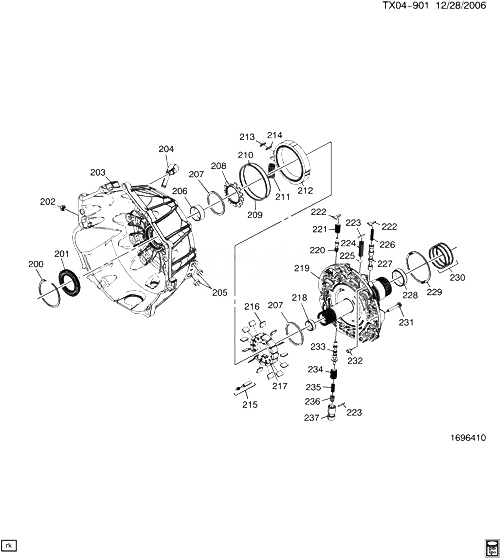

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 200 |
24218963 |
RING, T/CV FLUID SEAL RET
| CK1 (MYC) |
2007-2009 |
01 |
|
| 201 |
24237531 |
SEAL, T/CV FLUID (ACDelco #24237531)
| CK1 (MYC) |
2007-2009 |
01 |
|
| 202 |
00444613 |
PLUG, HEX HD, 1/8-27 NPTF, STL (LINE PRESS TEST HOLE) (ACDelco #444613) |
|
2007-2009 |
01 |
| 203 |
24236120 |
ШЛАНГИ, T/CV (MCHG) (INCLS 206) (ACDelco #24236120) |
CK1 (MYC) |
2007-2009 |
01 |
| 204 |
24231684 |
PIPE, A/TRNS VENT |
CK1 (MYC) |
2007-2009 |
01 |
| 205 |
24237658 |
SEAL, TRANS FLUID CLR PIPE FTG (SEALS ONE PIPE)
| CK1 (MYC) |
2007-2009 |
02 |
|
| 206 |
|
BUSHING, T/CV (PART OF 203) |
|
2007-2009 |
|
| 207 |
|
RING, A/TRNS ГИДРОНАСОС VANE (*KIT1) |
|
2007-2009 |
|
| 208 |
|
GUIDE, A/TRNS ГИДРОНАСОС ROT (*KIT1) |
|
2007-2009 |
|
| 209 |
|
RING, A/TRNS ГИДРОНАСОС SLIDE FLUID SEAL (*KIT1) |
|
2007-2009 |
|
| 210 |
|
SEAL, A/TRNS O/PMP SLIDE (O RING) (*KIT1) |
|
2007-2009 |
|
| 211 |
|
ПРУЖИНА, A/TRNS ГИДРОНАСОС SLIDE OTR (*KIT1) |
|
2007-2009 |
|
| 212 |
24222668 |
SLIDE, A/TRNS ГИДРОНАСОС (17.948MM-17.961MM) (ACDelco #24222668) |
CK1 (MYC) |
2007-2009 |
01 |
| 212 |
24224131 |
SLIDE, A/TRNS ГИДРОНАСОС (17.961MM-17.974MM) (ACDelco #24224131) |
CK1 (MYC) |
2007-2009 |
01 |
| 212 |
24224132 |
SLIDE, A/TRNS ГИДРОНАСОС (17.974MM-17.987MM) (ACDelco #24224132) |
CK1 (MYC) |
2007-2009 |
01 |
| 213 |
|
SEAL, A/TRNS ГИДРОНАСОС SLIDE (*KIT1) |
|
2007-2009 |
|
| 214 |
|
SUPPORT, A/TRNS ГИДРОНАСОС SLIDE SEAL (*KIT1) |
|
2007-2009 |
|
| 215 |
|
PIN, A/TRNS ГИДРОНАСОС SLIDE PIV (*KIT1) |
|
2007-2009 |
|
| 216 |
|
VANE, A/TRNS ГИДРОНАСОС (*KIT1) |
|
2007-2009 |
|
| 217 |
|
ROTOR, A/TRNS ГИДРОНАСОС (*KIT1) |
|
2007-2009 |
|
| 218 |
|
BUSHING, TURB SHF FRT (*KIT2) |
|
2007-2009 |
|
| 219 |
|
COVER, A/TRNS ГИДРОНАСОС (*KIT2) |
|
2007-2009 |
|
| 220 |
|
VALVE, CONV FEED LIM (*KIT2) |
|
2007-2009 |
|
| 221 |
|
ПРУЖИНА, CONV FEED LIM VLV (*KIT2) |
|
2007-2009 |
|
| 222 |
|
RETAINER, CONV FEED LIM VLV SPR (*KIT2) |
|
2007-2009 |
|
| 223 |
|
PIN, PRESS RLF BALL VLV SPR (*KIT2) |
|
2007-2009 |
|
| 224 |
|
ПРУЖИНА, PRESS RLF BALL VLV (*KIT2) |
|
2007-2009 |
|
| 225 |
00147500 |
VALVE, PRESS RLF BALL (*KIT2) |
CK1 (MYC) |
2007-2009 |
01 |
| 226 |
|
ПРУЖИНА, TCC C/VLV (*KIT2) |
|
2007-2009 |
|
| 227 |
|
VALVE, TCC CONT (*KIT2) |
|
2007-2009 |
|
| 228 |
|
BUSHING, TURB SHF RR (*KIT2) |
|
2007-2009 |
|
| 229 |
24224692 |
WASHER, 1-2-3-4 3-5 REV CLU HSG THR (*KIT2) |
CK1 (MYC) |
2007-2009 |
01 |
| 230 |
24238248 |
RING, 1-2-3-4 3-5 REV CLU FLUID SEAL (*KIT2) |
CK1 (MYC) |
2007-2008 |
03 |
| 231 |
24227061 |
БОЛТ, A/TRNS ГИДРОНАСОС CVR (ACDelco #24227061)
| CK1 (MYC) |
2007-2009 |
13 |
|
| 232 |
90351709 |
PIN, A/TRNS ГИДРОНАСОС LOC (8MM HOLLOW SPLIT PIN) (*KIT2) (1.639)
| CK1 (MYC) |
2007-2009 |
01 |
|
| 233 |
|
VALVE, PRESS REG (*KIT2) |
|
2007-2009 |
|
| 234 |
|
ПРУЖИНА, PRESS REG VLV OTR (*KIT2) |
|
2007-2009 |
|
| 235 |
|
ПРУЖИНА, PRESS REG VLV INR (*KIT2) |
|
2007-2009 |
|
| 236 |
|
VALVE, ISOLATOR (*KIT2) |
|
2007-2009 |
|
| 237 |
|
SLEEVE, ISOLATOR VLV (*KIT2) |
|
2007-2009 |
|
| K01 |
24236935 |
ROTOR PKG, A/TRNS ГИДРОНАСОС (INCLS 207-211, 213-217) (17.948MM-17.961MM) (4.224) (ACDelco #24236935) |
CK1 (MYC) |
2007-2008 |
01 |
| K01 |
24236936 |
ROTOR PKG, A/TRNS ГИДРОНАСОС (INCLS 207-211, 213-217) (17.961MM-17.974MM) (4.224) (ACDelco #24236936) |
CK1 (MYC) |
2007-2008 |
01 |
| K01 |
24236937 |
ROTOR PKG, A/TRNS ГИДРОНАСОС (INCLS 207-211, 213-217) (17.974MM-17.987MM) (4.224) (ACDelco #24236937) |
CK1 (MYC) |
2007-2008 |
01 |
| K02 |
24236939 |
COVER KIT, A/TRNS ГИДРОНАСОС (INCLS 218-230, 232-237) (ACDelco #24236939) |
CK1 (MYC) |
2007-2008 |
01 |
