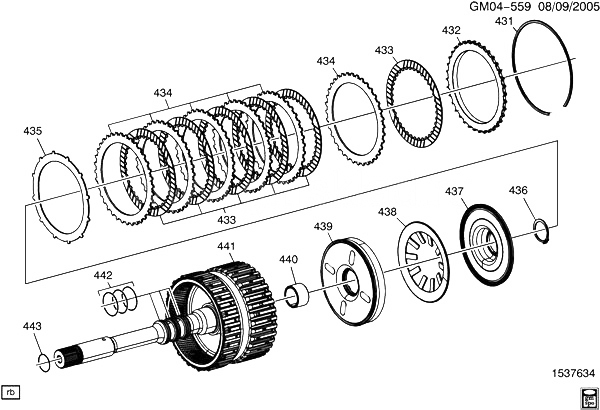

(GM04-559) - 2007-2009 CK1 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYC) (6L80) 4-5-6 ДЕТАЛИ СЦЕПЛЕНИЯ ВАЛ ТУРБИНЫ CADILLAC - ESCALADE ESV (2WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
431 24233406 RING, 4-5-6 CLU BKG PLT RET (PURPLE) (2.49MM +/- 0.05) CK1 (MYC) 2007-2009 01
431 24233407 RING, 4-5-6 CLU BKG PLT RET (YELLOW) (1.65MM +/- 0.05) CK1 (MYC) 2007-2009 01
431 24233408 RING, 4-5-6 CLU BKG PLT RET (NONE) (2.07MM +/- 0.05) CK1 (MYC) 2007-2009 01
432 24240654 PLATE, 4-5-6 CLU BKG CK1 (MYC) 2007-2009 01
433 24224158 PLATE, 4-5-6 CLU (PKG OF 7) (FIBER) (*KIT1) CK1 (MYC) 2007-2009 01
434 24224648 PLATE, 4-5-6 CLU (PKG OF 7) (STEEL) CK1 (MYC) 2007-2009 01
435 24224647 PLATE, 4-5-6 CLU (WAVED) CK1 (MYC) 2007-2009 01
436 24237851 RING KIT, RET (1234 DAM, 1234 HSG, 456 DAM) (4.224) CK1 (MYC) 2007-2009 01
437 24232417 DAM, 4-5-6 CLU PSTN CK1 (MYC) 2007-2009 01
438 24224714 ПРУЖИНА, 4-5-6 CLU CK1 (MYC) 2007-2009 01
439 24232416 PISTON, 4-5-6 CLU CK1 (MYC) 2007-2009 01
440 BUSHING, OUTPUT CARR SHF HSG (PART OF 441) 2007-2009
441 24237556 ШЛАНГИ, 4-5-6 CLU (W/ INPUT SHF) (INCLS 440) (ACDelco #24237556) CK1 (MYC) 2007-2009 01
442 24224655 RING, TURB SHF FLUID SEAL (ACDelco #24224655) CK1 (MYC) 2007-2009 03
443 24219390 SEAL, TURB SHF (O RING) (ACDelco #24219390) CK1 (MYC) 2007-2009 01
K01 24238258 PLATE KIT, CLU (INCLS 433) (ACDelco #24238258) CK1 (MYC) 2008-2008 01
