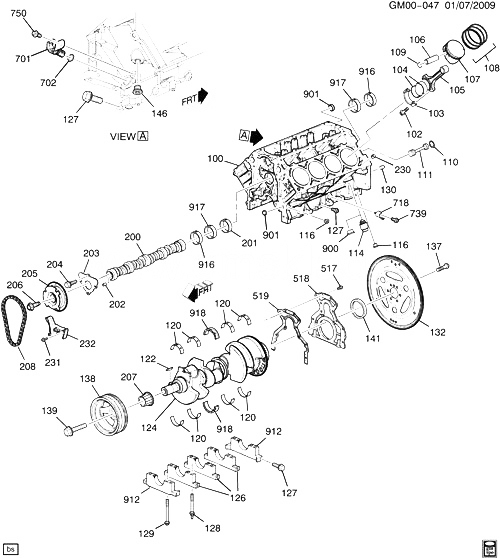

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 100 |
|
BLOCK, ENG |
|
2007-2008 |
|
| 102 |
11570662 |
БОЛТ, CONN ROD (PART OF 105) (MJ9X44, 13 THD, 15.5 OD, 12.9, PL) |
CK1 (L92, LY2, LY5, L76, LH6) |
2007-2008 |
16 |
| 103 |
|
CAP, CONN ROD (PART OF 105) |
|
2007-2008 |
|
| 104 |
12493712 |
BEARING KIT, CONN ROD (STD) |
CK1 (L92) |
2007-2008 |
08 |
| 105 |
12607475 |
ROD, CONN (INCLS 102, 103, 106) |
CK1 (L92) |
2007-2008 |
08 |
| 106 |
|
BUSHING, CONN ROD (PART OF 105) |
|
2007-2008 |
|
| 107 |
19178595 |
PISTON, (W/PIN) (INCLS 109) (0.5MM O.S.) |
CK1 (L92) |
2007-2008 |
08 |
| 107 |
19178597 |
PISTON, (W/PIN) (INCLS 109) (STD) |
CK1 (L92) |
2007-2008 |
08 |
| 108 |
89018049 |
RING KIT, PSTN (STD)
| CK1 (L92) |
2007-2008 |
08 |
|
| 108 |
89018050 |
RING KIT, PSTN (0.5 MM O.S.) |
CK1 (L92) |
2007-2008 |
01 |
| 109 |
12569638 |
RETAINER, PSTN PIN (PART OF 107) |
CK1 (L92, LY2, LY5, L76, LH6) |
2007-2008 |
16 |
| 110 |
|
SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) |
|
2007-2008 |
|
| 111 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (INCLS 110) (1.531) |
|
2007-2008 |
01 |
| 116 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE)
|
2007-2009 |
03 |
|
| 120 |
89017571 |
BEARING KIT, CR/SHF (#1, 2, 4, 5) (STD) |
CK1 (L92) |
2007-2008 |
04 |
| 122 |
12561513 |
KEY, CR/SHF BALR (4.8MMX37.5MM)
| CK1 (L92, LY2, LY5, L76, LH6) |
2007-2008 |
01 |
|
| 124 |
12584997 |
CRANKSHAFT, |
CK1 (L92) |
2007-2008 |
01 |
| 126 |
|
CAP, CR/SHF BRG |
|
2007-2008 |
|
| 127 |
12556127 |
БОЛТ, CR/SHF BRG CAP (SIDE) (SHORT) (M8X1.25X24)
| CK1 (L92) |
2007-2008 |
10 |
|
| 128 |
12560273 |
STUD, CR/SHF BRG CAP (HFH, M10X2X23, M8X1.25X11, 113.5 TOTAL LONG)
| CK1 (L92) |
2007-2008 |
10 |
|
| 129 |
12560272 |
БОЛТ, CR/SHF BRG CAP (LONG) (M10X2X102.5, 24.5)
| CK1 (L92) |
2007-2008 |
10 |
|
| 130 |
01453658 |
PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) |
|
2007-2009 |
02 |
| 132 |
12606620 |
PLATE, A/TRNS FLEX (AUTO TRANSMISSION) |
CK1 (L92) |
2007-2008 |
01 |
| 137 |
|
БОЛТ, FLYWHL |
|
2007-2008 |
|
| 137 |
11569956 |
БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER)
| CK1 (L92) |
2007-2008 |
06 |
|
| 138 |
12576652 |
BALANCER, CR/SHF |
CK1 (L92, LY2, LY5, L76, LH6) |
2007-2008 |
01 |
| 139 |
12557840 |
БОЛТ, CR/SHF BALR (M16X2.0X103)
| CK1 (L92) |
2007-2008 |
01 |
|
| 141 |
89060436 |
SEAL KIT, CR/SHF RR OIL (REVERSE LIP SEAL, INCL INSTRUCTION SHEET)
| CK1 (L92, LY2, LY5, L76, LH6) |
2007-2008 |
01 |
|
| 200 |
12612273 |
CAMSHAFT, ENG (INCL PIN) (INCLS 202) (VEHICLES BUILT WITHOUT ACTIVE FUEL MANAGEMENT (AFM)) |
CK1 (06-36-43) (L92, MYC) |
2008-2008 |
01 |
| 201 |
19167218 |
BEARING, CM/SHF (POSN #3)
| CK1 (L92) |
2008-2008 |
01 |
|
| 202 |
24575061 |
PIN, CM/SHF SPKT LOC (PART OF 200) (17MM LONG) |
CK1 (L92, LY2, LY5, L76, LH6) |
2007-2008 |
01 |
| 203 |
12589016 |
RETAINER, CM/SHF (USE WITH BOLT 11561455) |
CK1 (L92) |
2007-2008 |
01 |
| 204 |
11561283 |
БОЛТ, HVY HX FLG HD, M16X1.5X63, GMW25 (8.8) STL, GMW3359 (CM/SHF RET) |
|
2007-2009 |
04 |
| 205 |
12585994 |
ACTUATOR, CM/SHF POSN |
CK1 (L92) |
2007-2008 |
01 |
| 206 |
12588151 |
VALVE, CM/SHF POSN ACTR SOL |
CK1 (L92) |
2007-2008 |
01 |
| 207 |
12556582 |
SPROCKET, CR/SHF
| CK1 (L92, LY2, LY5, L76, LH6) |
2007-2008 |
01 |
|
| 208 |
12586482 |
CHAIN, CM/SHF TMG
| CK1 (L92) |
2007-2008 |
01 |
|
| 230 |
12570326 |
PIN, CYL HD LOC
| CK1 (L92, LY2, LY5, L76, LH6) |
2007-2008 |
04 |
|
| 231 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 232)
|
2007-2009 |
02 |
|
| 232 |
12626407 |
РОЛИК НАТЯЖИТЕЛЬ KIT, TMG CHAIN (INCLS BOLT, RETAINER) (INCLS 231) |
CK1 (L92) |
2007-2008 |
01 |
| 517 |
12556127 |
БОЛТ, CR/SHF BRG CAP (SIDE) (SHORT) (M8X1.25X24)
| CK1 (L92) |
2007-2008 |
10 |
|
| 518 |
12615666 |
ШЛАНГИ, CR/SHF RR OIL SEAL (INCLS BOLT, SEAL, GASKET, ШЛАНГИ) |
CK1 (L92, LY2, LY5, L76, LH6) |
2007-2008 |
01 |
| 519 |
12593587 |
GASKET, CR/SHF RR OIL SEAL HSG |
CK1 (L92, LY2, LY5, L76, LH6) |
2007-2008 |
01 |
| 701 |
12585546 |
SENSOR, CR/SHF POSN (INCLS 702) (ACDelco #213-3520)
| CK1 (L92) |
2007-2008 |
01 |
|
| 702 |
|
SEAL, O-RING CR/SHF POSN (PART OF 701) |
|
2007-2008 |
|
| 718 |
12570125 |
SENSOR, KNOCK (ACDelco #213-1576) |
CK1 (L92) |
2007-2008 |
02 |
| 750 |
11515756 |
БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (BOLT, CR/SHF POSN SEN)
|
2007-2009 |
01 |
|
| 900 |
11609289 |
PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (ENG BLK COOL DRN HOLE) (8.971) |
|
2007-2009 |
01 |
| 901 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) |
|
2007-2009 |
01 |
| 912 |
|
CAP, CR/SHF BRG |
|
2007-2008 |
|
| 916 |
19167383 |
BEARING, CM/SHF (POSN #1, 5)
| CK1 (L92) |
2008-2008 |
02 |
|
| 917 |
19167382 |
BEARING, CM/SHF (# 24)
| CK1 (L92) |
2008-2008 |
02 |
|
| 918 |
89017572 |
BEARING KIT, CR/SHF THR (STD) (#3) |
CK1 (L92) |
2007-2008 |
01 |
