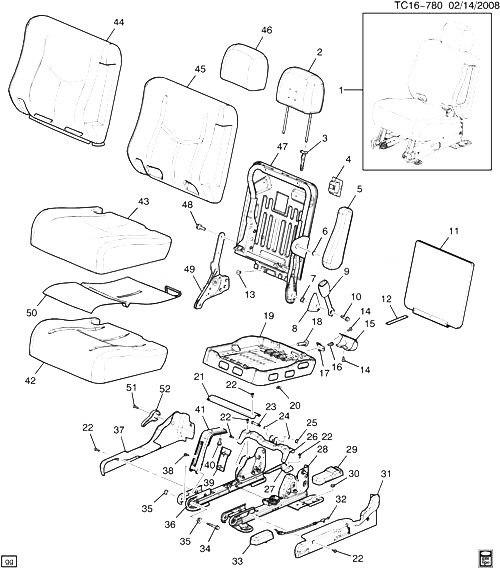

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
SEAT, RR (ONLY AVAILABLE FOR CURRENT MODEL VEHICLES) |
|
2003-2006 |
|
| 002 |
88940263 |
PAD, R/SEAT H/RST (NON-PIVOTING) |
CK159, 2 (06) (AL4) |
2003-2006 |
02 |
| 003 |
12478329 |
SUPPORT, R/SEAT H/RST (PEWTER) (W/BUTTON) |
CK159, 2 (06) (AL4, 922) |
2003-2006 |
04 |
| 003 |
12479643 |
SUPPORT, R/SEAT H/RST (SHALE) (W/BUTTON) |
CK159, 2 (06) (AL4, 522) (EXC Y91) |
2003-2006 |
04 |
| 004 |
12477414 |
LATCH, R/SEAT BK CUSH (FILLER) (PEWTER) |
CK159, 2 (06) (AL4, 922) (EXC Y91) |
2003-2006 |
02 |
| 005 |
88976679 |
ARMREST, R/SEAT (INCLS 6) (PEWTER) |
CK159, 2 (06) (AL4, 922) (EXC Y91) |
2003-2006 |
01 |
| 005 |
88976681 |
ARMREST, R/SEAT (INCLS 6) (SHALE) |
CK159, 2 (06) (AL4, 522) (EXC Y91) |
2003-2006 |
01 |
| 005 |
88976685 |
ARMREST, R/SEAT (INCLS 6) (PEWTER) |
CK1 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
01 |
| 005 |
88976687 |
ARMREST, R/SEAT (INCLS 6) (SHALE) |
CK1 (06) (AL4, AN3, Y91, Z75, 152) |
2003-2006 |
01 |
| 006 |
|
CLIP, R/SEAT A/RST (PART OF 5) |
|
2004-2006 |
|
| 007 |
88939502 |
BUSHING, R/SEAT BK CUSH LAT (CABLE) |
CK1, 259 (06) (AL4) |
2003-2006 |
04 |
| 008 |
88978733 |
COVER, R/SEAT BELT BOLT (BKL SI) (WHEAT) |
CK1, 2 (06) |
2003-2006 |
01 |
| 009 |
88955198 |
BELT KIT, R/SEAT (BKL SI) (PEWTER) (SINGLE BKL) (USED FOR RH LH SIDES)
| CK1, 2 (06) (AL4, 922) |
2003-2006 |
01 |
|
| 009 |
88955201 |
BELT KIT, R/SEAT (BKL SI) (SHALE) (SINGLE BKL) (USED FOR RH LH SIDES) |
CK1 (06) (AL4, Y91, Z75, 15I) |
2003-2006 |
01 |
| 010 |
88941786 |
БОЛТ, R/SEAT (M10X1.5X40) |
CK1, 2 (06) (AL4) |
2003-2006 |
01 |
| 011 |
12477422 |
PANEL, R/SEAT BK CUSH FIL (PEWTER) |
CK159, 2 (06) (AL4, 922) (EXC Y91) |
2003-2006 |
01 |
| 011 |
88937925 |
PANEL, R/SEAT BK CUSH FIL (NEUTRAL) |
CK159, 2 (06) (AL4, 522) (EXC Y91) |
2003-2006 |
01 |
| 012 |
12477416 |
STRAP, R/SEAT BK CUSH LAT (PEWTER) |
CK1, 2 (06) (AL4, 922) (EXC Y91) |
2003-2006 |
02 |
| 012 |
12479651 |
STRAP, R/SEAT BK CUSH LAT (SHALE) |
CK1 (06) (AL4, 152) |
2003-2006 |
02 |
| 012 |
12479651 |
STRAP, R/SEAT BK CUSH LAT (SHALE) |
CK1, 2 (06) (AL4, 522) |
2003-2006 |
02 |
| 013 |
12382634 |
RIVET, R/SEAT HGE |
CK159, 2 (06) (AL4) |
2003-2006 |
06 |
| 014 |
88936521 |
БОЛТ, R/SEAT RSR FIN CVR (M4.2X1.41X13) (ROUND WASHER) |
CK1, 2 (06) |
2003-2006 |
03 |
| 015 |
88939098 |
COVER, R/SEAT LAT FIN (PEWTER) (WHEN REPL CVR W/SEMI-CIRCLE PROFILE QTY OF 3 FOR BENCH SEAT QTY OF 2 FOR BUCKET SEAT REQUIRED) |
CK1 (06) (AL4, Y91, Z75, 922) |
2003-2006 |
02 |
| 015 |
88939099 |
COVER, R/SEAT LAT FIN (NEUTRAL) (WHEN REPL CVR W/SEMI-CIRCLE PROFILE QTY OF 3 FOR BENCH SEAT QTY OF 2 FOR BUCKET SEAT REQUIRED) |
CK1 (06) (AL4, Z75, 152) |
2003-2006 |
02 |
| 015 |
88939174 |
COVER, R/SEAT LAT FIN (PEWTER) (LESS SEMI-CIRCLE PROFILE) (WHEN REPL CVR W/SEMI-CIRCLE PROFILE QTY OF 3 FOR BENCH SEAT QTY OF 2 FOR BUCKET SEAT REQUIRED) (REPL R/H L/H I/B O/B) |
CK1, 2 (06) (AL4, 922) (EXC Y91) |
2003-2006 |
02 |
| 016 |
11562386 |
БОЛТ, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT) |
|
2003-2006 |
06 |
| 017 |
12477379 |
LATCH, R/SEAT (CUSHION) |
CK1, 2 (06) (AL4) |
2003-2006 |
02 |
| 018 |
88936964 |
CAP, R/SEAT H/RST GDE (NEUTRAL) |
CK159, 259 (06) (AL4, 522) |
2003-2006 |
04 |
| 020 |
88936538 |
BUMPER, R/SEAT CUSH |
CK1, 2 (06) (AL4) |
2003-2006 |
04 |
| 021 |
88976872 |
BRACE, R/SEAT RSR RR CR (40%) |
CK159, 2 (06) (AL4) |
2003-2006 |
01 |
| 022 |
12479663 |
БОЛТ, R/SEAT RSR |
CK159, 2 (06) |
2003-2006 |
10 |
| 023 |
12479655 |
БОЛТ, R/SEAT LAT STKR (M6X1.0X44 SHLD) (T30 TORX) |
CK1, 2 (06) (AL4) |
2003-2006 |
02 |
| 024 |
12479648 |
BUSHING, R/SEAT BK CUSH LAT (STRIKER BOLT) |
CK1, 2 (06) (AL4) |
2003-2006 |
06 |
| 025 |
88934535 |
ГАЙКА, R/SEAT BK CUSH LAT STKR |
CK1, 2 (06) (AL4) |
2003-2006 |
04 |
| 026 |
88976872 |
BRACE, R/SEAT RSR RR CR (40%) |
CK159, 2 (06) (AL4) |
2003-2006 |
01 |
| 027 |
15181164 |
COVER, R/SEAT TRK FIN (NEUTRAL) (O/B RR) |
CK159, 2 (06) (AL4, AT5, 52I) |
2003-2006 |
01 |
| 027 |
15181165 |
COVER, R/SEAT TRK FIN (PEWTER) (40% O/B RR) |
CK159, 2 (06) (AL4, AT5, 92I) |
2003-2006 |
01 |
| 028 |
88976871 |
RISER, R/SEAT INR (E-Z ENTRY) (INCLS CAM E-Z ENTRY CABLE) |
CK159, 2 (06) (AL4) |
2003-2006 |
01 |
| 029 |
15181077 |
COVER, R/SEAT RSR FIN (NEUTRAL) |
CK159, 2 (06) (AL4, 52I) |
2003-2006 |
01 |
| 029 |
15181078 |
COVER, R/SEAT RSR FIN (PEWTER) |
CK159, 2 (06) (AL4, 92I) |
2003-2006 |
01 |
| 030 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) |
|
2003-2006 |
08 |
| 031 |
88941299 |
COVER, R/SEAT RSR FIN (PEWTER) (I/B) |
CK159, 2 (06) (AL4, 922) |
2003-2006 |
01 |
| 031 |
88941300 |
COVER, R/SEAT RSR FIN (PEWTER) (I/B) |
CK159, 2 (06) (AL4, 522) |
2003-2006 |
01 |
| 032 |
88977011 |
CABLE, R/SEAT BK CUSH LAT (EZ ENTRY BY-PASS) |
CK159, 2 (06) (AL4) |
2003-2006 |
01 |
| 033 |
15181139 |
COVER, R/SEAT HGE STUD FIN (NEUTRAL) (I/B) |
CK159, 2 (06) (AL4, 52I) |
2003-2006 |
02 |
| 033 |
15181140 |
COVER, R/SEAT HGE STUD FIN (PEWTER) (I/B) |
CK159, 2 (06) (AL4, 92I) |
2003-2006 |
02 |
| 034 |
12479655 |
БОЛТ, R/SEAT LAT STKR (M6X1.0X44 SHLD) (T30 TORX) |
CK1, 2 (06) (AL4) |
2003-2006 |
02 |
| 035 |
12477365 |
BUSHING, R/SEAT HGE BRKT |
CK1, 2, 3 |
2003-2006 |
08 |
| 036 |
88976869 |
RISER, R/SEAT OTR |
CK159, 2 (06) (AL4, AT5) |
2003-2006 |
01 |
| 037 |
88941297 |
COVER, R/SEAT RSR FIN (PEWTER) (O/B) |
CK159, 2 (06) (AL4, 922) |
2003-2006 |
01 |
| 037 |
88941298 |
COVER, R/SEAT RSR FIN (NEUTRAL) (O/B) |
CK159, 2 (06) (AL4, 522) |
2003-2006 |
01 |
| 038 |
88936521 |
БОЛТ, R/SEAT RSR FIN CVR (M4.2X1.41X13) (ROUND WASHER) |
CK1, 2 (06) |
2003-2006 |
03 |
| 039 |
12479652 |
COVER, R/SEAT HGE FIN (BLACK) (STRAIGHT LEG) |
CK1, 2 (06) (AL4) |
2003-2006 |
02 |
| 040 |
88934535 |
ГАЙКА, R/SEAT BK CUSH LAT STKR |
CK1, 2 (06) (AL4) |
2003-2006 |
04 |
| 041 |
12477386 |
BRACKET, R/SEAT HGE (LH OR RH) (BLACK) (STRAIGHT LEG) |
CK1, 2 (06) (AL4) (EXC Y91) |
2003-2006 |
02 |
| 042 |
88941590 |
PAD, R/SEAT CUSH |
CK1, 2 (06) (AL4) (EXC ULT) |
2003-2006 |
01 |
| 043 |
88976345 |
COVER, R/SEAT CUSH (PEWTER) |
CK1 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
01 |
| 043 |
88976346 |
COVER, R/SEAT CUSH (SHALE) |
CK1 (06) (AL4, AN3, Y91, Z75, 152) (EXC ULT) |
2004-2006 |
01 |
| 043 |
89040866 |
COVER, R/SEAT CUSH (PEWTER) |
CK1, 2 (06) (AL4, 922) (EXC Y91) |
2004-2006 |
01 |
| 043 |
89040867 |
COVER, R/SEAT CUSH (SHALE) |
CK1, 2 (06) (AL4, 522) (EXC Y91) |
2004-2006 |
01 |
| 044 |
89040860 |
COVER, R/SEAT BK CUSH (PEWTER) |
CK159, 2 (06) (AL4, 922) (EXC Y91) |
2004-2006 |
01 |
| 044 |
89040861 |
COVER, R/SEAT BK CUSH (SHALE) |
CK159, 2 (06) (AL4, 522) (EXC Y91) |
2003-2006 |
01 |
| 046 |
88941769 |
COVER, R/SEAT H/RST (PEWTER) |
CK1, 2 (06) (AL4, 922) (EXC Y91) |
2003-2006 |
02 |
| 046 |
88941770 |
COVER, R/SEAT H/RST (SHALE) |
CK1, 2 (06) (AL4, 522) (EXC Y91) |
2003-2006 |
02 |
| 046 |
88976634 |
COVER, R/SEAT H/RST (PEWTER) |
CK1 (06) (AL4, AN3, Y91, Z75, 922) |
2003-2006 |
02 |
| 046 |
88976635 |
COVER, R/SEAT H/RST (SHALE) |
CK1 (06) (AL4, Z75, 152) |
2003-2006 |
02 |
| 047 |
88941026 |
FRAME, R/SEAT BK CUSH (USE W/TRIM CODES ENDING IN 2) |
CK159, 2 (06) (AL4) |
2003-2006 |
01 |
| 048 |
88978440 |
БОЛТ, R/SEAT BK CUSH FRM (M10X1.5X31) (HFH W/BUSHING ASM) |
CK1, 2 (06) |
2003-2006 |
02 |
| 049 |
88978725 |
RECLINER, R/SEAT OTR |
CK159, 2 (06) (AL4) |
2003-2006 |
01 |
| 050 |
88976458 |
HEATER, R/SEAT CUSH |
CK1 (06-36) |
2003-2006 |
02 |
| 051 |
12473322 |
БОЛТ, R/SEAT RECL HDL (M4.8X1.59X20) |
CK1, 2 |
2003-2006 |
01 |
| 052 |
88941656 |
HANDLE, R/SEAT RECL (PEWTER)
| CK159, 2 (06) (AL4, 922) |
2003-2006 |
01 |
|
| 052 |
88941657 |
HANDLE, R/SEAT RECL (PEWTER)
| CK159, 2 (06) (AL4, 922) |
2003-2006 |
01 |
|
| 052 |
88941658 |
HANDLE, R/SEAT RECL (NEUTRAL) |
CK159, 2 (06) (AL4, 522) |
2003-2006 |
01 |
| 052 |
88941659 |
HANDLE, R/SEAT RECL (NEUTRAL) |
CK159, 2 (06) (AL4, 522) |
2003-2006 |
01 |
