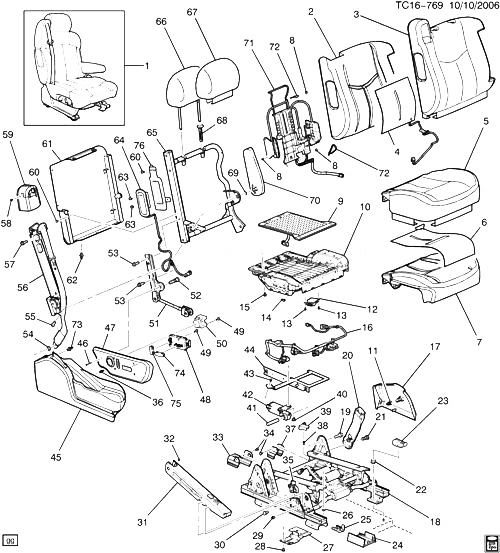

(TC16-769) - 2004-2006 CK(06-36) ПАССАЖИРСКОЕ СИДЕНЬЕ/BUCKET (AN3, EXC PLATINUM EDITION ULT) CADILLAC - ESCALADE ESV (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89045693 SEAT, PASS (W/BELT) (PEWTER) CK1, 2 (06) (AG2, AJ7, AL0, AN3, 922) (EXC AX4, Y91) 2003-2005 01
001 89045694 SEAT, PASS (W/BELT) (SHALE) CK1, 2 (06) (AG2, AJ7, AL0, AN3, 522) (EXC AX4, Y91) 2003-2005 01
001 89045699 SEAT, PASS (W/BELT) (PEWTER) CK1 (06-36) (AG2, AJ7, AL0, AN3, Y91, Z75, 922) 2003-2005 01
001 89045864 SEAT, PASS (W/BELT) (PEWTER) CK1, 2 (06) (AG2, AL0, AN3, 922) (EXC AJ7, AX4, Y91) 2003-2005 01
002 88941597 PAD, P/SEAT BK CUSH (USED W/TRIM CODES ENDING IN 2) CK1, 2 (06) (AN3) (EXC AJ7) 2003-2006 01
002 88941603 PAD, P/SEAT BK CUSH (USED W/TRIM CODES ENDING IN 2) CK1, 2 (AJ7, AN3) (EXC ULT) 2004-2006 01
003 19127413 COVER, P/SEAT BK CUSH (PEWTER) CK1, 2 (06) (AL0, AN3, 922) (EXC AJ7, Y91) 2003-2006 01
003 88976139 COVER, P/SEAT BK CUSH (PEWTER) CK1 (06-36) (AJ7, AL0, AN3, Y91, Z75, 922) 2003-2006 01
003 88976140 COVER, P/SEAT BK CUSH (SHALE) CK1 (06-36) (AJ7, AL0, AN3, Y91, Z75, 152) (EXC ULT) 2004-2006 01
003 89043855 COVER, P/SEAT BK CUSH (PEWTER) CK1, 2 (06) (AJ7, AL0, AN3, 922) (EXC Y91) 2003-2006 01
003 89043856 COVER, P/SEAT BK CUSH (SHALE) CK1, 2 (06) (AJ7, AL0, AN3, 522) (EXC Y91) 2003-2006 01
003 89043858 COVER, P/SEAT BK CUSH (SHALE) CK1, 2 (06) (AL0, AN3, 522) (EXC AJ7, Y91) 2003-2006 01
004 88940310 HEATER, P/SEAT BK CUSH (PEEL STICK) CK1, 2, 3 (AN3) 2003-2006 01
005 19127433 COVER, P/SEAT CUSH (PEWTER) CK1, 2 (06) (AG2, AL0, AN3, 922) (EXC Y91) 2003-2006 01
005 88976145 COVER, P/SEAT CUSH (PEWTER) (16.720) CK1 (06-36) (AG2, AJ7, AL0, AN3, Y91, Z75, 922) 2003-2006 01
005 88976146 COVER, P/SEAT CUSH (SHALE) (16.720) CK1 (06-36) (AG2, AJ7, AL0, AN3, Y91, Z75, 152) (EXC ULT) 2004-2006 01
005 89043668 COVER, P/SEAT CUSH (SHALE) CK1, 2 (06-36) (AG2, AL0, AN3, 522) (EXC AX4, Y91) 2005-2006 01
006 88940309 HEATER, P/SEAT CUSH (PEEL STICK) CK1, 2, 3 (AN3) 2003-2006 01
007 PAD, P/SEAT CUSH (PART OF 9) 2004-2006
008 12473564 RIVET, F/SEAT (CUPHOLDER) (16.674) CK1, 2, 3 (AE7, AN3) 2003-2006 04
009 89040115 MODULE KIT, INFL RST P/SEAT SUPPRESSION (INCLS 7, 12) (INCLS PAD SENSOR) CK1, 2 (AN3, AL0) (EXC ULT) 2005-2005 01
010 88943306 FRAME, P/SEAT CUSH CK1, 2, 3 (AN3) (EXC ULT) 2004-2006 01
011 RETAINER, P/SEAT INR ADJR RR FIN CVR (PART OF 17) 2004-2006
012 MODULE, INFL RST FRT PASS PRESENCE (PART OF 9) 2004-2006
013 12476324 БОЛТ, P/SEAT INFL RST SUPPRESSION MDL (M4X0.7X12) (HEX HD) (16.679) CK1, 2 2003-2006 02
014 88976737 RETAINER, P/SEAT SI INFL RST MDL (CLIP FASTENER FOR PODS SENSOR) CK1, 2 2003-2005 01
015 12473290 RETAINER, P/SEAT CUSH (NATURAL) CK1, 2, 3 (AE7, AN3, A95) 2003-2005 02
016 88978924 HARNESS, P/SEAT ADJR WRG CK1, 2, 3 (AL0, AN3) 2003-2005 01
017 88941703 COVER, P/SEAT INR ADJR RR FIN (INCLS 11) (PEWTER) CK1, 2, 3 (92I) 2003-2006 01
017 88941705 COVER, P/SEAT INR ADJR RR FIN (INCLS 11) (NEUTRAL) CK1, 2 (06) (Y91, 522) 2003-2006 01
017 88941705 COVER, P/SEAT INR ADJR RR FIN (INCLS 11) (NEUTRAL) CK1, 2, 3 (52D) 2003-2006 01
017 88941707 COVER, P/SEAT INR ADJR RR FIN (INCLS 11) (SHALE) CK1 (06-36) (AN3, Y91, Z75, 152) 2003-2006 01
017 88941707 COVER, P/SEAT INR ADJR RR FIN (INCLS 11) (SHALE) CK1, 2 (06) (522) (EXC Y91) 2003-2006 01
018 88940334 ADJUSTER, P/SEAT (INCLS 35) CK1, 2 (06) (AG2, AL0, AN3) 2003-2006 01
018 88940334 ADJUSTER, P/SEAT (INCLS 35) CK1, 2 (06) (AG2, AL0, AN3) (EXC ULT) 2005-2006 01
019 12476887 БОЛТ, F/SEAT BK CUSH PIV (M10X1.5) (W/BUSHING) (16.679) CK1, 2, 3 2003-2005 01
020 88957873 BELT KIT, P/SEAT (BKL SI) (SHALE) (MFD BY TAKATA W/PRESS ON RED RELEASE BUTTON) CK1 (06-36) (AN3, Y91, Z75, 152) 2003-2006 01
020 88957874 BELT KIT, P/SEAT (BKL SI) (NEUTRAL) (MFD BY TAKATA W/PRESS ON RED RELEASE BUTTON) CK1, 2 (06-36) (AN3, 52I) 2003-2006 01
020 88957876 BELT KIT, P/SEAT (BKL SI) (PEWTER) (MFD BY TAKATA W/PRESS ON RED RELEASE BUTTON) CK1, 2 (06-36) (AN3, AL0, 92I) 2003-2006 01
021 88981775 БОЛТ, P/SEAT BELT (BKL SI) (M12X1.75X35) (PAN HD) CK1, 2, 3 2003-2006 01
022 15035434 ГАЙКА, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679) CK1, 2, 3 (AE7, AN3, A95) 2003-2006 04
023 15763294 COVER, F/SEAT ADJR FIN (BLACK) (PASSENGER SIDE) (I/B TRACK) (FRT) CK1, 2 (06-36) 2003-2005 01
024 12473318 COVER, P/SEAT OTR ADJR FRT FIN (BLACK) CK1, 2, 3 2003-2006 01
025 12478516 COVER, P/SEAT OTR ADJR LWR FIN (BLACK) CK1, 2, 3 2003-2006 01
026 11517031 ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (P/SEAT BK CUSH FRM) 2003-2006 02
027 88940342 BRACKET, P/SEAT ADJR WRG HARN CK1, 2, 3 2003-2006 01
028 88936767 БОЛТ, P/SEAT ADJR (M6X1X10) CK1, 2, 3 2003-2005 02
029 88936767 БОЛТ, P/SEAT RECL (M6X1X10) CK1, 2, 3 (AE7, AN3, A95) 2003-2005 02
030 88936522 БОЛТ, P/SEAT RECL (M10X1.5X12.56) (SHLDR) CK1, 2, 3 (AE7, AN3, A95) 2003-2005 02
031 88941831 BRACKET, P/SEAT OTR ADJR CK1, 2, 3 2003-2006 01
032 12476880 RETAINER, P/SEAT ADJR LAT ROD (10.0MM OD, 5.9MM LG) (PUSH-IN) CK1, 2, 3 2003-2006 01
033 88935562 COVER, P/SEAT OTR ADJR UPR RR FIN (BLACK) CK1, 2, 3 2003-2006 01
034 20538173 RETAINER, P/SEAT CUSH (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) CK1, 2, 3 (AE7, AN3, A95) 2003-2005 10
035 19180158 SENSOR KIT, INFL RST FRT PASS POSN (PART OF 18) CK1, 2 2003-2006 01
035 88982093 SENSOR KIT, INFL RST FRT PASS POSN (PART OF 18) (INCLS RIVETS) CK1, 2 2003-2006 01
036 CLIP, P/SEAT RSR FIN (PART OF 45) 2004-2006
037 12478524 COVER, P/SEAT INR ADJR UPR RR FIN (BLACK) CK1, 2, 3 2003-2006 01
038 15044189 БОЛТ, F/SEAT (M12X1.75X45) (16.679) CK1, 2, 3 2003-2005 04
038 15044189 БОЛТ, F/SEAT (M12X1.75X45) (16.679) CK1, 2, 3 2003-2005 04
039 15040030 COVER, F/SEAT ADJR FIN (PEWTER) (PASSENGER SIDE) (I/B TRACK) CK1, 2 (06-36) (92I) 2003-2005 01
039 15051617 COVER, F/SEAT ADJR FIN (NEUTRAL) (PASSENGER SIDE) (I/B TRACK) CK1, 2 (06-36) (52I) 2003-2005 01
039 15768516 COVER, F/SEAT ADJR FIN (SHALE) (PASSENGER SIDE) (I/B TRACK) CK1 (06-36) (15I) 2003-2005 01
040 12475950 BRACKET, P/SEAT RECL ACTR MOT (LOWER, MOUNTS TO MOTOR) CK1, 2, 3 (AG2, AN3) 2003-2005 01
041 12473994 CABLE, P/SEAT RECL ACTR (DRIVE) CK1, 2, 3 (AG2, AN3) 2003-2006 01
042 89026367 MOTOR KIT, F/SEAT RECL ACTR (DRVR PASS) (ACDelco #89026367) CK1, 2, 3 (AN3) 2003-2006 02
043 12476324 БОЛТ, P/SEAT (M4X0.7X12) (HEX HD) CK1, 2, 3 2003-2005 01
044 88940268 BRACKET, P/SEAT RECL ACTR MOT (UPPER, MOUNTS TO MOTOR) CK1, 2, 3 (AN3) (EXC ULT) 2004-2005 01
045 88941723 COVER, P/SEAT RSR FIN (INCLS 36, 73) (PEWTER) CK1, 2, 3 (AG2, AN3, 922) 2003-2006 01
045 88941724 COVER, P/SEAT RSR FIN (INCLS 36, 73) (NEUTRAL) CK1, 2 (06) (AG2, AN3, 522) 2003-2006 01
045 88941725 COVER, P/SEAT RSR FIN (INCLS 36, 73) (SHALE) CK1 (06-36) (AN3, Z75, 152) 2003-2006 01
046 88941745 БОЛТ, P/SEAT ADJR SW ADJR SW BZL (M3.5X1.3X45MM) (PAN HEAD PHILLIPS) CK1, 2, 3 (AN3) 2003-2006 05
047 88941681 BEZEL, P/SEAT ADJR SW (PEWTER) CK1, 2, 3 (AG2, AN3, 692) 2003-2006 01
047 88941683 BEZEL, P/SEAT ADJR SW (PEWTER) CK1, 2, 3 (AG2, AN3, 922) 2003-2006 01
047 88941685 BEZEL, P/SEAT ADJR SW (NEUTRAL) CK1, 2, 3 (AG2, AN3, 522) 2003-2006 01
047 88941687 BEZEL, P/SEAT ADJR SW (SHALE) CK157, 159 (06) (AG2, AN3, Y91, Z75, 152) 2003-2006 01
048 12450254 SWITCH, P/SEAT ADJR (INCLS 74, 75) (INCLS RECLINER SW.) (8-WAY) CK1, 2, 3 (AG2, AN3) 2003-2006 01
049 11609461 БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (P/SEAT ADJR SW) 2003-2006 05
050 12473558 SWITCH, P/SEAT LUMBAR CONT (INCLS KNOB) (4 WAY SWITCH) CK1, 2, 3 (AN3) 2003-2006 01
051 88940877 RECLINER, P/SEAT CK1, 2, 3 (AG2, AN3) 2003-2006 01
052 89045964 БОЛТ, P/SEAT BK CUSH LAT (M14X76) (W/BUSHING) CK1, 2, 3 2004-2006 01
053 12473319 БОЛТ, P/SEAT ADJR (M12X1.75X37) (HEX) (OUTER) CK1, 2, 3 2003-2005 02
054 11516078 ГАЙКА, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (P/SEAT BELT (RETR SI)) 2003-2006 01
055 12473319 БОЛТ, P/SEAT SHLDR BELT GDE BRKT (M12X1.75X37) (HEX) (OUTER) (16.682) CK1, 2, 3 2003-2005 02
056 89025856 BELT KIT, P/SEAT (RETR SI) (SHALE) CK1 (06-36) (AN3, AL0, Z75, 152) 2003-2006 01
056 89025857 BELT KIT, P/SEAT (RETR SI) (NEUTRAL) CK1, 2 (06-36) (AN3, AL0, 52I) 2003-2006 01
056 89025859 BELT KIT, P/SEAT (RETR SI) (PEWTER) CK1, 2 (06) (AN3, AL0, 92I) 2003-2006 01
057 12473319 БОЛТ, P/SEAT RECL (TO BACK FRAME) (M12X1.75X37) (HEX) (OUTER) CK1, 2, 3 2003-2005 02
058 12476324 БОЛТ, P/SEAT SHLDR BELT GDE (M4X0.7X12) (HEX HD) (16.679) CK1, 2, 3 2003-2006 02
059 12473304 COVER, P/SEAT SHLDR BELT OPG TR CK1, 2, 3 2003-2006 01
060 20538173 RETAINER, P/SEAT BK CUSH FIN PNL (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) CK1, 2, 3 2003-2006 AR
061 88941750 PANEL, P/SEAT BK CUSH FIN CK1, 2, 3 2003-2006 01
062 20538173 RETAINER, P/SEAT BK CUSH FIN PNL (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) CK1, 2, 3 2003-2006 AR
063 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (D/SEAT SI INFL RST MDL) 2003-2006 02
064 15831648 MODULE, P/SEAT SI INFL RST (PEWTER) (W/HARNESS) CK1, 2 (06-36) (92I) 2003-2006 01
064 15831649 MODULE, P/SEAT SI INFL RST (SHALE) (W/HARNESS) CK1, 2 (06) (AN3, AG2, AJ7, AL0, 522) (EXC AX4, Y91) 2003-2005 01
064 15831649 MODULE, P/SEAT SI INFL RST (SHALE) (W/HARNESS) CK1, 2 (06-36) (15I) 2003-2006 01
064 15831650 MODULE, P/SEAT SI INFL RST (NEUTRAL) (W/HARNESS) CK1, 2 (06-36) (52I) 2005-2006 01
065 88978380 FRAME, P/SEAT BK CUSH (W/ARMREST) CK1, 2 (06) (AL0, AN3) (EXC ULT) 2004-2006 01
066 88940263 PAD, P/SEAT H/RST (NON-PIVOTING) CK1, 2, 3 2003-2006 01
066 88977073 RESTRAINT, P/SEAT HD (INCLS 67) (PEWTER) CK1 (06-36) (AN3, Y91, Z75, 922) 2003-2006 01
066 88977074 RESTRAINT, P/SEAT HD (INCLS 67) (SHALE) CK1 (06-36) (AN3, Y91, Z75, 152) 2003-2006 01
067 COVER, P/SEAT H/RST (PART OF 66) C1 (06-36) (Y91) 2003-2005
067 88941769 COVER, P/SEAT H/RST (PEWTER) CK1, 2 (06) (AG2, AL0, AN3, 922) (EXC Y91) 2003-2006 01
067 88941769 COVER, P/SEAT H/RST (PEWTER) CK1, 2 (06) (AL0, AN3, 922) (EXC AJ7, Y91) 2005-2005 01
067 88941770 COVER, P/SEAT H/RST (SHALE) CK1, 2 (06) (AL0, AN3, 522) (EXC AX4, Y91) 2003-2006 01
068 12473301 SUPPORT, P/SEAT H/RST (PEWTER) (W/O BUTTON) CK1 (06-36) (AN3, Y91, Z75, 922) 2003-2005 02
068 12473301 SUPPORT, P/SEAT H/RST (PEWTER) (W/O BUTTON) CK1, 2 (06) (AN3, 922) 2003-2006 02
068 12478541 SUPPORT, P/SEAT H/RST (SHALE) (W/O BUTTON) CK1 (06-36) (15I) 2003-2006 02
068 12478541 SUPPORT, P/SEAT H/RST (SHALE) (W/O BUTTON) CK1, 2 (52I) 2003-2006 02
068 88935568 SUPPORT, P/SEAT H/RST (NEUTRAL) (W/O BUTTON) CK1, 2, 3 (52I) 2003-2006 02
068 88941190 SUPPORT, P/SEAT H/RST (PEWTER) (W/O BUTTON) CK1, 2, 3 (69I) 2003-2006 02
069 CLIP, P/SEAT A/RST 2005-2005
070 88940782 ARMREST, P/SEAT (PEWTER) CK1 (06-36) (AG2, AN3, Y91, Z75, 922) 2003-2006 01
070 88940784 ARMREST, P/SEAT (SHALE) CK1 (06-36) (AG2, AN3, Y91, Z75, 152) 2003-2006 01
070 88942003 ARMREST, P/SEAT (PEWTER) CK1, 2 (06) (AG2, AN3, 922) (EXC Y91) 2003-2006 01
070 88942006 ARMREST, P/SEAT (SHALE) CK1, 2 (06-36) (AG2, AL0, AN3, 522) (EXC Y91) 2003-2006 01
071 88978361 LUMBAR, P/SEAT BK (INCLS MOTORS) CK1, 2, 3 (AN3) (EXC ULT) 2004-2005 01
072 TIESTRAP, P/SEAT BK 2004-2006
073 CLIP, P/SEAT RSR FIN (PART OF 45) 2004-2006
074 19122217 KNOB, F/SEAT ADJR SW (PART OF 48) (EBONY) CK1, 2, 3 (AN3) 2003-2006 01
075 19122218 KNOB, F/SEAT RECL (PART OF 48) (EBONY) (PASSENGER) CK1, 2, 3 (AN3) 2003-2006 01
075 19122219 KNOB, F/SEAT RECL (PART OF 48) (EBONY) (DRIVER) CK1, 2, 3 (AN3) 2003-2006 01
076 12478523 RETAINER, P/SEAT SI INFL RST MDL CK1, 2 (06) 2003-2006 01
076 88976737 RETAINER, P/SEAT SI INFL RST MDL (CLIP FASTENER FOR PODS SENSOR) CK1, 2 2003-2006 01
