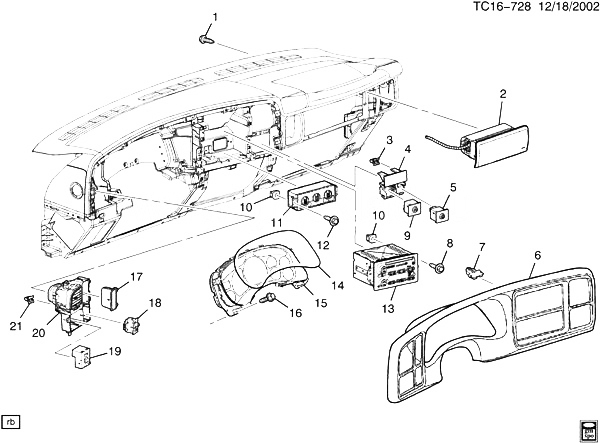

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11515704 |
БОЛТ, HEX, W/CON WA, M6X1X16, 13THD, 17 O.D., MACH, 9.8, 7111M (I/P INFL RST MDL)
|
2003-2006 |
04 |
|
| 002 |
10399600 |
MODULE, I/P INFL RST (CODE 9600, 0398) (PEWTER) |
CK1, 2 (06) (Y91, 92I) (EXC WSD) |
2005-2006 |
01 |
| 002 |
10399603 |
MODULE, I/P INFL RST (SHALE) |
CK1, 2 (06) (Y91, 15I) (EXC ULT, WSD) |
2005-2006 |
01 |
| 003 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 4)
|
2003-2006 |
04 |
|
| 004 |
15207877 |
ШЛАНГИ, ACSRY SW (INCLS 3) (EBONY) (2-SWITCH ШЛАНГИ) |
CK1, 2, 3 |
2003-2005 |
01 |
| 005 |
15776716 |
SWITCH, ELEK TRACT CONT (W/ELEK SUSP CONT) (MTG ON RH SI OF I/P CSTR) |
CK1 (06-36) (JL4) |
2005-2006 |
01 |
| 005 |
15776716 |
SWITCH, ELEK TRACT CONT (W/ELEK SUSP CONT) (MTG ON RH SI OF I/P CSTR) (4.710) |
CK1 (06-36) (JL4) |
2005-2006 |
01 |
| 005 |
15830572 |
SWITCH, ELEK TRACT CONT (W/ELEK SUSP CONT) (MTD ON RH SI OF I/P CSTR) (LABELED 15830572) |
C1, 2 (06) (NW7) |
2005-2005 |
01 |
| 005 |
15830572 |
SWITCH, ELEK TRACT CONT (W/ELEK SUSP CONT) (MTD ON RH SI OF I/P CSTR) (LABELED 15830572) (4.710) |
C1, 2 (06) (NW7) |
2005-2005 |
01 |
| 006 |
15804968 |
BEZEL, I/P CSTR TR PLT (INCLS 7) (NEUTRAL) |
CK1 (06-36) (Y91, Z75, 15I) (EXC ULT, WSD) |
2005-2006 |
01 |
| 006 |
15804969 |
BEZEL, I/P CSTR TR PLT (INCLS 7) (PEWTER) |
CK1 (06-36) (Y91, Z75, 92I) (EXC WSD) |
2005-2006 |
01 |
| 007 |
15042047 |
CLIP, I/P CSTR TR PLT BZL (PART OF 6) (STEEL) |
CK1, 2, 3 |
2003-2006 |
11 |
| 008 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665)
|
2003-2006 |
03 |
|
| 009 |
15830573 |
SWITCH, RR OBJECT ALARM MDL |
CK1 (06-36) (UD7, Y91, Z75) |
2003-2006 |
01 |
| 010 |
17988488 |
ГАЙКА, I/P CARR (SILVER) (4.2 X 1.41) (PUSH-IN FOR 12MM SQ HOLE) (10.252) |
CK1, 2, 3 |
2003-2006 |
AR |
| 011 |
15832315 |
CONTROL, HTR A/C (W/R/WDO DEFG SW) (СМ. ГРУППУ 09.000 A/C HEATER CONTROL ASM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (ACDelco #15-73502) |
CK1, 2, 3 (CJ3, C49) |
2005-2006 |
01 |
| 011 |
15855848 |
CONTROL, HTR A/C (W/R/WDO DEFG SW) (СМ. ГРУППУ 09.000 A/C HEATER CONTROL ASM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (ACDelco #15-73561)
| CK1, 2, 3 (CJ2, C49) (EXC HP2) |
2005-2006 |
01 |
|
| 012 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (HTR A/C CONT) (9.665)
|
2003-2006 |
02 |
|
| 013 |
|
RADIO, AM/FM STEREO CLK CD PLYR (СМ. ГРУППУ 09.000 АУДИОСИСТЕМА/FRONT ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2003-2006 |
|
| 013 |
|
RADIO, AM/FM STEREO CLK (СМ. ГРУППУ 09.000 АУДИОСИСТЕМА/FRONT ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2003-2006 |
|
| 013 |
|
RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (СМ. ГРУППУ 09.000 АУДИОСИСТЕМА/FRONT ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2003-2006 |
|
| 014 |
|
LENS, INST CSTR (PART OF 15) |
|
2003-2006 |
|
| 015 |
|
CLUSTER, INST (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) (INCLS 14) |
|
2003-2006 |
|
| 016 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (INST CSTR) (9.665)
|
2003-2006 |
04 |
|
| 017 |
15732033 |
COMPARTMENT, I/P CSTR (EBONY) (USED ON LH SI OF I/P CSTR) |
CK1, 2, 3 |
2003-2006 |
01 |
| 018 |
15143158 |
SWITCH, R/WDO WPR WA FRT FOG LP (MTG ON LH SI OF I/P CSTR) (ACDelco #D6378D)
| CK1, 2 (06) (C25, T96) (EXC J81) |
2003-2006 |
01 |
|
| 018 |
15143158 |
SWITCH, R/WDO WPR WA FRT FOG LP (MTG ON LH SI OF I/P CSTR) (ACDelco #D6378D)
| CK1, 2 (06) (C25, T9H) (EXC J81, T96) |
2003-2006 |
01 |
|
| 019 |
15194803 |
SWITCH, HDLP I/P LP DIMR DM LP (W/O LED INDICATORS, SERVICE REPLACEMENT FOR VEHICLES W/LED INDICATOR) (ACDelco #D1595G)
| CK1, 2, 3 |
2003-2006 |
01 |
|
| 020 |
15207881 |
ШЛАНГИ, I/P OTR AIR OTLT DFL (DRIVER SIDE) (INCLS 21) (W/DEFLECTOR) |
CK1, 2, 3 (CJ2, CJ3) (EXC ULT, WSD) |
2005-2006 |
01 |
| 021 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 20)
|
2003-2006 |
04 |
|
