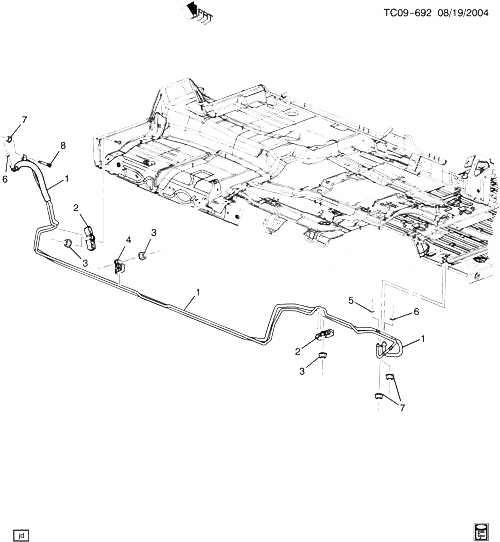

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89023363 |
HOSE, AUX A/C EVPR (INLET) (INCLS 2, 4-6, 8) (CODE 3363) (ACDelco #15-32632) |
CK159, 2 (06) (C69) (EXC C36) |
2005-2005 |
01 |
| 002 |
15102169 |
CLIP, AUX A/C EVPR HOSE (PART OF 1) (SLOT IN MIDDLE WITH DIAMETERS OF 19.05, 9.52, AND 2 AT 12.7MM) |
CK1, 2 (06) |
2005-2006 |
03 |
| 003 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AUX A/C EVPR CMPR HOSE CLIP)
|
2005-2006 |
04 |
|
| 004 |
15102168 |
CLIP, AUX A/C EVPR HOSE (PART OF 1) (2X2 PLASTIC) (SLOT ON SIDE WITH DIAMETERS OF 19.05, 9.52, AND 2 AT 12.7MM) |
CK1, 2 (06) |
2005-2006 |
04 |
| 005 |
52474880 |
SEAL, A/C EVPR TUBE (OPENING CVR) (PART OF 1) (9.211) |
CK1, 2, 3 |
2005-2006 |
01 |
| 006 |
02724966 |
SEAL, A/C CMPR CNDSR HOSE (25MM OD X 17MM ID) (PART OF 1) (FOR NON-CANADIAN ORDERS) (ACDelco #15-31101) |
CK1, 2, 3 |
2005-2006 |
AR |
| 007 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (AUX A/C EVPR TUBE) (8.915) (ACDelco #11514596) |
|
2005-2006 |
04 |
| 008 |
11561065 |
STUD, A/C CMPR CNDSR HOSE (PART OF 1) (STRAIGHT M8X1.25X13.5, M8X1.25X27) |
CK1, 2 (06) (C69) (EXC C36) |
2005-2006 |
01 |
