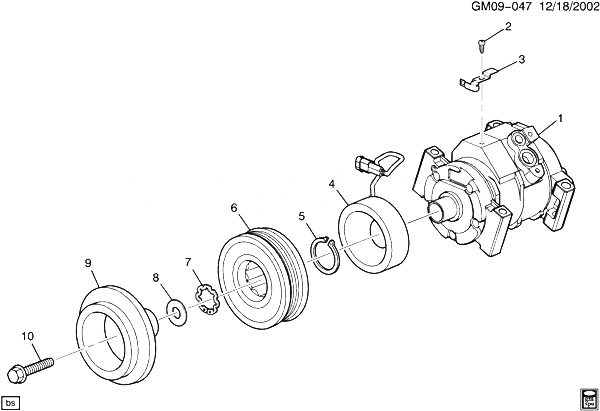

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89024881 |
КОМПРЕССОР, A/C (INCLS 2-10) (ACDelco #89024881) |
CK1, 2, 3 (LLY, LU3, CJ2, CJ3) (EXC YF2) |
2005-2006 |
01 |
| 002 |
|
БОЛТ, A/C CMPR BR (PART OF 1) (*KIT1) |
|
2005-2007 |
|
| 003 |
|
BRACKET, A/C CMPR (PART OF 1) (*KIT1) |
|
2005-2007 |
|
| 004 |
|
COIL, A/C CLU (PART OF 1) (*KIT1) |
|
2005-2007 |
|
| 005 |
|
RING, A/C CLU COIL RET (PART OF 1) (*KIT1) |
|
2005-2007 |
|
| 006 |
|
BEARING, A/C CMPR PUL (PART OF 1) (*KIT1) |
|
2005-2007 |
|
| 007 |
|
RING, A/C CMPR PUL BRG RET (PART OF 1) (*KIT1) |
|
2005-2007 |
|
| 008 |
|
WASHER, A/C CMPR PUL (PART OF 1) (*KIT1) |
|
2005-2007 |
|
| 009 |
|
CLUTCH, A/C (PART OF 1) (*KIT1) |
|
2005-2007 |
|
| 010 |
|
БОЛТ, A/C CMPR PUL (PART OF 1) (*KIT1) |
|
2005-2007 |
|
| K01 |
88891576 |
CLUTCH KIT, A/C (6 SPLINED, DENSO) (INCLS 2-10) (HIGH MOUNT) (INCLS BOLTS, SCREWS, SNAP RING, WASHERS, BRACKET, PULLEY) (ACDelco #15-4720) |
CK1 (LU3, CJ2, CJ3) (EXC YF2) |
2003-2006 |
01 |
