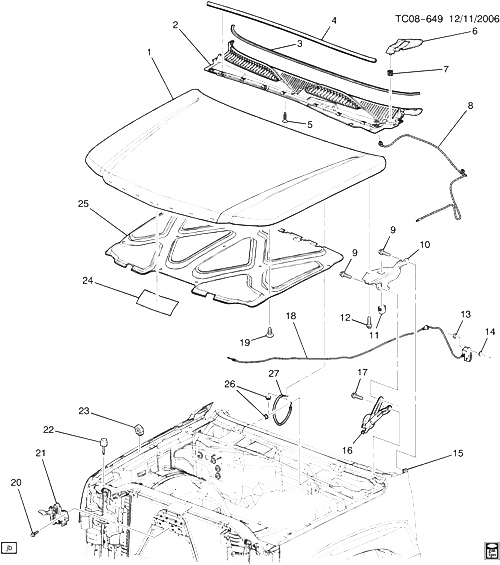

(TC08-649) - 2004-2006 CK1 КАПОТ (CADILLAC Z75) CADILLAC - ESCALADE ESV (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
002 15829661 PANEL, AIR INL GRL (CENTER) (INCLS 3-5, 8) CK1, 2, 3 2003-2006 01
003 15706253 SEAL, КАПОТ RR CTR (PART OF 2) CK1, 2, 3 2003-2006 01
004 15068269 SEAL, КАПОТ FRT (PART OF 2) CK1, 2, 3 2003-2006 01
005 15048061 RETAINER, AIR INL GRL PNL (PART OF 2) (PUSH IN) CK1, 2, 3 2003-2006 01
006 15287177 PANEL, AIR INL GRL (END CAP) (INCLS 7) (INCLS FLAPPER SEAL) CK1, 2, 3 2003-2006 01
006 15287178 PANEL, AIR INL GRL (END CAP) (INCLS 7) (INCLS FLAPPER SEAL) CK1, 2, 3 (EXC U84) 2003-2006 01
006 15287179 PANEL, AIR INL GRL (END CAP) (INCLS 7) CK1 (U84) 2003-2006 01
007 15965094 CLIP, AIR INL GRL PNL (PART OF 6) (SILVER) (11 X 13) (16.041) CK1, 2, 3 2003-2006 06
008 12463086 HOSE, WSWA NOZ (PART OF 2) (INCLS TEE) (INCLS CLIP) CK1, 2, 3 2003-2006 01
009 15054178 БОЛТ, HFH, W/SHOULDER, M8X1.25X23, 18 O.D., 9.8, GM6280M (HOOD HGE) 2003-2006 02
010 12472769 HINGE, HOOD CK1, 2, 3 2003-2006 01
010 12472770 HINGE, HOOD CK1, 2, 3 2003-2006 01
011 15033232 BUMPER, КАПОТ RR CK1, 2, 3 2003-2006 AR
012 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (HOOD HGE) (ACDelco #11570082) 2003-2006 02
013 11516780 ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (HOOD PRIM LAT REL CBL) (8.917) 2003-2006 01
014 11500324 WASHER, M10X 2.5 THK PHOS (HOOD PRIM LAT REL CBL BRKT) (ACDelco #11500324) 2003-2006 01
015 11516780 ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (HOOD HGE) (8.917) 2003-2006 02
016 15035591 ПРУЖИНА, КАПОТ OPEN ASST CK1, 2, 3 2003-2006 01
016 15035592 ПРУЖИНА, КАПОТ OPEN ASST CK1, 2, 3 2003-2006 01
017 15054178 БОЛТ, HFH, W/SHOULDER, M8X1.25X23, 18 O.D., 9.8, GM6280M (HOOD OPEN ASST SPR) 2003-2006 02
018 15142953 CABLE, КАПОТ PRIM LAT REL (W/HANDLE) CK1, 2, 3 2003-2006 01
019 22718305 RETAINER, 25 DIA HEAD, 23 OVERALL LENGTH, FITS 7MM DIA HOLE, NYLON 6/6 (HOOD INSL) 2003-2006 09
020 11589039 БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (HOOD PRIM LAT) 2003-2006 03
021 15756432 LATCH, КАПОТ PRIM CK157, 2 (06) 2004-2006 01
021 15756432 LATCH, КАПОТ PRIM CK159 (06) (EXC P96) 2004-2006 01
022 11588868 SCREW, BUTTON HEAD, M6X1X46, 34 THD, 17 O.D., 9.8, GM6173M, BLACK (HOOD ADJ FRT) 2003-2006 02
023 15073544 BUMPER, КАПОТ SI CK1 (Z75) 2003-2006 02
024 15097890 REINFORCEMENT, КАПОТ (PART OF 1) CK1, 2, 3 (Z75) 2003-2006 01
025 15195194 INSULATOR, HOOD CK1 (06-36) (LM7, LQ9, Z75) 2003-2005 01
026 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY STATIC GND STRP) 2003-2006 02
027 15179982 STRAP, BODY STATIC GND CK1 2004-2006 01
