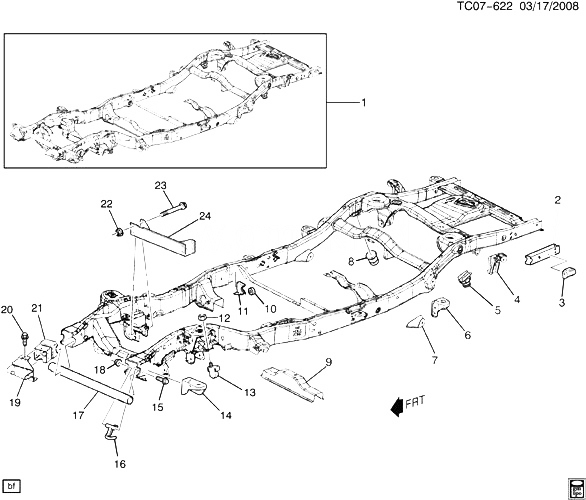

(TC07-622) - 2002-2006 C1(06-36) FRAME CADILLAC - ESCALADE ESV (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 21997060 FRAME, CHASSIS (INCLS 2-24) C159 (06) (ZQ1, ZW7, Z55) (EXC P96) 2005-2006 01
002 88938443 EXTENSION, S/RL (REAR) C159 (06) 2005-2006 01
002 88938444 EXTENSION, S/RL (REAR) C159 (06) 2005-2006 01
003 12477928 MOUNT, BODY RR C157, 159 (06) 2002-2006 02
004 15029077 BRACKET, RR S/ABS UPR C157, 159 (06) 2002-2006 01
004 15035504 BRACKET, RR S/ABS UPR C157, 159 (06) 2002-2006 01
005 BUMPER, R/AXL 2002-2006
006 BRACKET #3 CAB MOUNT 2002-2006
007 BRACKET-LCA 2002-2006
008 15039397 BUMPER, RR SUSP JOUNCE C1 (06) (ZQ1, Z55, Z71) (EXC BPH) 2004-2006 02
008 15039397 BUMPER, RR SUSP JOUNCE C157, 159 (06) 2004-2006 02
008 15200997 BUMPER, RR SUSP JOUNCE C1 (06) (Z56) 2005-2006 02
009 15040426 CROSSMEMBER, TRANS SUPT C159 (06) 2002-2006 01
010 15001006 INSULATOR, TORS BAR SUPT (PART OF 11) C1, 2, 3 2003-2006 AR
011 15003006 SUPPORT, TORS BAR (PART OF FRAME) (INCLS 10) CK157, 159 (06) 2002-2006 02
012 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (PART OF 13) (2.383) 2002-2006 02
013 12474008 BUMPER KIT, FRT LWR CONT ARM (INCLS 12) (W/NUT) C1 2002-2006 02
014 12477747 BRACKET, RAD SI MT C1 (06-36) 2004-2006 01
014 12477748 BRACKET, RAD SI MT C1 (06-36) 2004-2006 01
015 11517236 BOLT ASSEMBLY - METRIC HX HD AND CONICAL ПРУЖИНА WASHER, M12X1.75X135 - 18MM SOCKET (FRT TOW HOOK) 2002-2006 02
016 15709128 HOOK, FRT TOW C1 2002-2006 01
016 15709129 HOOK, FRT TOW C1 2002-2006 01
017 15201007 CROSSMEMBER, FRT C1 (06) 2002-2005 01
018 11514598 ГАЙКА, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, (FRT TOW HOOK) 2002-2006 02
019 12474012 BRACKET KIT, FRT BPR IMP BAR (INCLS 20) C1 (06) 2003-2005 01
019 12474012 BRACKET KIT, FRT BPR IMP BAR (INCLS 20) C1 (06) (WBH) 2003-2005 01
019 12474012 BRACKET KIT, FRT BPR IMP BAR (INCLS 20) C159 (06) (P96) (EXPORT) 2005-2005 01
019 12474013 BRACKET KIT, FRT BPR IMP BAR (INCLS 20) C1 (06) 2003-2005 01
019 12474013 BRACKET KIT, FRT BPR IMP BAR (INCLS 20) C1 (06) (WBH) 2003-2005 01
019 12474013 BRACKET KIT, FRT BPR IMP BAR (INCLS 20) C159 (06) (P96) (EXPORT) 2005-2005 01
020 11515764 БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (PART OF 19) 2002-2006 03
021 12475401 CAP KIT, FRT FRM EXTN C1 (06-36) 2004-2006 01
021 12475402 CAP KIT, FRT FRM EXTN C1 (06-36) 2004-2006 01
022 11514598 ГАЙКА, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, (FRT C/MBR) 2002-2006 04
023 11516940 БОЛТ, HFH M12X1.75X160 10.9 26.6-OD 7114M P-PT (FRT C/MBR) 2002-2006 04
024 15050470 CROSSMEMBER, FRT SUSP C1 (06-36) 2005-2006 01
