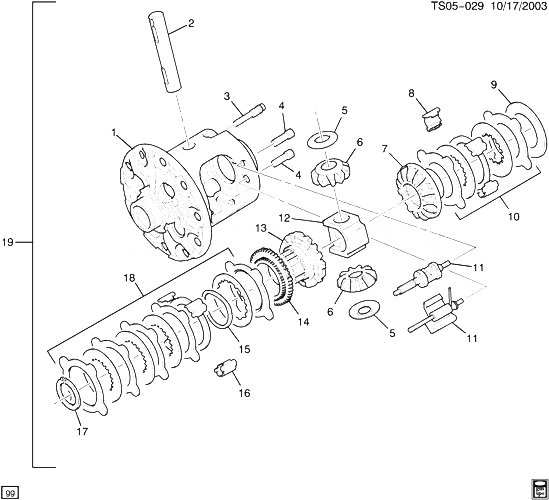

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CASE, DIFF |
|
2004-2005 |
|
| 001 |
|
CASE, DIFF |
|
2005-2005 |
|
| 002 |
14039025 |
SHAFT, DIFF P/GR (144.78MM) |
CK2 (06) (LQ4, G80, JH6) |
2004-2006 |
01 |
| 002 |
93441563 |
SHAFT, DIFF P/GR (5.535) |
C157, 159 (06) (LM7, GT4, JH2, P96) (EXPORT) |
2005-2005 |
01 |
| 003 |
12337979 |
БОЛТ, DIFF P/GR SHF LK (R/AXL) (M10X1.5X59) (CONTAINS 10 LOCK SCREWS) |
CK2 (06) (LQ4, JH6) |
2004-2006 |
01 |
| 004 |
14048409 |
BUSHING, LKG DIFF LOCKOUT (EATON EDS-98648)
| CK1, 2, 3 (G80) |
2004-2007 |
02 |
|
| 005 |
14039026 |
WASHER, DIFF P/GR THR (DOME STYLE) |
CK2 (06) (LQ4, G80, JH6) |
2004-2006 |
01 |
| 006 |
|
GEAR, DIFF PINION (*KIT1) |
|
2004-2005 |
|
| 006 |
|
GEAR, DIFF PINION (*KIT1) |
|
2005-2005 |
|
| 007 |
|
GEAR, LKG DIFF SI (RH) (*KIT1) |
|
2004-2005 |
|
| 007 |
|
GEAR, LKG DIFF SI (RH) (*KIT1) |
|
2005-2005 |
|
| 008 |
00462787 |
GUIDE, LKG DIFF CLU DISC (BELL SIDE) (PART OF 10) (WIDTH .71 INCH) |
CK2 (G80) |
2004-2006 |
04 |
| 009 |
15599626 |
SHIM, DIFF SI GR (.010 THK) |
CK2 (06) (G80) |
2004-2006 |
01 |
| 009 |
15599627 |
SHIM, DIFF SI GR (.015 THK) |
CK2 (06) (G80) |
2004-2006 |
01 |
| 009 |
15599628 |
SHIM, DIFF SI GR (.020 THK) |
CK2 (06) (G80) |
2004-2006 |
01 |
| 009 |
15599629 |
SHIM, DIFF SI GR (.025 THK) |
CK2 (06) (G80) |
2004-2006 |
01 |
| 009 |
15599630 |
SHIM, DIFF SI GR (.030 THK) |
CK2 (06) (G80) |
2004-2006 |
01 |
| 009 |
15599631 |
SHIM, DIFF SI GR (.035 THK) |
CK2 (06) (G80) |
2004-2006 |
01 |
| 009 |
15599632 |
SHIM, DIFF SI GR (.040 THK) |
CK2 (06) (G80) |
2004-2006 |
01 |
| 009 |
15599633 |
SHIM, DIFF SI GR (.045 THK) |
CK2 (06) (G80) |
2004-2006 |
01 |
| 010 |
12471390 |
DISC SET, LKG DIFF CLU (INCLS 8) (EATON EDS-29565) |
CK2 (06) (LQ4, G80, JH6) |
2004-2006 |
01 |
| 011 |
14048384 |
GOVERNOR, LKG DIFF (EATON EDS-27811) (INCLS BRKT) |
CK2 (06) (G80) |
2004-2006 |
01 |
| 012 |
14039028 |
BLOCK, LKG DIFF THR (BLUE) (1.594 THK) |
CK2 (G80, JH6) |
2004-2006 |
01 |
| 012 |
14039029 |
BLOCK, LKG DIFF THR (GRAY) (1.598 THK) |
CK2 (06) (LQ4, G80, JH6) |
2004-2006 |
01 |
| 012 |
14039031 |
BLOCK, LKG DIFF THR (YELLOW) (1.610 THK) |
CK2 (06) (LQ4, G80, JH6) |
2004-2006 |
01 |
| 012 |
14039033 |
BLOCK, LKG DIFF THR (BROWN) (1.622 THK) |
CK2 (06) (LQ4, G80, JH6) |
2004-2006 |
01 |
| 012 |
15599672 |
BLOCK, LKG DIFF THR (WHITE) (1.602 THK) |
CK2 (06) (LQ4, G80, JH6) |
2004-2006 |
01 |
| 012 |
15599673 |
BLOCK, LKG DIFF THR (PURPLE) (1.606 THK) |
CK2 (06) (LQ4, G80, JH6) |
2004-2006 |
01 |
| 012 |
15599675 |
BLOCK, LKG DIFF THR (ORANGE) (1.614 THK) |
CK2 (06) (LQ4, G80, JH6) |
2004-2006 |
01 |
| 012 |
15599676 |
BLOCK, LKG DIFF THR (PINK) (1.618 THK) |
CK2 (06) (LQ4, G80, JH6) |
2004-2006 |
01 |
| 013 |
|
GEAR, LKG DIFF SI (LH) (*KIT1) |
|
2004-2005 |
|
| 013 |
|
GEAR, LKG DIFF SI (LH) (*KIT1) |
|
2005-2005 |
|
| 014 |
12471411 |
CAM, LKG DIFF |
CK2 (06) (LQ4, G80, JH6) |
2004-2006 |
01 |
| 015 |
|
WASHER, LKG DIFF CLU DISC THR (PART OF 18) |
|
2004-2005 |
|
| 015 |
|
WASHER, LKG DIFF CLU DISC THR (PART OF 18) |
|
2005-2005 |
|
| 016 |
15599623 |
GUIDE, LKG DIFF CLU DISC (FLANGE SIDE) (PART OF 18) (WIDTH .93 INCH) |
CK2 (G80) |
2004-2006 |
04 |
| 017 |
09412303 |
RETAINER, EXT.SNAP RING M46 DIA SHF (R/AXL EXT RET RING) |
|
2004-2007 |
01 |
| 018 |
12471408 |
DISC SET, LKG DIFF CLU (INCLS 15, 16) (EATON EDS- 29566) |
CK2 (06) (LQ4, G80, JH6) |
2004-2006 |
01 |
| 019 |
12471410 |
DIFFERENTIAL, (INCLS 1-18) (INCLS GEARS) |
CK2 (06) (LQ4, GT4, GT5, G80, JH6) (EXC NYS) |
2004-2006 |
01 |
| 019 |
12471410 |
DIFFERENTIAL, (INCLS 1-18) (INCLS GEARS) (5.510) |
CK2 (06) (LQ4, GT4, GT5, G80, JH6) (EXC NYS) |
2004-2006 |
01 |
| K01 |
12471409 |
GEAR KIT, DIFF SI PINION (INCLS 6, 7, 13) |
CK2 (G80) |
2004-2006 |
01 |
| K01 |
94664864 |
GEAR KIT, DIFF SI PINION (INCLS 6, 7, 13) |
C157, 159 (06) (LM7, GT4, JH2, P96) (EXPORT) |
2005-2005 |
01 |
